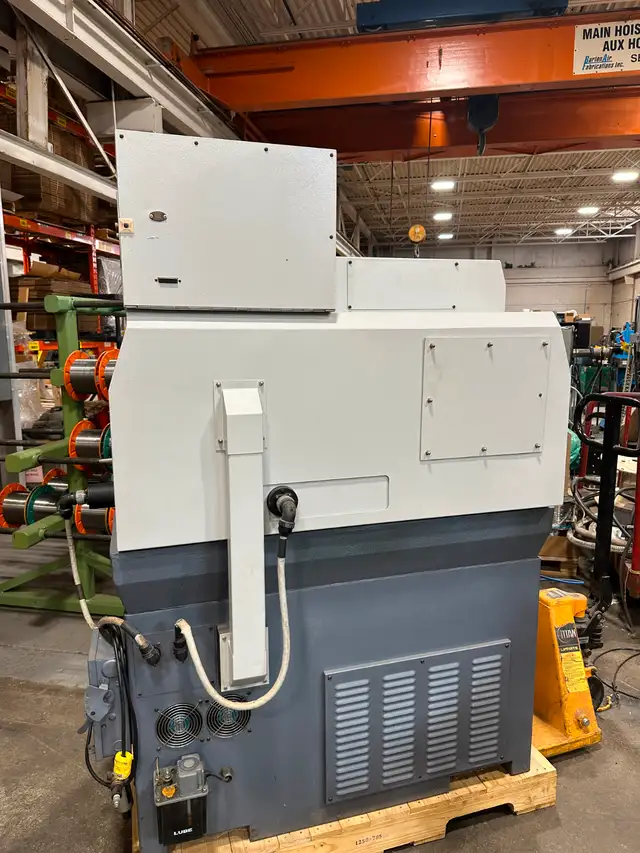

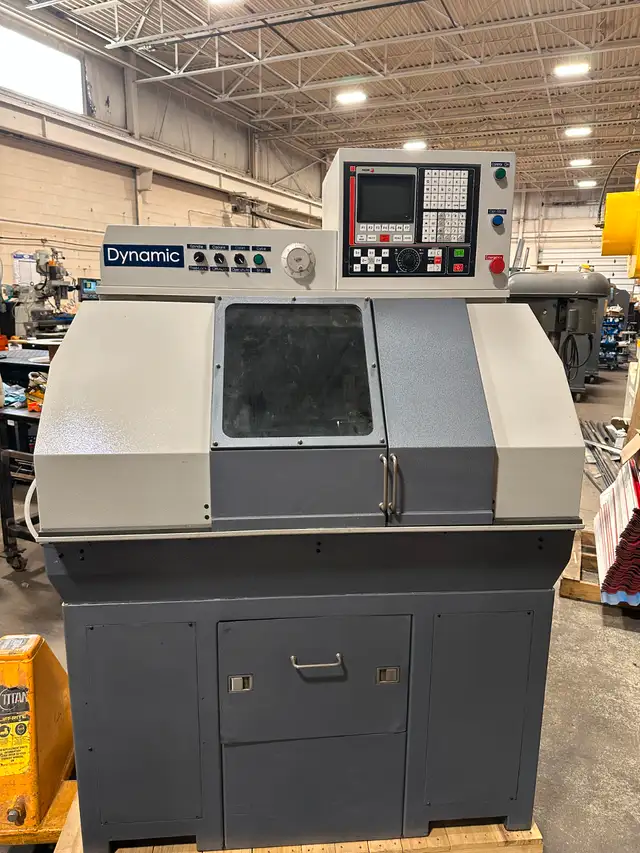

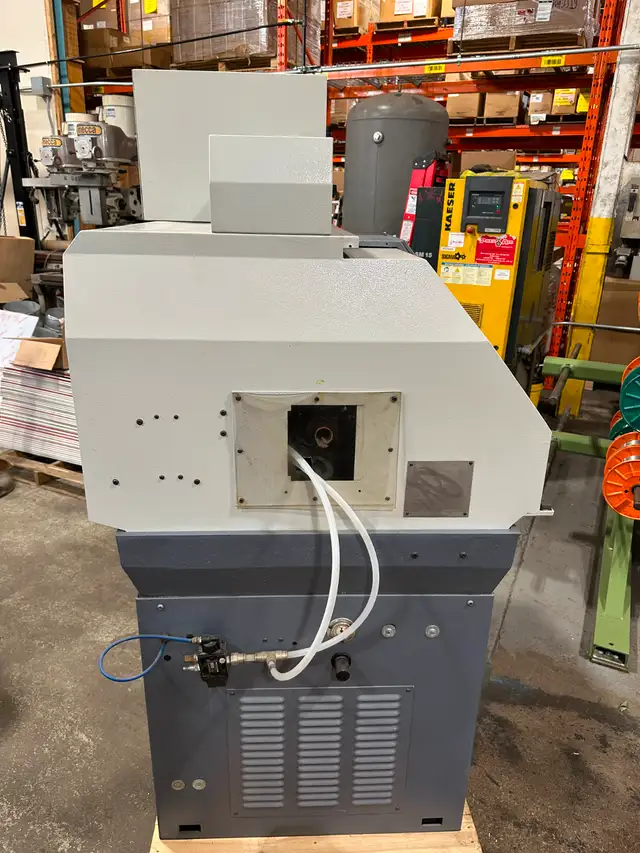

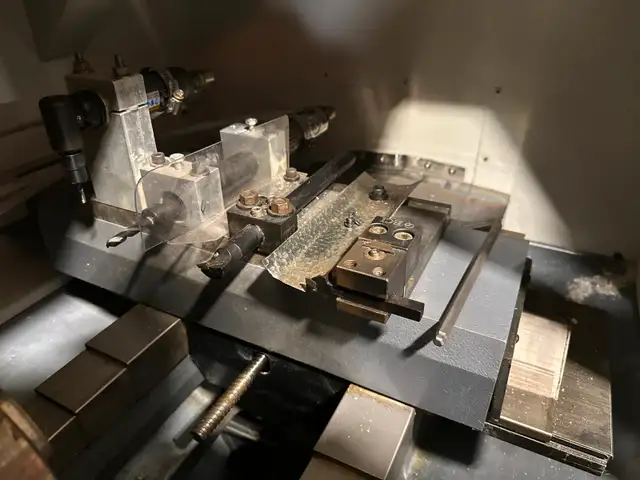

2001 DYNAMIC COMPACT GT27 LATHE WITH FAGOR CNC CONTROLS

MANUFACTURER: DYNAMIC
MODEL: COMPACT GT27
S/N: 000603
MFG DATE: 2001

SUPPLY VOLTAGE: 240V 60HZ 3PH
LARGEST MOTOR: 13.6A
FULL LOAD CURRENT: 17A
SCCR: 20KA

GENERAL SPECS
X AXIS TRAVEL (MAX): 12.00""
Z AXIS TRAVEL (MAX): 8.0""
MAIN SPINDLE MOTOR: 5 HP
RANGE OF SPINDLE SPEEDS: 0 TO 4,500 RPM
SPINDLE BORE: 1.275""
MAXIMUM BAR SIZE: 1 1/16""

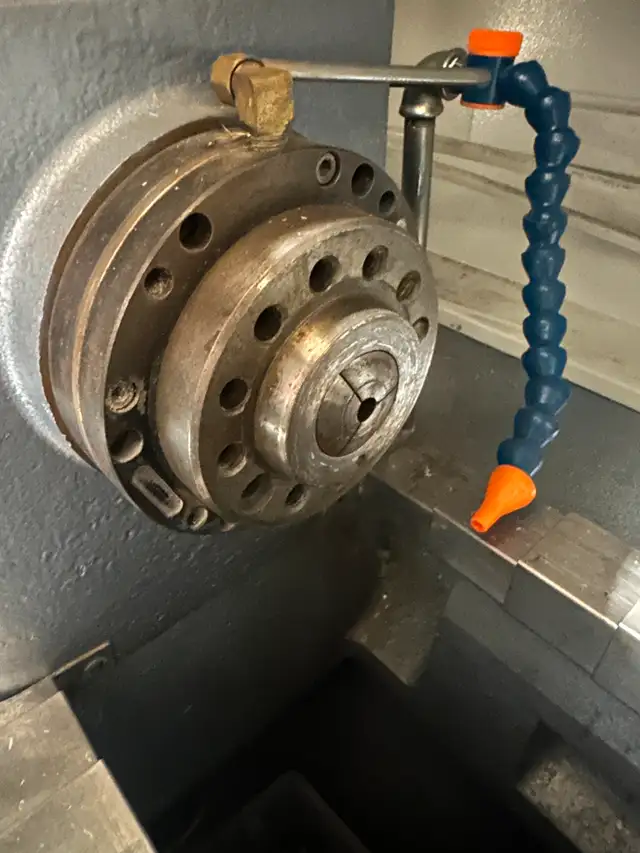

SPINDLE TAPER: 5-C
X & Z AXIS THRUST: 600 LBS.
INTERPOLATED FEED RATE (MAX): 200 IPM
X & Z AXIS TRAVERSE RATE (MAX): 600 IPM

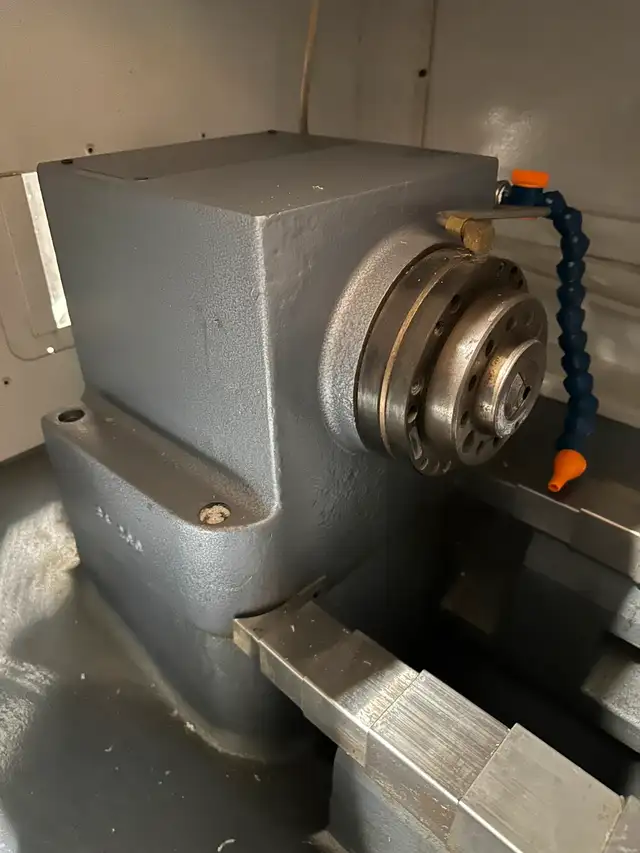

SPINDLE NOSE: A2-3

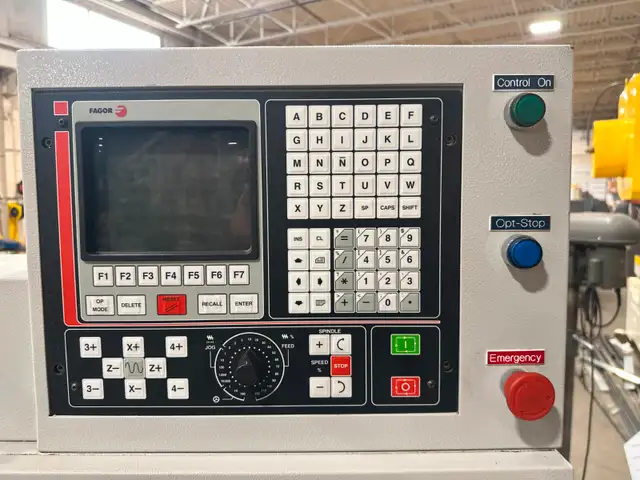

CNC CONTROL: FAGOR 8025 CNC

WEIGHT: 2800 LBS
MACHINE DIMENSIONS: 48'' X 36'' X 70''
