JVC STEREO RECEIVER R-X80 / RARE JAPAN 70 WATTS /CHANNEL RMS - MC & MM CARTRIDGE SELECTOR

Excellent Condition
Here's A 1982 JVC Receiver with the best of both, the digital world and analog quality and power

This unit has a phono preamp, so it will accept both moving magnet (MM) and moving coil (MMC)
Phono cartridges. Switchable right on the front panel.
Built in SEA 5 Band Equalizer, accurate tuner with 8 presets, and excellent sensitivity.

Specs:

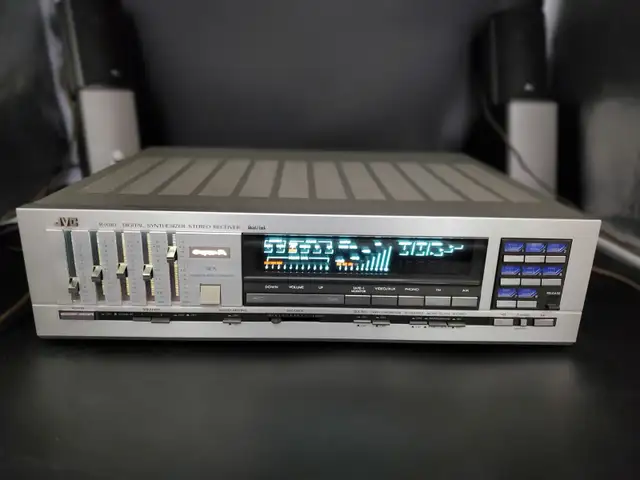

The tuner section uses a quartz-PLL, digital frequency-synthesized tuning with eight FM and eight AM presets. The R-X80 employs a high-gain equalizer that accepts both moving-magnet and moving-coil cartridges. Other features are motor-assisted volume control and large fluorescent displays for power output, tuner frequency, signal level, stereo reception, and source selection. A wired remote-control unit is supplied, and it allows you to control program source selection, select the tape 1 monitor loop, adjust volume, and tune up/down for AM or FM stations.

Manufacturer's Specifications:
FM Tuner Section
Usable Sensitivity: Mono, 10.3 dBf (1.8 µV/300 ohms).
50-dB Quieting Sensitivity: Mono, 14.8 dBf (3.0 µV/300 ohms); stereo, 37.2 dBf (40 µV/300 ohms).
S/N: Mono, 83 dB; stereo, 74 dB.
THD: Mono, 0.1% at 1 kHz; stereo, 0.15% at 1 kHz.
Frequency Response: 30 Hz to 15 kHz, 0.5, -0.8 dB.
Alternate Channel Selectivity: 75 dB.
Capture Ratio: 1.5 dB. Image Rejection: 80 dB.
I.f. Rejection: 100 dB. Stereo Separation: 45 dB at 1 kHz.
AM Tuner Section
Sensitivity: 50 µV/meter.
Image Rejection: 50 dB.
If. Rejection: 60 dB.
Distortion: 0.5%. S/N: 50 dB.
Amplifier Section Power Output: 70 watts per channel, 8-ohm loads, both channels driven, 20 Hz to 20 kHz.
Rated THD: 0.008%. SMPTE IM: 0.008%.
Damping Factor: 45 at 8 ohms, kHz.
Sensitivity for Rated Output: High level, 240 mV; MM, 2.5 mV; MC, 250 µV.
Frequency Response: Phono, RIAA ±0.5 dB; high level, 5 Hz to 50 kHz, 0,-1.0 dB.
S/N: High level, 75 dB; MM, 80 dB.
Graphic Equalizer Center Frequencies: 63 Hz, 250 Hz, 1 kHz, 4 kHz, and 16 kHz.
Graphic Equalizer Control Range: ± 12 dB.
Loudness Control: 7 dB at 50 Hz, 4 dB at 10 kHz, at -40 dB volume control setting.
General Specifications:
Power Requirements: 120 V a.c., 60 Hz.
Dimensions: 17 1/8 in. (43.5 cm) W x 4 3/8 in. (11.7 cm) H x 15-11/16 in. (39.8 cm) D.
Tuning range: FM, MW
Power output: 70 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.008%
Input sensitivity: 0.25mV (MC), 2.5mV (MM), 240mV (line)
Signal to noise ratio: 77dB (MM), 98dB (line)
Dimensions: 435 x 370 x 117mm
Weight: 9.5kg
Year: 1982

PLEASE SEE THE PICTURES FOR A DETAILED DESCRIPTION
