Product Overview:
Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used inch thread.
The design of this new lathe is a great innovation, it solves many disadvantages of other lathes in the past, High precision concentricity can help you better complete the shaft and tube processing! choose it you will not regret!!

Product Parameters:
Model: WM210V
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 1100W(1.5HP)
Length of center: 31.50"(800mm)
Swing Over Bed: 8.27"(210mm)
Concentricity tolerance: 0.03mm-0.05mm
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: Right side:1.50"(38mm)
Left side:1.26"(32mm)
Max clamping diameter of right chuck: 4.92"(125mm)
Max clamping diameter of left chuck: 3.54"(90mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Inch screw thread
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.3mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.1mm-0.2mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)

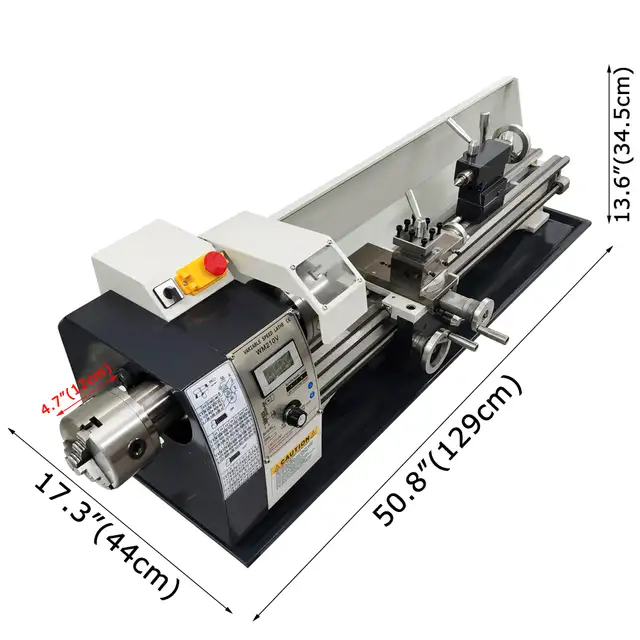

Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm)
Net weight/Gross weight: 172.0LB(78kg)/220.5LB(100kg)

Product Features & Advantages:

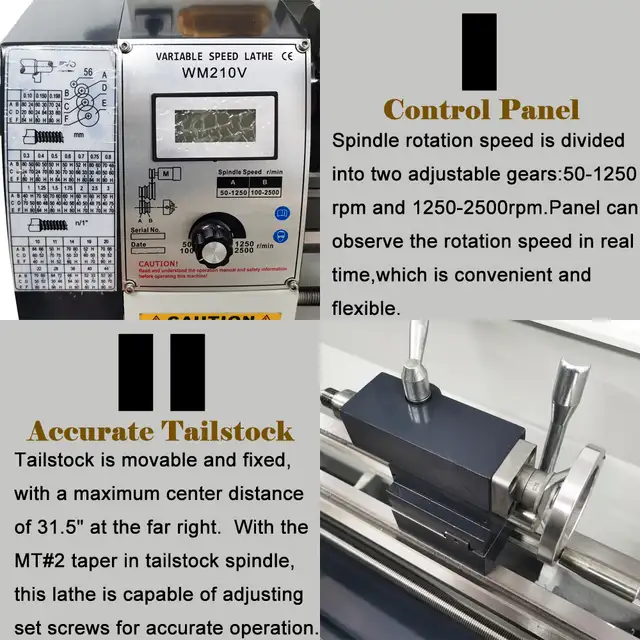

1.Control Panel
Sinple rotation speed is divided into two adjustable gears:50-1250rmp and 1250-25800rmp. Panel can observe the rotation speed in real time,which is convenient and flexible.
2.Accurate Tailstock
Tailstock is movable and fixed, with a maximum center diatance of 31.5 inch at the far right. With the MT#2 taper in tailstock spindle, this lahte is capble of adjuting set screws for accurate operation.

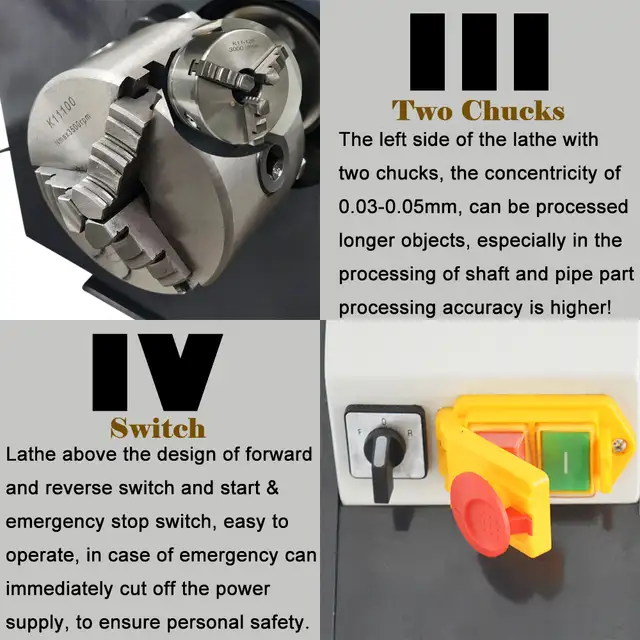

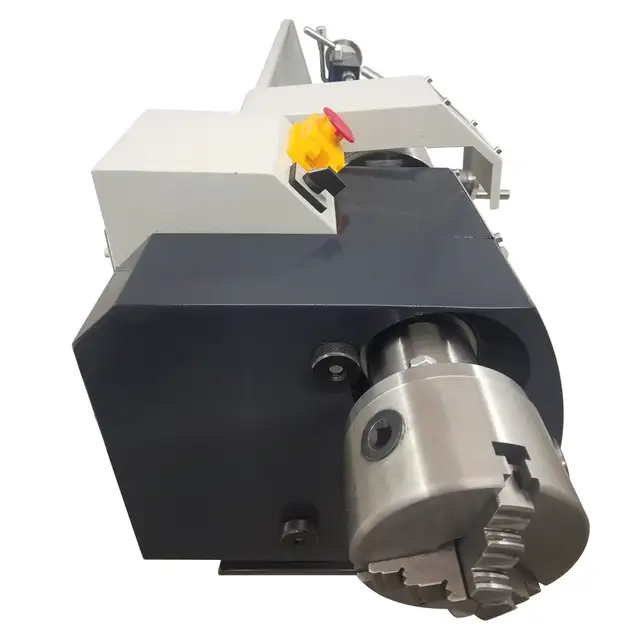

3.Two Chucks
The left side of the lathe with two chucks, the concentricity of 0.03-0.05mm,can be processed longer objects, especially in the processing of shaft and pipe part processing accuracy is higher.
4.Switch
Lathe above the design of forward and reverse switch and start & emergency stop switch, easy to operate, in case of emergency can immediately cut off the power supply, to ensure personal safety.

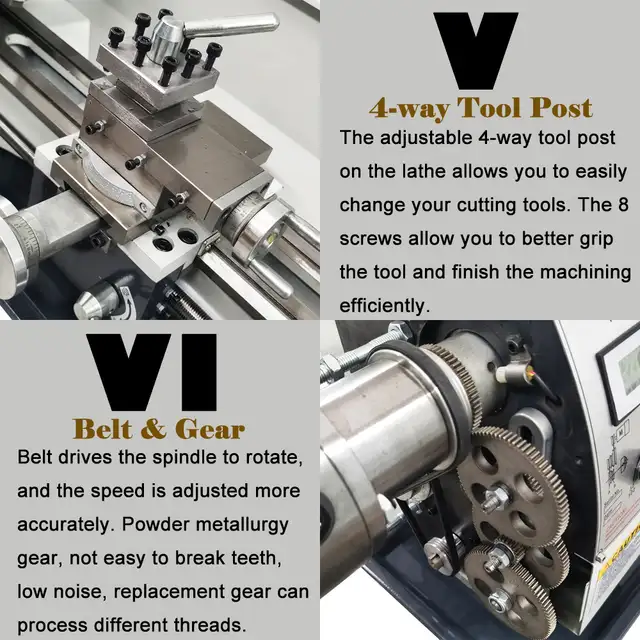

5.4-way Tool Post
The adjustable 4-way tool post on the lathe allows you to easily change your cutting tools. The 8 screws allow you to better grip the tool and finish the maching effciently.
6.Belt & Gear
Belt drives the spindle to rotate, and the speed is adjusted more accurately. Powder metallurgy gear, not easy to break teeth, low noise, replacement gear and process different threads.

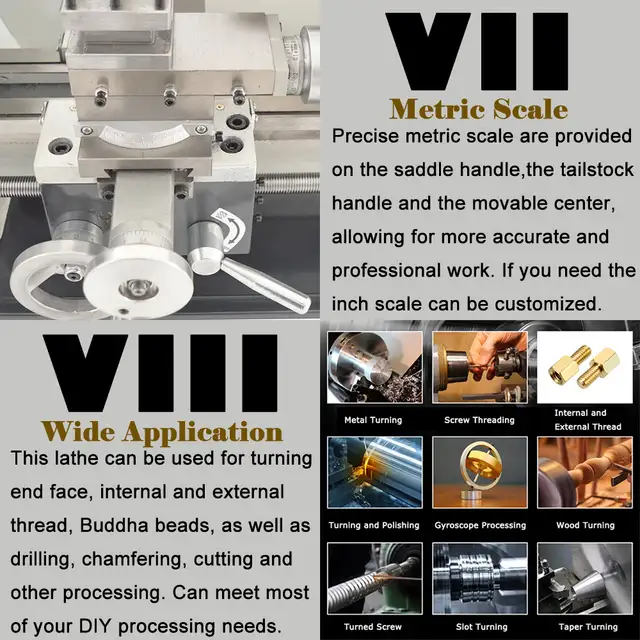

7.Metric Scale
Precise metric scale are provided in the saddle handle, the tailstock handle and the movable center,allowing for more accurate and professional work. If you need the inch scale can be customized.
8.Wide Application
This lathe can be used for turning end face, internal and external thread, Buddha beads, as well as drilling, chamfering,cutting and other processing. Can meet most of your DIY processing needs.

- High quality cast iron bed after high frequency quenching process and precision grinding
- The spindle rotation speed is divided into two levels in the range of 50-2500rpm, which can be adjusted continuously
- Brushless motor has strong power, low noise and saves energy consumption
- High precision spindle, high quality bearing, high accuracy, wear resistance, long life
- With one button start and stop switch and forward and reverse switch

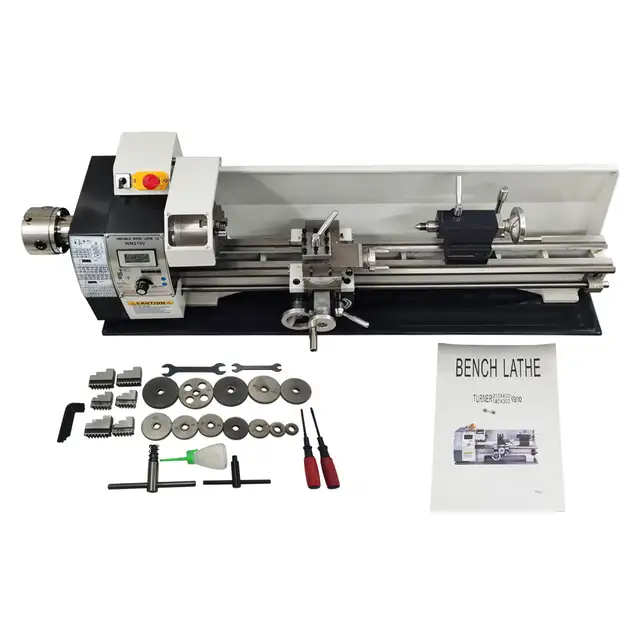

Item Included: 028348

WM210V lathe *1
Base oil pan *1
English manual *1
Oil can *1
Hexagon wrench *5
Fork wrench *2
The screwdriver *2
Chuck jaw *6
Chuck spanner *2
Metal gear *12(24/30/40/48/50/52/60/60/66/70/72/75)
Fuse *1
