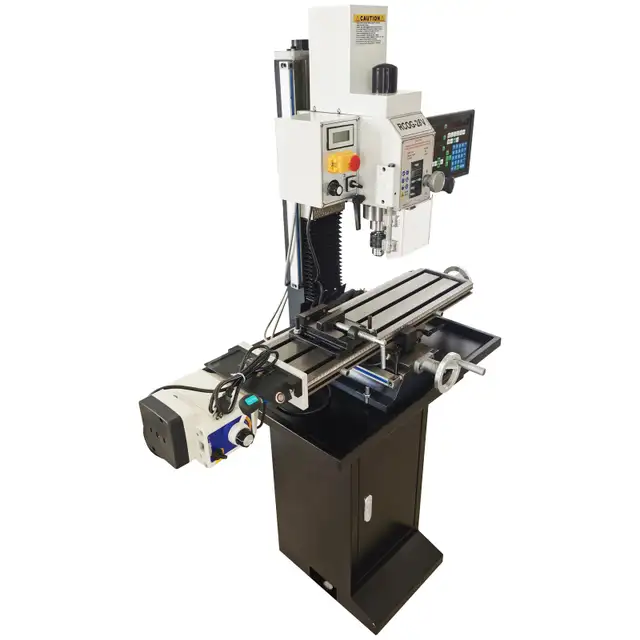

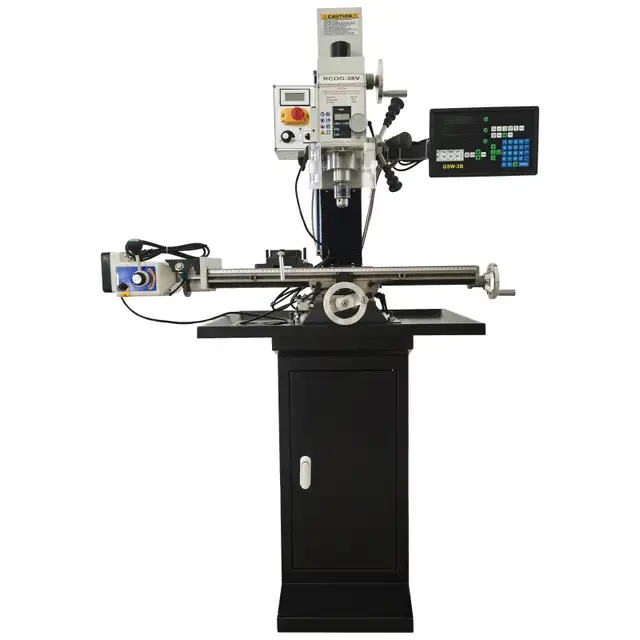

Product Overview
RCOG-28V multi-functional drilling and milling machine has rich functions, can meet the metal, wood, plastic, Buddha beads and other finishing, all copper brushless motor, strong power, simple operation, durable, high processing accuracy, is the home DIY processing of various parts of the necessary machine.

Milling Machine Parameters
Model: RCOG-28V
Voltage: 110V
Motor power: 1300W brushless motor
X axis stroke: 18.9"(480mm)
Y axis stroke: 6.9"(175mm)
Z axis stroke: 11"(280mm)
Spindle incline Angle: ±90°(The nose can actually rotate 360 degrees)
Max. drilling diameter: 1.1"(28mm)
Max. Face screening capacity: 2.5"(63mm)
Max. vertical milling capacity: 0.79"(20mm)
Distance from spindle to table: 13.8"(350mm)
Spindle taper: R8
Spindle stroke: 2"(52mm)
The Range of spindle speeds: 20-2250rpm

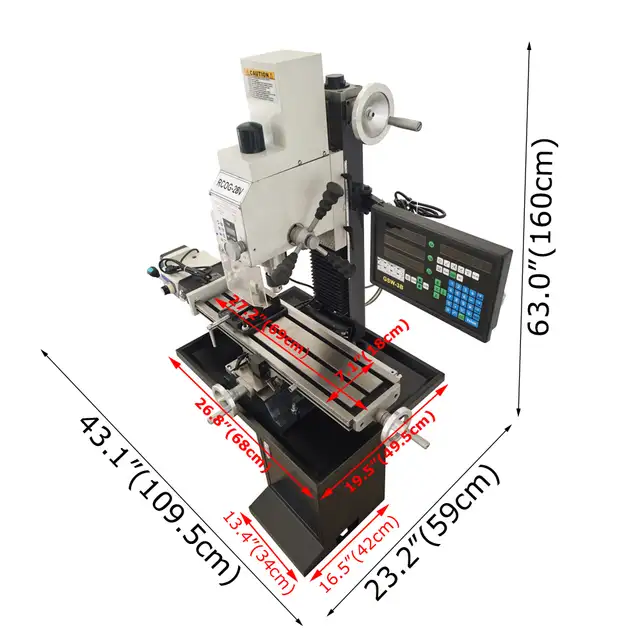

Table size: 27.5"*7.1"(700mm*180mm)
T groove width: 0.47"(12mm)
Net weight/Gross weight: 320.8LB(145.5kg)/386.9LB(175.5kg)

Product Features & Advantages
Bench Clamp
Workbench is equipped with a bench clamp, the bench clamp is fixed on the workbench, can be used to clamp a variety of workpiece processing, clamping effect is good, save time and effort.

Brushless Motor
Motor power up to 1300W!! Adopt high quality brushless motor, with overload and overheating protection function; Belt drive, high efficiency, low energy consumption, low noise; Long service life.

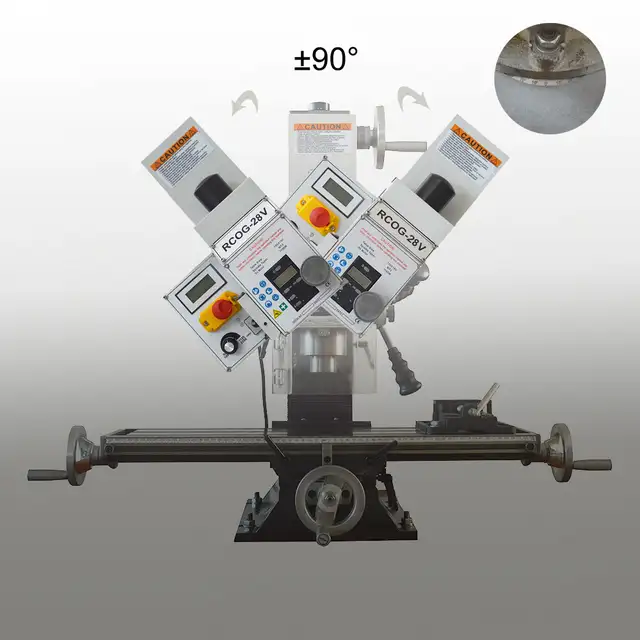

Machine Head Tilt
The head of the machine can be tilted to the left and to the right by loosening the fixing screws of the head of the machine. The tilt Angle range is up to 90°, which is easy for drilling and milling special angles.

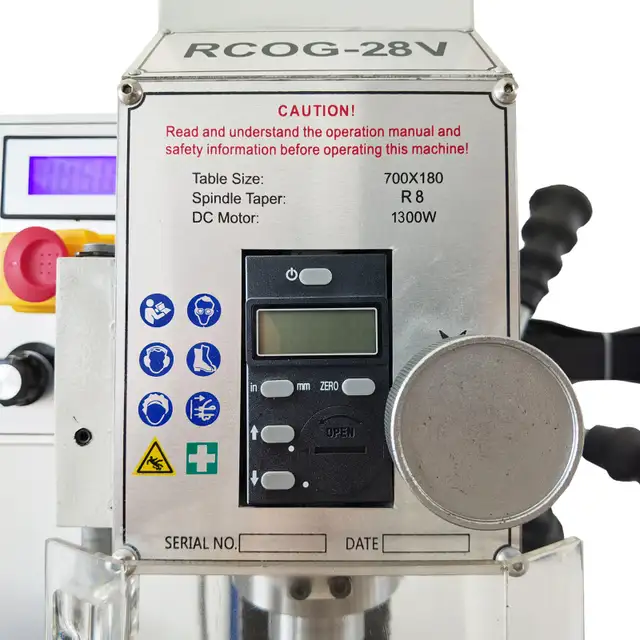

LCD
The rotating speed display and the drilling and milling depth display are all high-definition LCD screens, which are clearer and richer than the previous digital tube display and convenient to operate.

Spindle Feed Handle
Spindle micro feed locking handle, convenient manual control of drilling and milling depth, release the hand can automatically return to the starting position.

Drain Hole
The processing table is designed behind the drainage hole, through the connection of the hose can be discharged at any time in the
process of cooling liquid and excess oil.

Axis X Power Feed
Equipped with axis X power feed, can achieve positive and reverse reversing and stepless speed regulation, running more stable, less noise; Greatly improve the machining accuracy and efficiency.

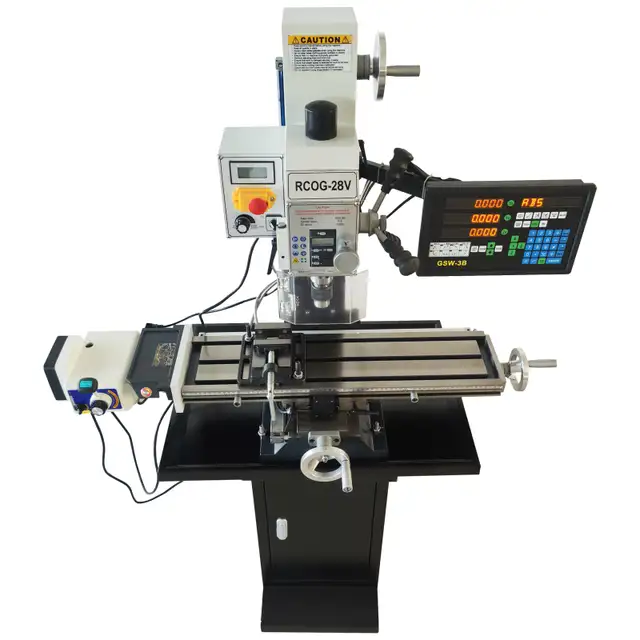

Grating Ruler
Equipped with a three-axis digital display grating ruler, can realize the Angle or length measurement and control; The accuracy reaches 0.005mm, greatly improving work efficiency and machining accuracy.

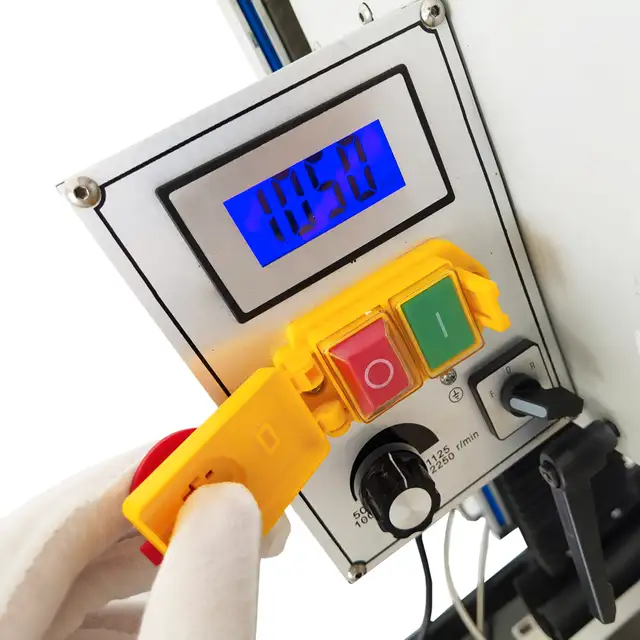

Safety Switch
With one key start/stop protection switch and positive/negative switch, the spindle speed can be adjusted within the range of 20-2250rpm, easy to operate; Waterproof switch, safer.

Wide Application
With drilling, plane milling, milling groove, chamfering and other functions, suitable for all kinds of metal, wood and other materials fine processing, widely used in all walks of life DIY.

- Powerful function: This is a multi-functional drilling and milling machine, can complete drilling and milling operations. Also can be used for precision parts processing, sample processing and model.
- Three axis grating ruler: Three axis grating ruler includes zero clear, preset, inch/metric display, relative/absolute switch, automatic sub-centers, calculator, power failure memory, RI and other functions, greatly improve the processing efficiency and accuracy!
- All metal: It USES an integrated spindle and brass gear, which makes it not only precise but also durable.
- Variable-Speed: Weather you need high speed or lower speed spindle operations this machine can handle it. Boasting a 20-2250 RPM spindle speed for the extreme precision your project needs.
- It is important to note that this lathe has only a metric scale.

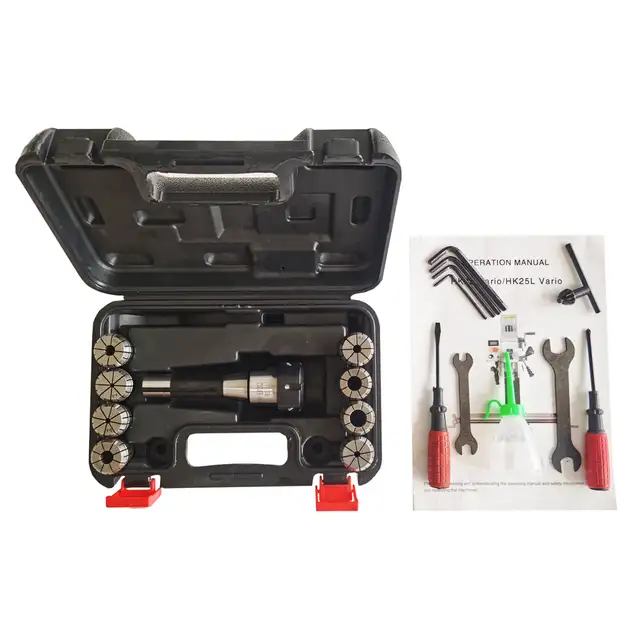

Item Included: 028370
Drilling and milling machine *1 Axis X power feed *1 Grating ruler *1
Milling chuck set *1 Support base *1 Drill chuck *1
Drill chuck retaining pin *1 Bench clamp *1 Fork wrench *2
Drill chuck wrench *1 Oil can *1 Cross screwdriver *1
Straight screwdriver *1 Hexagon wrench *4 English manual *1
