Item number: 025302
-

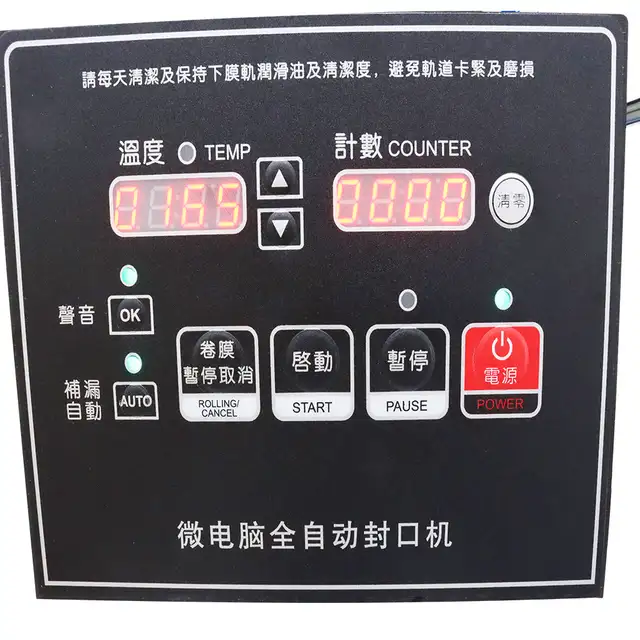

The control panel of this product is marked in both Chinese and English.
-
Special designs
1:When deal with cups of different depth, it could adjust itself automatically.
2:Automatic detection: The circuit board can detect the location of the error and point it out on screen.
-
Steps
1st put the cup into the cup mold.
2nd it will be retrieved automatically(or manually) and sealed.
3rd the upper mold will press down and cut the membrane.
4th the cup mold comes out.
5th the membrane retrieving rolls start turning.
6th get your sealed cup.
-
Other details
Before operation:
1: Set the membrane as shown or the sealing will not be tight.And make the electric eye target its position.
2: Press POWER, the cup mold will come out and the sealing part starts to heating.
3: AFTER 5-7 MINS, when the sealing part's heating process is over the heating light will be off and it means it's ready for work.
4: The membrane must match the material of the cup. For example. PP membrane for PP-covered cups.(The heating temperature is default 212-446°F.
5: When work is done, PRESS THE POWER BUTTON BEFORE PULL OUT THE PLUG.
6: DO NOT PUT YOUR HAND INTO THE MACHINE AT ANY TIME!!
7: Make sure press the power button after you insert the plug, when the screen is on, it means the sealer is standby.
8: Use ▲ and ▼ to set numbers. Press the Counter button and it will clear all the number of cups.
9: Left window for sealed-cup numbers and the right for heating temperature.
-
Routine maintenance and repairs
1:Check whether the upper mold heating plate is clean every day to prevent foreign matter from sticking to the upper mold, causing poor corrosion and poor sealing. After the heating plate is cooled, wipe it with a warm and damp cloth. Note: Turn off the power before cleaning and pay attention to high temperature.
2:Clean the working platform every day, check whether the working platform and track are lubricated smoothly, and add lubricating oil in time.
3:The lower die cavity is kept clean to prevent dirt from coming into contact with the upper die. Keep the power supply in and out or the microswitch clean.
-

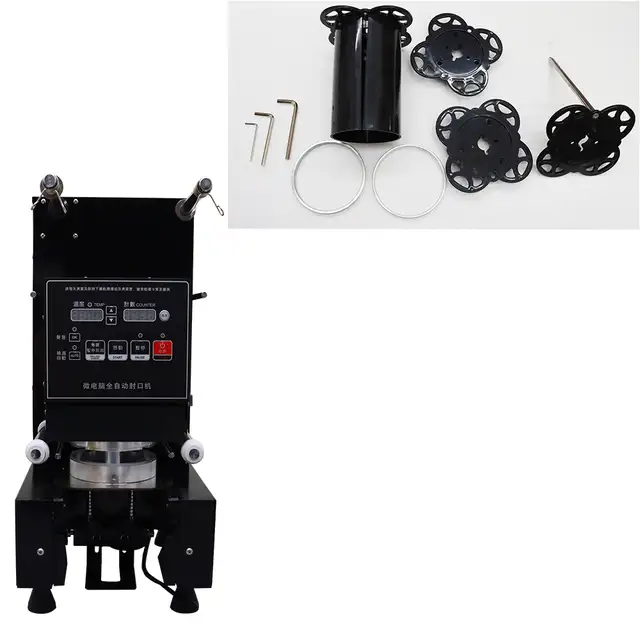

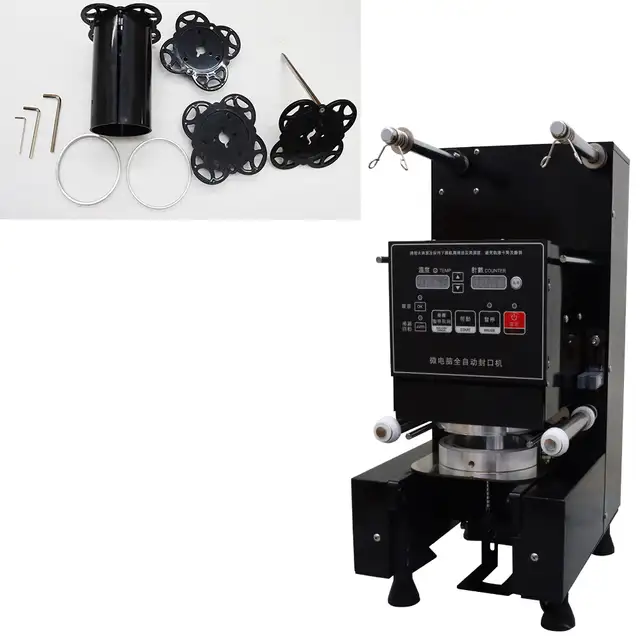

Item included(025302):

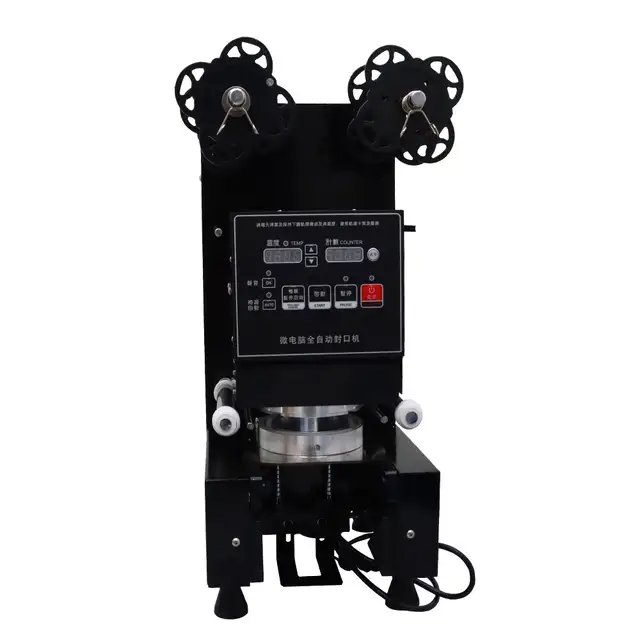

1*Fully Automatic Cup Sealing Machine 110V
-
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
