Item number: 028201
-
Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.

Parameters:

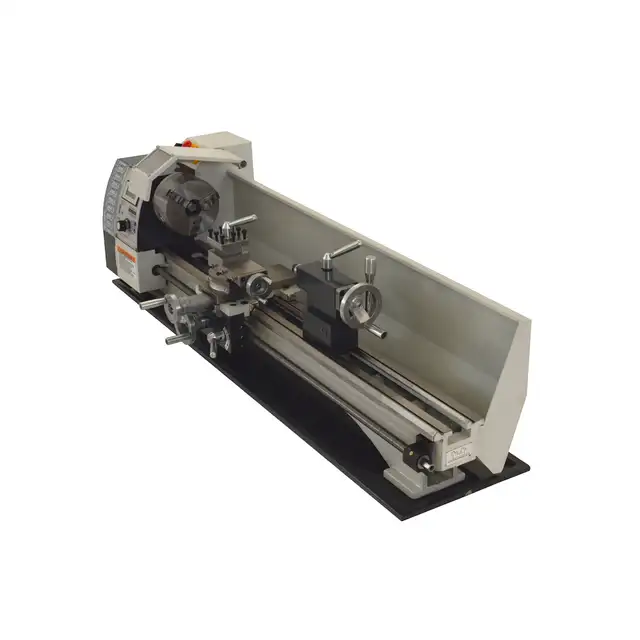

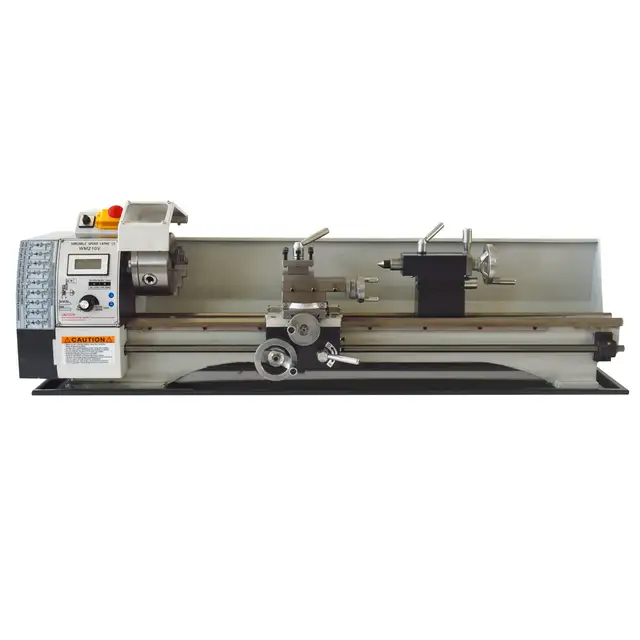

Model: WM210V
Motor: 110V brushless motor
Voltage: AC110V 50/60Hz
Power: 900W
Length of center: 31.5"(800mm)
Swing Over Bed: 8.3"(210mm)

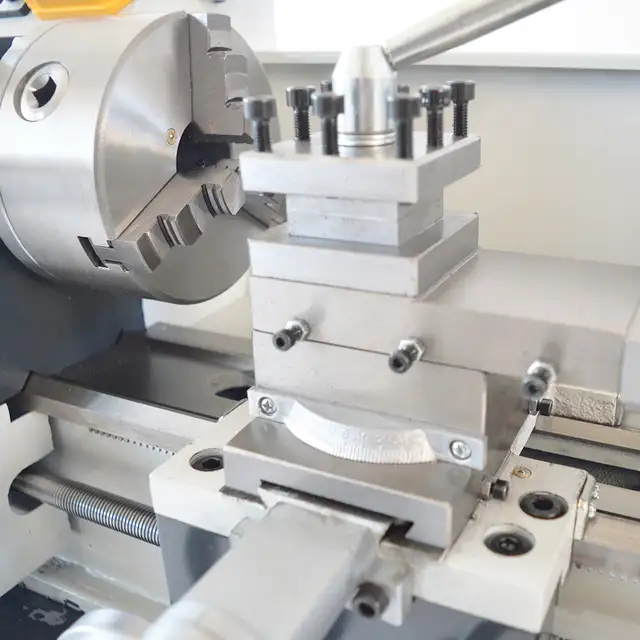

Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.50"(38mm)
Diameter of chuck: 4.92"(125mm)
Spindle taper: MT5

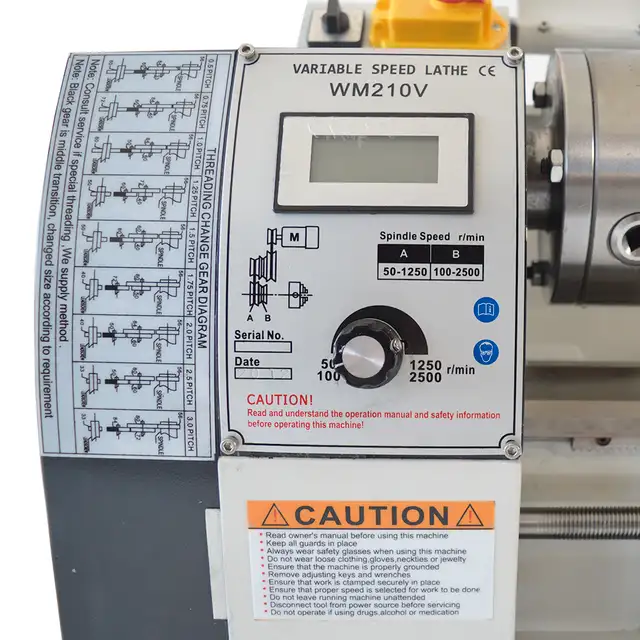

Spindle rotation speed: 50-2500rpm
Range of metric threads: 0.5-3mm
Precision of the spindle: 0.01mm
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.8"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Tail frame taper: MT2

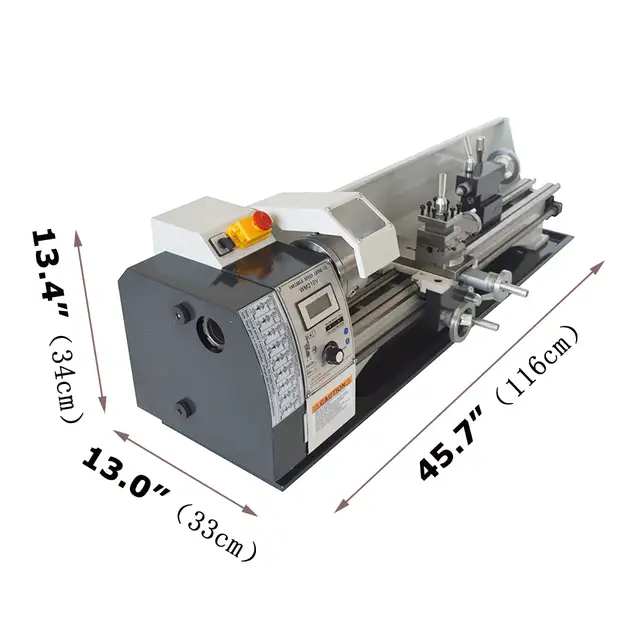

Lathe sizes: 45.7"*13.0"*13.4"(116*33*34cm)
Gross weight: 180.7lb(82kg)

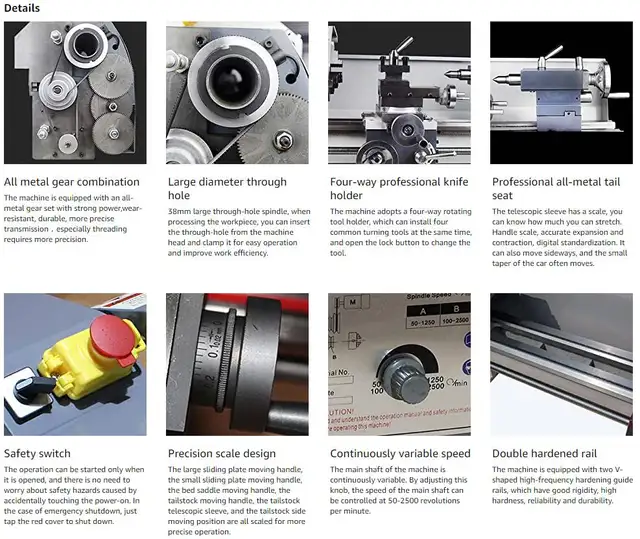

Product Features & Advantages
- High quality cast iron bed after high frequency quenching process and precision grinding
- The spindle rotation speed is divided into two levels in the range of 50-2500rpm, which can be adjusted continuously
- Brushless motor has strong power, low noise and saves energy consumption
- High precision spindle, high quality bearing, high accuracy, wear resistance, long life
- With one button start and stop switch and forward and reverse switch

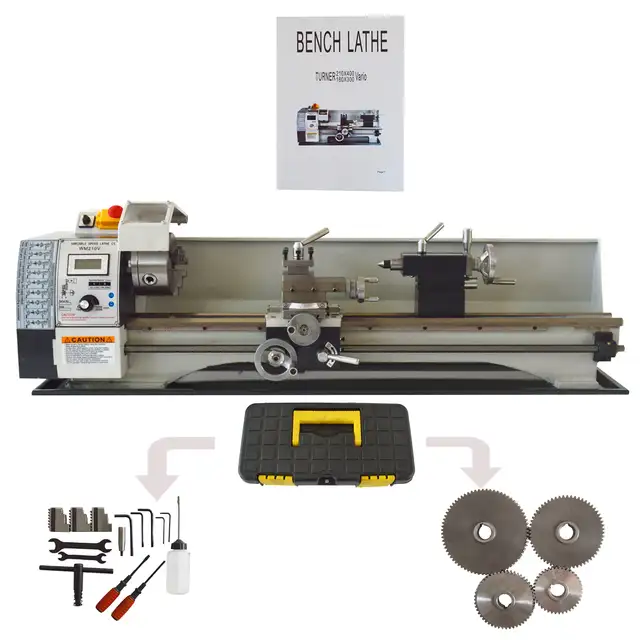

Item included(028201):
WM210V lathe * 1
Chuck jaw * 3

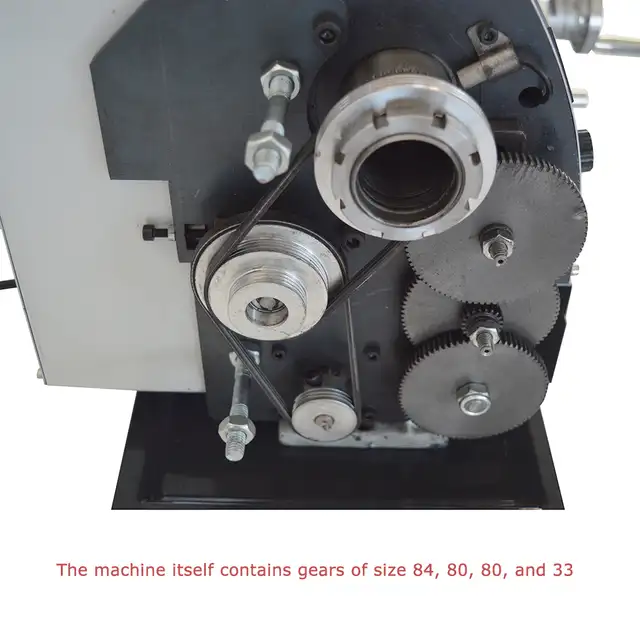

Gear *4 (40/50/60/72)
The screwdriver * 2
Open spanner *2
Hexagon wrench *5
Oil can * 1
The fuse * 1
Chuck spanner *1
English instruction manual *1

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
