Item number: 056629
-
Product overview:

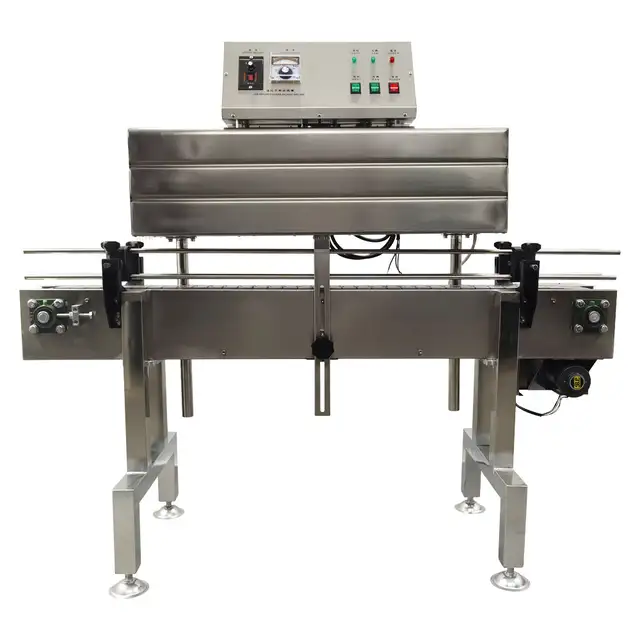

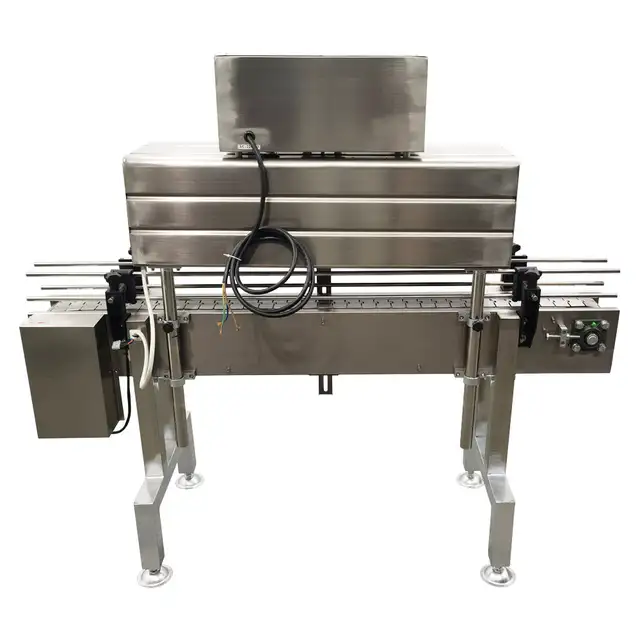

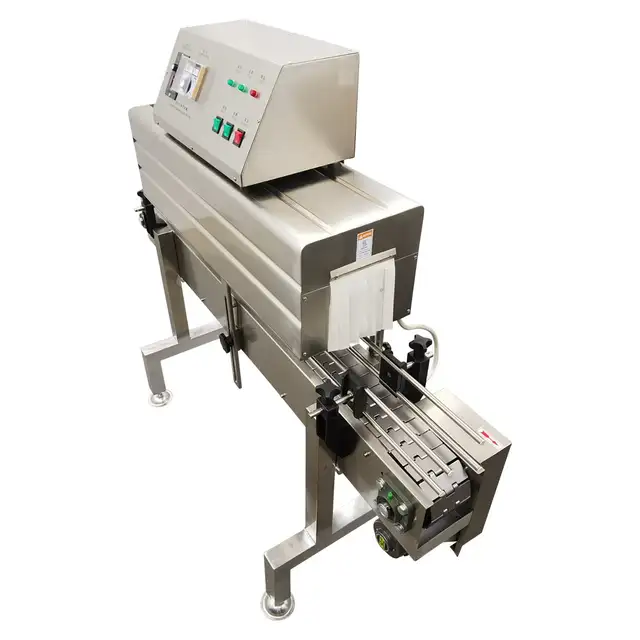

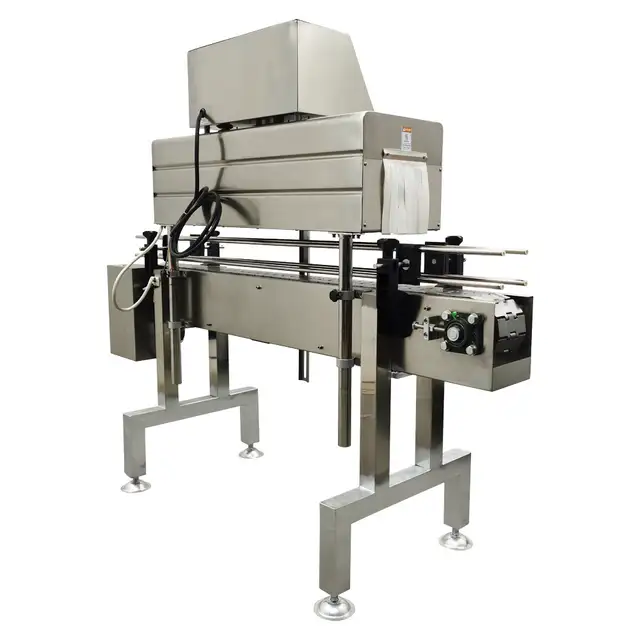

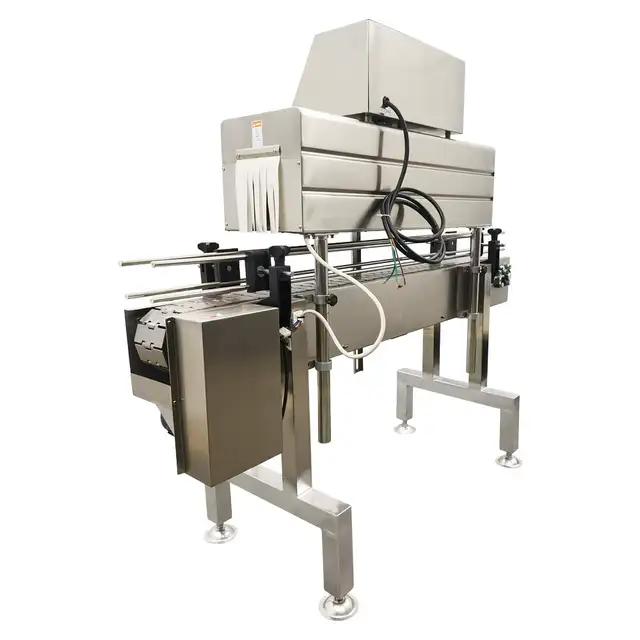

GP-405 bottle mouth label thermal shrink packaging machine adopts electric heating, mainly for bottle, can, barrel product label shrink, can shrink the bottle mouth, cap, applicable to food, drugs, cosmetics, pesticides and other industries of glass bottles, plastic bottles, paper cups and other containers label shrink.
Product parameter
Voltage: AC220V 50/60Hz
Heating power: 9.4HP(7KW)
Phase number: Three(Three fire wires need to be connected)  phase number: Three(three fire wires need to be connected)

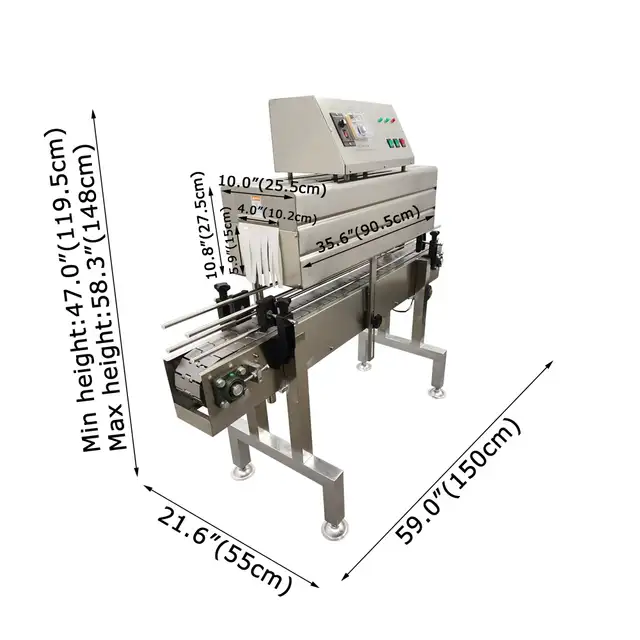

Suitable for max bottle diameter: 4.0"(10.2cm)
Suitable for bottle max height: 13.78"(35cm)
Heating temperature: 0-464 Degrees Fahrenheit (0-240 Degrees Centigrade)
Suitable shrink film: PVC/PP/POF
Machine material: 201 stainless steel
Conveyor speed: 0-32.8ft/min(0-10m/min)
Max load of conveyor belt: 17.6LBS(8kg)
Package size: 63.0"*23.6"*54.7"(160cm*60cm*139cm)
Net weight/Gross weight: 147.7LBS(67kg)/260.1LBS(118kg)  net weight/ gross weight: 147.7lbs (67kg)/ 260.1kg

Product Feature

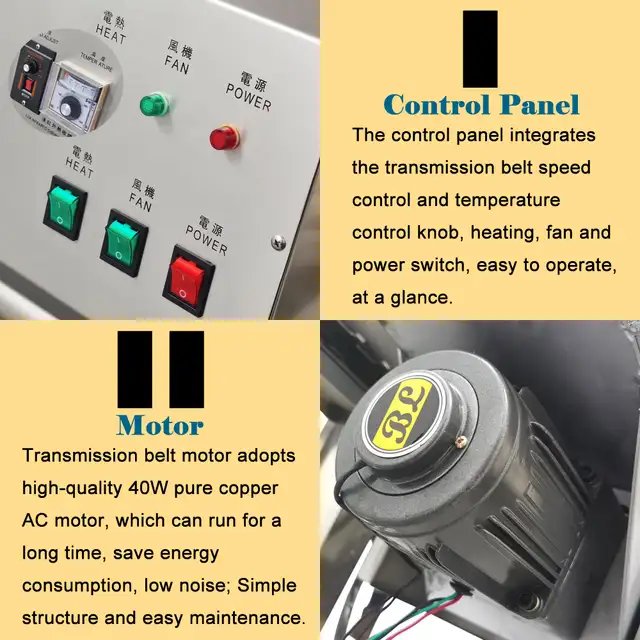

1.Control Panel
The control panel integrates the transmission belt speed control and temperature control knob, heating, fan and power switch, easy to operate, at a glance.
2.Motor
Transmission belt motor adopts high-quality 40W pure copper AC motor, which can run for a long time, dave energy consumption, low noise; Simple structure and easy maintenance.

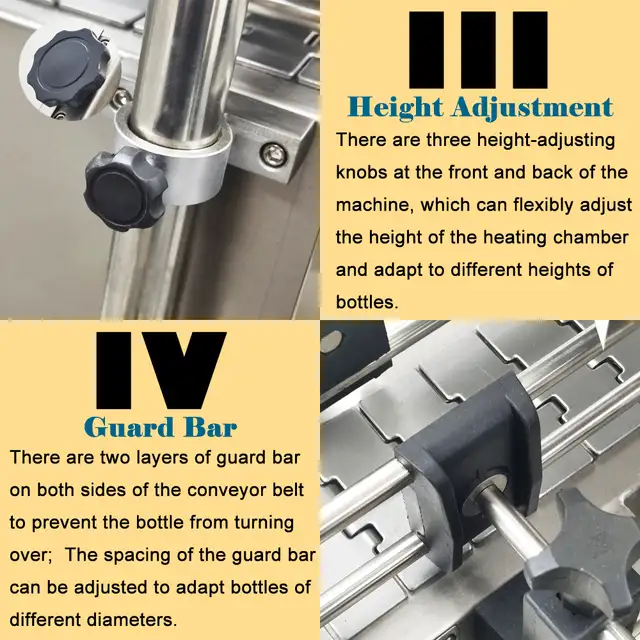

3.Height Adjustable
There are three height-adjusting knobs at the front and back of the machine, which can flexibly adjust the height of the heating champer and adapt to different heights of bottles.
4.Guard Bar
There are two layers of guard bar on both sides of the conveyor belt to prevent the bottle from turning over; The spacing of the guard bar can be adjusted to adapt bottles of different diameters.

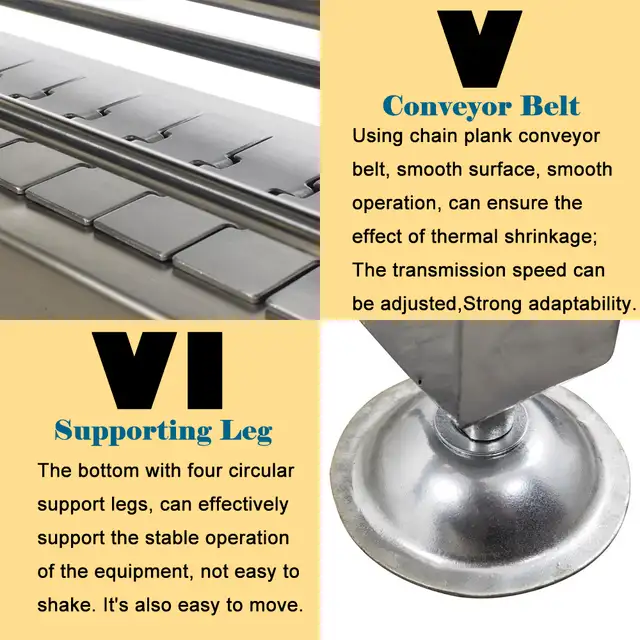

5.Conveyor Belt
Using chain plank conveyor belt,smooth durface, smooth operation, can ensure the effect of thermal shrinkage; The transmission speed can be adjusted, strong adaptability.
6.Supporting Leg
The bottom with four circular support legs, can effectively support the stable operation of the equipment, not easy to shake. It's also easy to move.

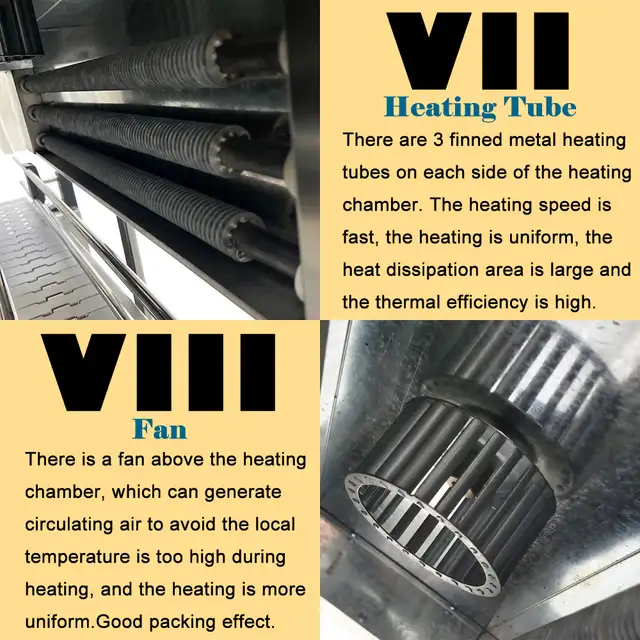

7.Heating Tube
There are 3 finned metal heating tubes on each side of the heating chamber. The heating speed is fast , the heating is uniform, the heat dissipation area is large and the thermal efficiency is high.
8.Fan
There is a fan above the heating chamber, which can generate circulating air to avoid the local temperature is too high during heating, and the heating is more uniform. Good packing effect.

Product Advantage
- The conveyor belt adopts continuously variable speed, and the transmission speed can be adjusted within a certain range to adapt to different processing needs.
- The shell of the machine is made of 201 stainless steel, light weight, not easy to deform, smooth and beautiful surface, easy to clean.
- The combination of high precision temperature control meter and solid state regulator can save electricity effectively.
- Locally adjust the temperature of the label contraction position to make the label surface smooth without deformation.
- Small floor area, can work continuously for a long time; Simple structure and easy maintenance.

Item include: 056629
Bottle Label Thermal Shrink Machine *1
English Manual *1
