Item number: 056824
-
Product Overview
The clamping machine is a kind of hydraulic equipment used for clamping pipe assembly, the supporting metal joint through the clamping machine mold to exert shrinkage force, the metal joint firmly clamping in the supporting construction machinery with high pressure oil pipe or car brake pipe, oil pipe, air conditioning pipe, power pipe. It is suitable for all kinds of mechanical high and low pressure oil pipe, gas pipe, water pipe, cable joint, automobile air conditioning pipe, automobile power steering pipe, oil pipe, gasoline supply oil pipe, as well as construction accessories, daily hot water pipe, widely used in vehicles, construction machinery, hydraulic machinery, welding and cutting equipment and other industries.

Product Parameters
Voltage: AC220V

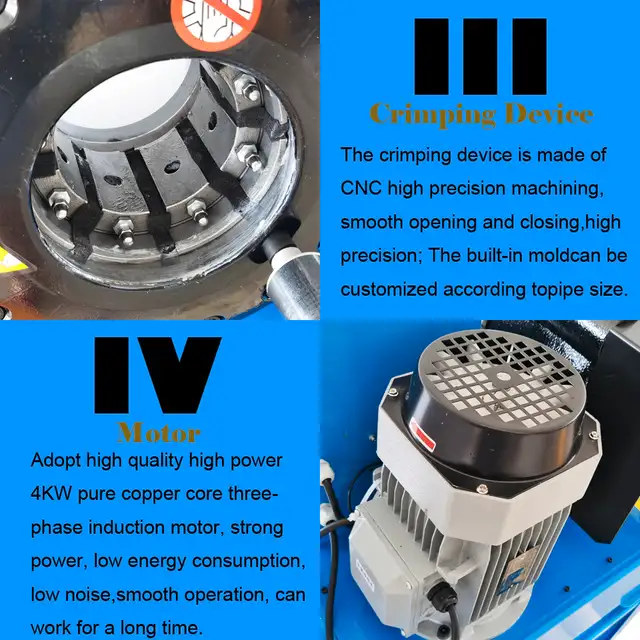

Motor power: 5.4HP(4KW)
Phase number: Three
Crimp range: 0.55"-2.72"(14mm-69mm)
Max crimping range: 0.12"-3.42"(3mm-87mm)[Need custom dies]
Max opening without dies: 5.51"(140mm)
Crimp force: 5390KN(550T)
Crimping completion time: 1S-9S

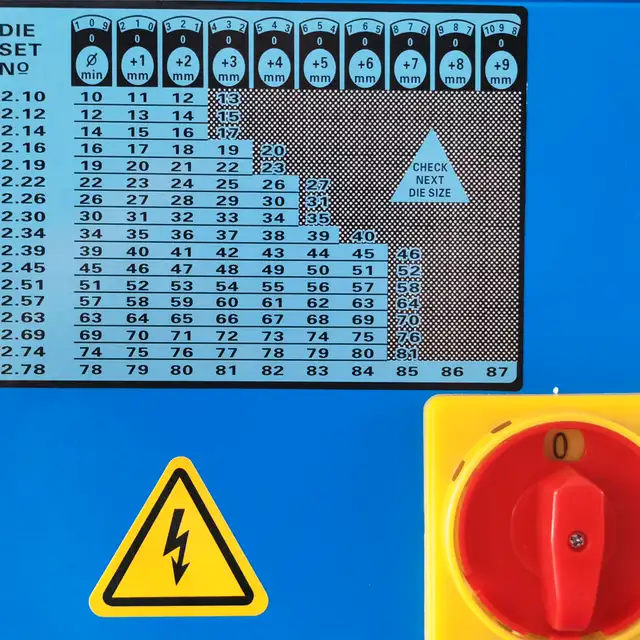

Dies quantity: 13sets(14/16/19/22/26/30/34/39/45/51/57/63/69mm)
System pressure: 31.5Mpa
Hydraulic oil tank capacity: 12.68gal(48L)
Noise: 75db
Package size: 27.6"*26.4"*46.5"(70cm*67cm*118cm)
Net weight/Gross weight: 632.7LB(287kg)/698.9LB(317kg)


Product Features & Advantages

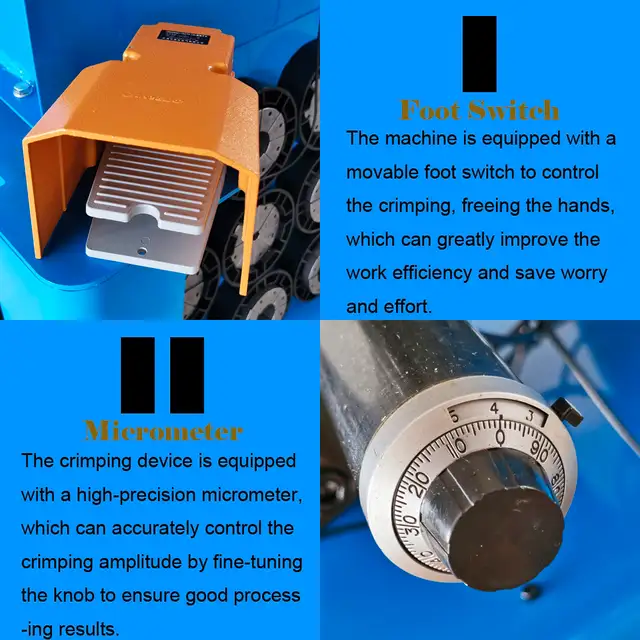

- Operation mode has manual and foot switch control ttwo ways, according to different circumstances can flexibly choose the control mode. It's small and doesn't take up space,Simple controls and operation.
- Using forge steel machine head, this kind of steel is more durabler than general steel.
- The locking mechanism components are made of high quality alloy steel materials and unique heat treatment process to ensure the reliability and service life of the equipment.

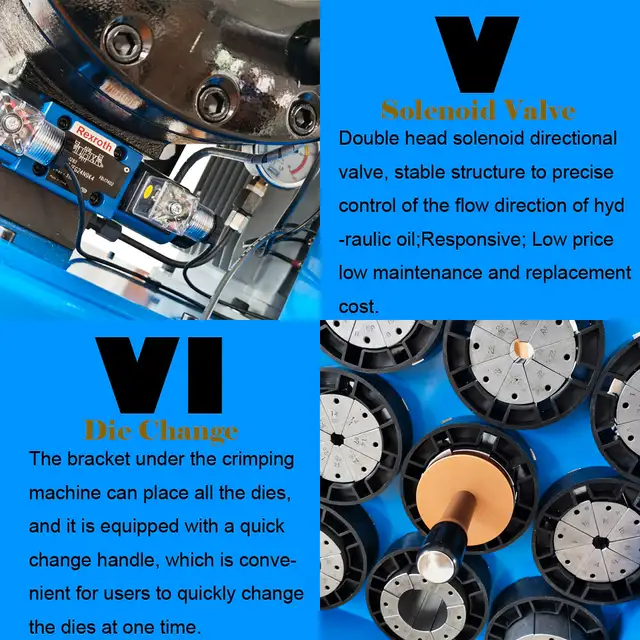

- The mold installation is simple and convenient. The mold can be customized according to different pipes, with high withholding precision and high production efficiency.
- Widely used in all walks of life, can be used for hydraulic hose, steel pipe, iron pipe and other crimping processing.


Item Included(056824)
Crimping Machine *1 Dies *13 Die Screw *10
Fixed Die Screw *2 Die Handle *1 Die Hook *1
Foot Switch *1 English manual *1
