Item number: 160420
-

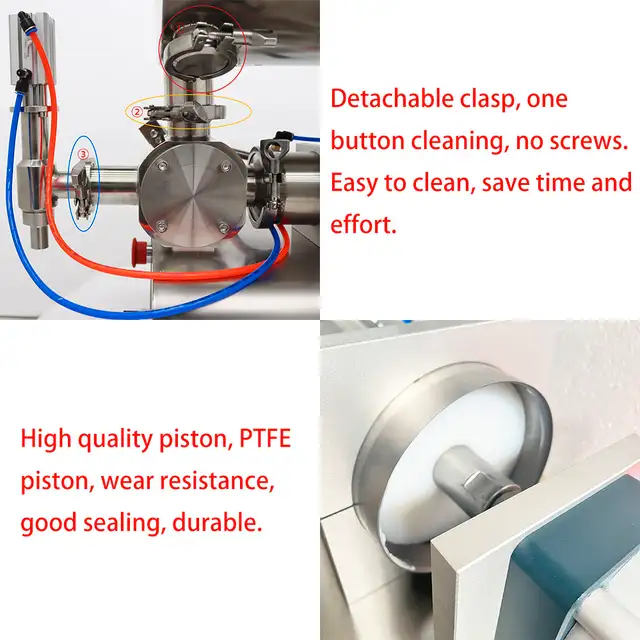

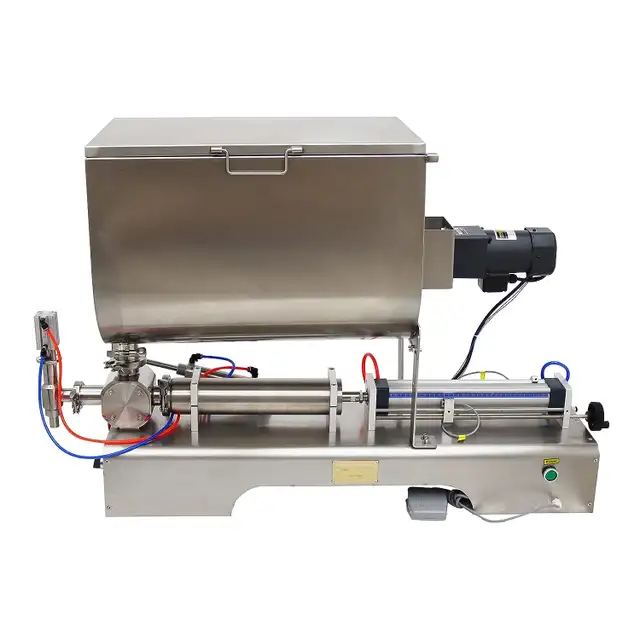

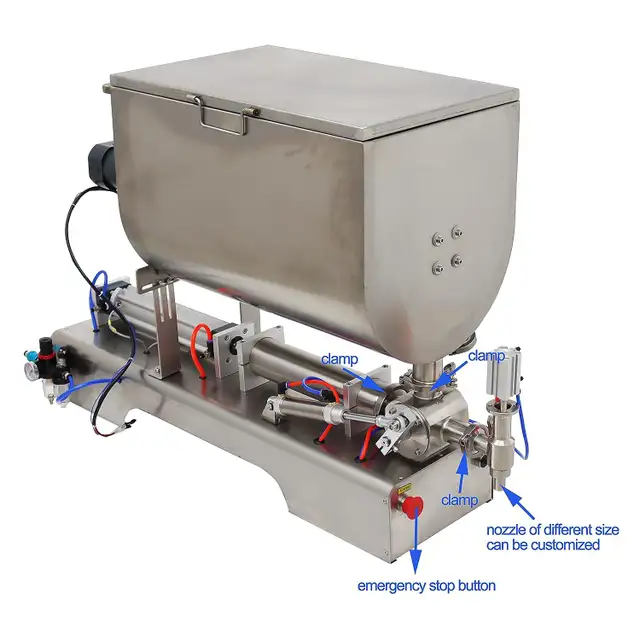

The semi-automatic piston filling machine produced by our company has the advantages of simple and reasonable structure, high precision, convenient cleaning and simple operation. The contact area with the material is made of 304 stainless steel, in line with GMP requirements. The sealing parts are made of PTFE and silica gel. They have the advantages of corrosion resistance, aging resistance, high temperature resistance, good sealing and so on. They are ideal filling equipment for food, pharmaceutical, chemical, daily chemical, petroleum, pesticide and other industries.

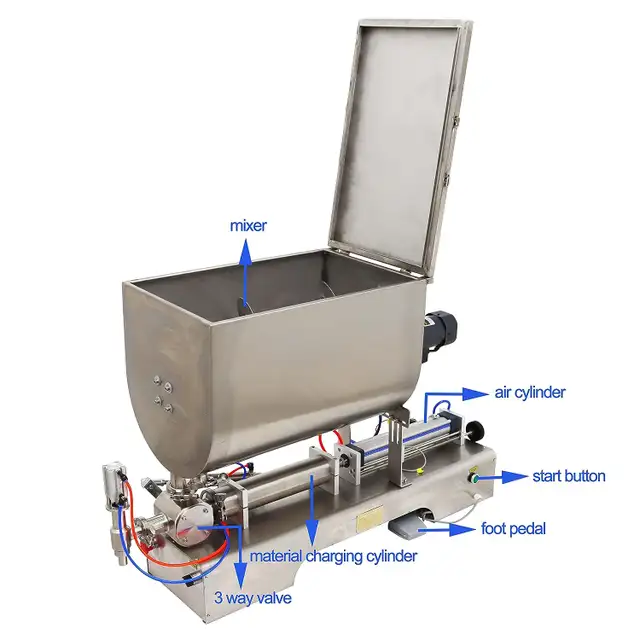

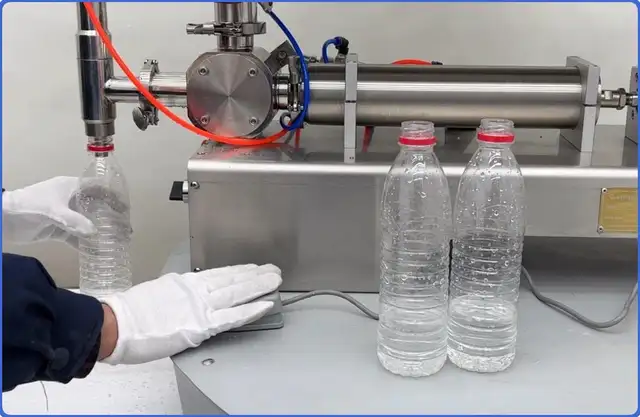

This machine has two methods, foot switch filling and continuous automatic filling; the two filling methods can be switched arbitrarily. It is recommended to use the foot switch for filling at the beginning.


1.This product is designed for all kinds sauces with particles, pasty fluid, oil, and thin food products. It can help you to fill a mount of quantitative sauces.

2.The filling volume range is between 100ml - 1000ml. And the machine should connect air compressor for working. First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.
3.This series of models need to be equipped with external air compressor, air compressor exhaust should not be less than 0.1m3/min, equipped with pressure should be able to adjust to a range of 0.4-0.9Mpa.

(Note1:We only sell machines, do not match air compressors, customers need to buy their own.)

(Note2: If you are not sure whether the material can be filled with this machine, please consult before placing an order)

Product parameter
Voltage: 110V/60Hz
Material: The surface is stainless steel
Pneumatic
Filling volume (ml): 100-1000ml
Filling accuracy (FS) ±0.5%
Production capacity (cycle/min): 5-15

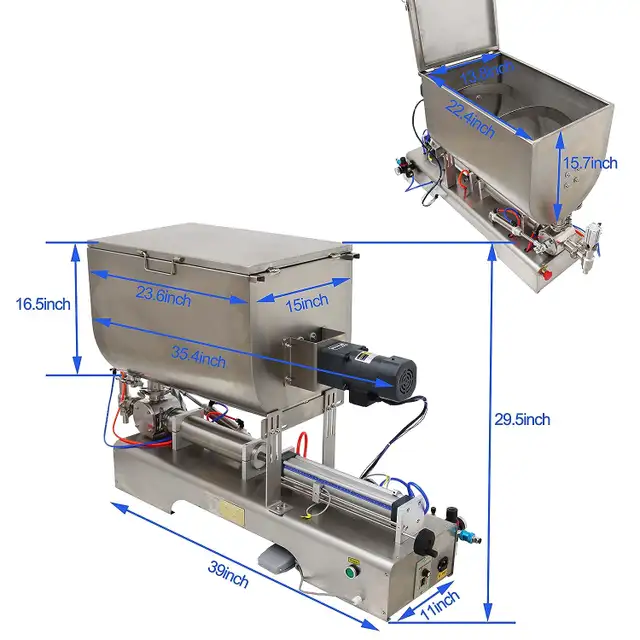

Product size(Exterior sizes): 23.6"x15"x16.5" (60x38x42cm)
Machine body: 39"x11"(99x28)
Net weight: 70kg (154.3lb)
Applicable pressure (Mpa): 0.4-0.9

This machine is suitable for pepper paste, peanut butter, fruit yogurt and other granular materials, a wide range of application, filling material range.

Product safety precautions:
This machine is suitable for pepper paste, peanut butter, fruit yogurt and other granular materials, without straw.

To ensure safe production, please read the following precautions carefully:
1. Use a power supply and air source that conforms to the requirements of this machine . The stability of the air source must be maintained under continuous working conditions.
2. Before disassembling, washing or repairing this machine, please be sure to turn off the air source and power supply first.
3. The rear half of the machine (near the control buttons) and the lower part of the machine frame are equipped with electrical control components. Under no circumstances should the body be washed directly with water, otherwise there will be danger of electric shock and damage to the electrical control components.
4. After the power switch is turned off, there is still voltage in some circuits in the electrical control of this machine. When repairing the control circuit, please be sure to unplug the power cord.
5. Do not keep your eyes close to the filling head during work, pay attention to personal safety.
6. Do not put your hand on the central axis of the cylinder during the work process, pay attention to pinching your hands.
7. Before using materials for filling, it is best to clean the machine with detergent first, and then clean it with clean water, so as to avoid oil stains or foreign materials and materials mixing, which will lead to waste of materials and damage to the machine.
When the paste filling machine is not working, please cover the dustproof cover of the hopper to prevent dust or other debris from entering the hopper and causing material waste and machine damage.

Advantage
1. 304 stainless steel 60L large capacity, filling more convenient.
2. One touch operation, convenient and simple.

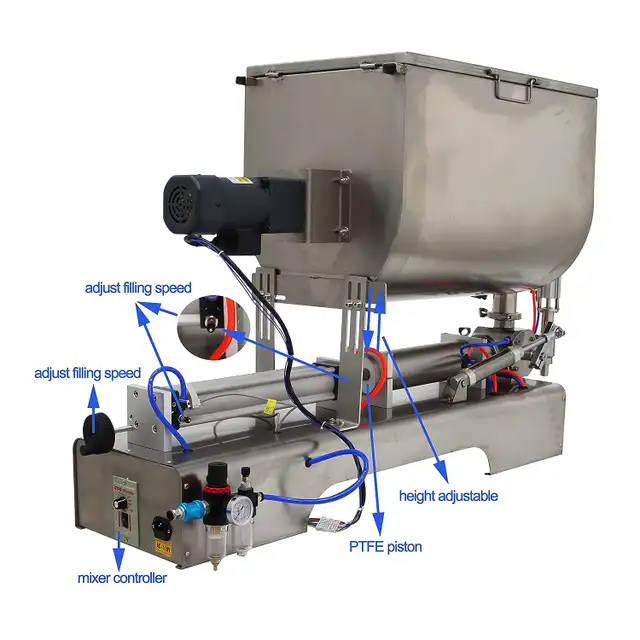

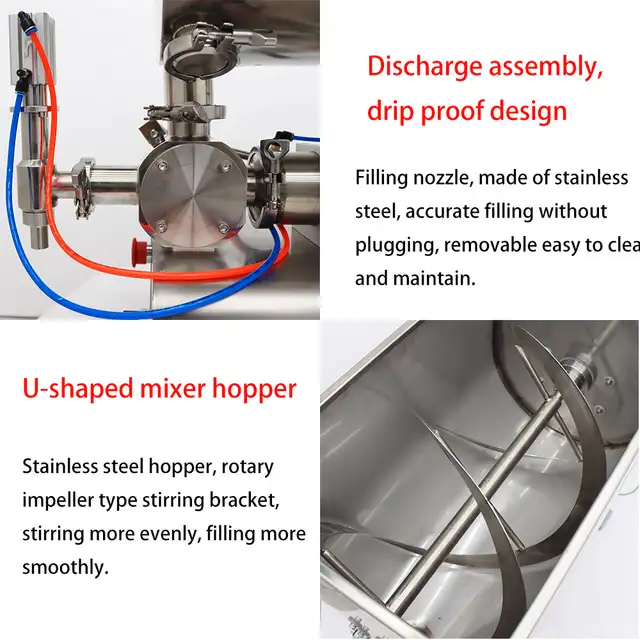

3. Rotating and stirring, material stirring evenly, suitable for precipitation, sticky materials.
4. The use of diameter head, particulate material will not be blocked.
5. Imported motor, lasting and durable, strong power.
6. Imported pump, can be customized according to the volume of filling models

Product include : 160420
1x Filling Machine
1x Piezometer
1x Horizontal mixing bucket
1x Specification
1x Screw Driver
1x A set of hex socket screws
3x Spacer Sheet
2x Sealing ring
1x Power Cord
2x Spare regulating valve

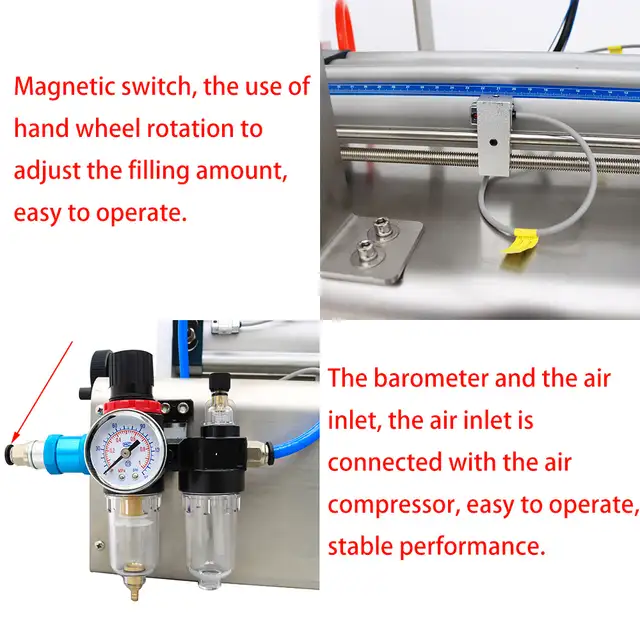

1x Magnetic switch
1x Oil seal blue
