Item number: 022805

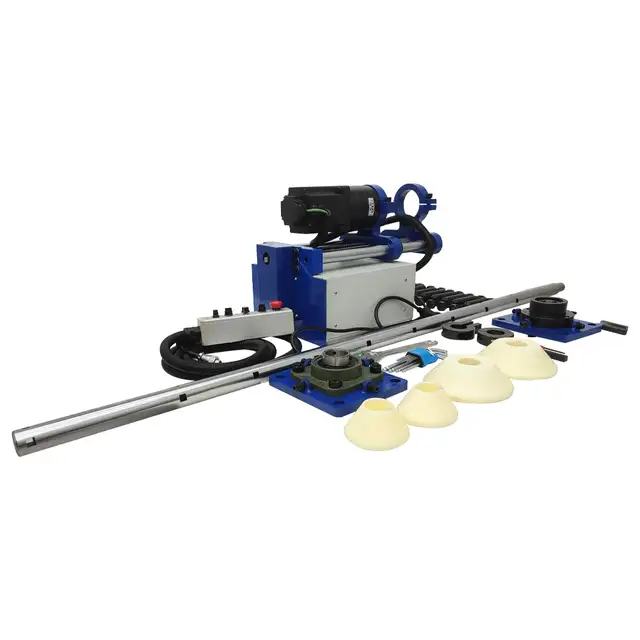

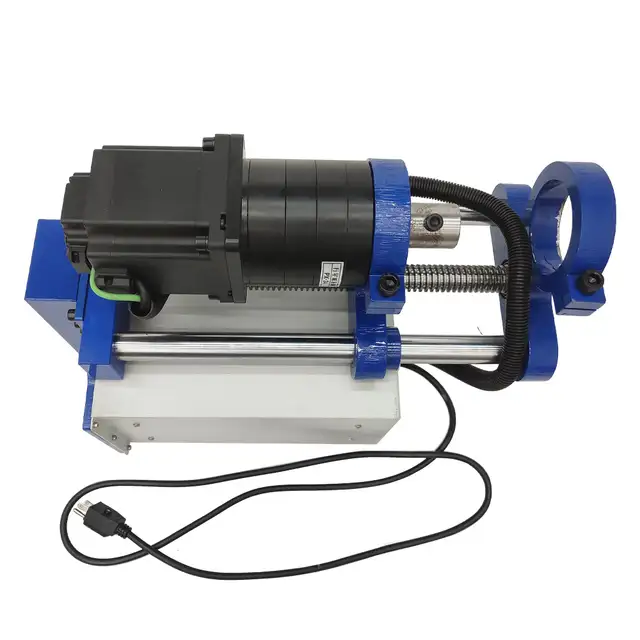

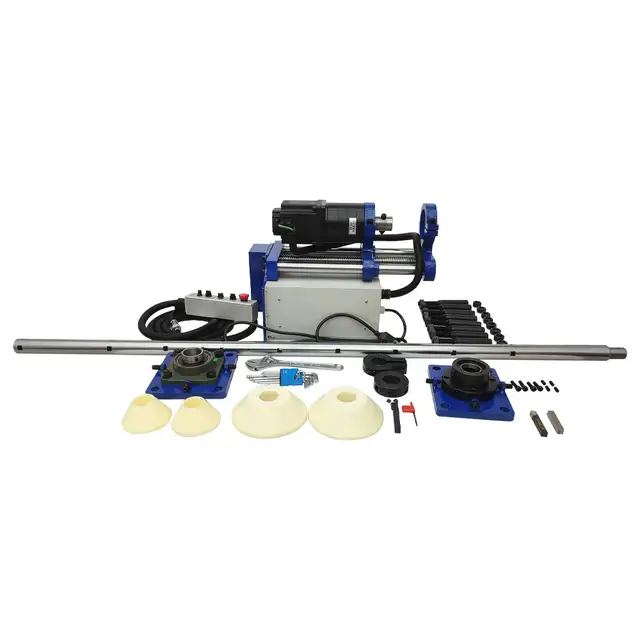

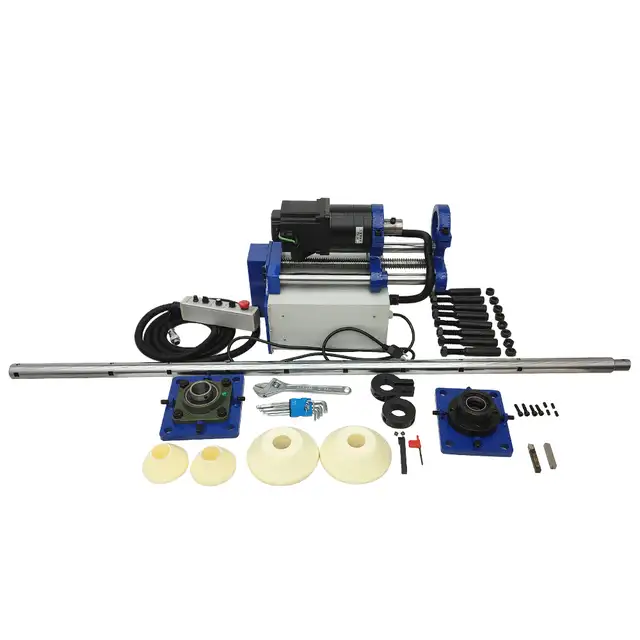

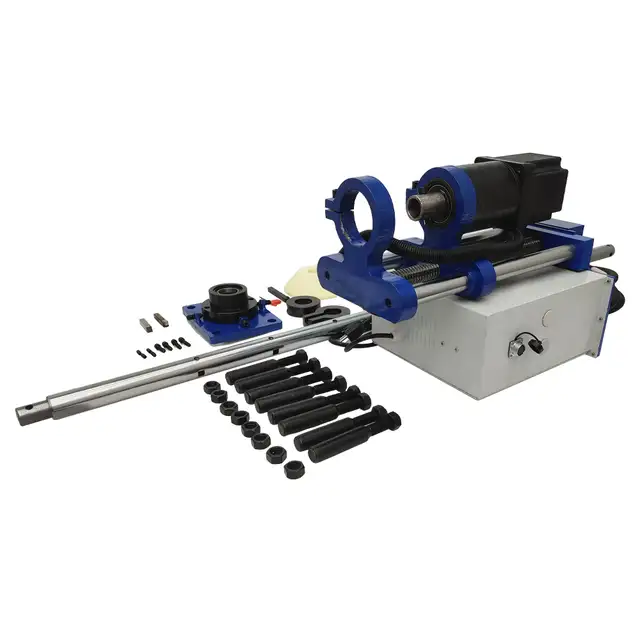

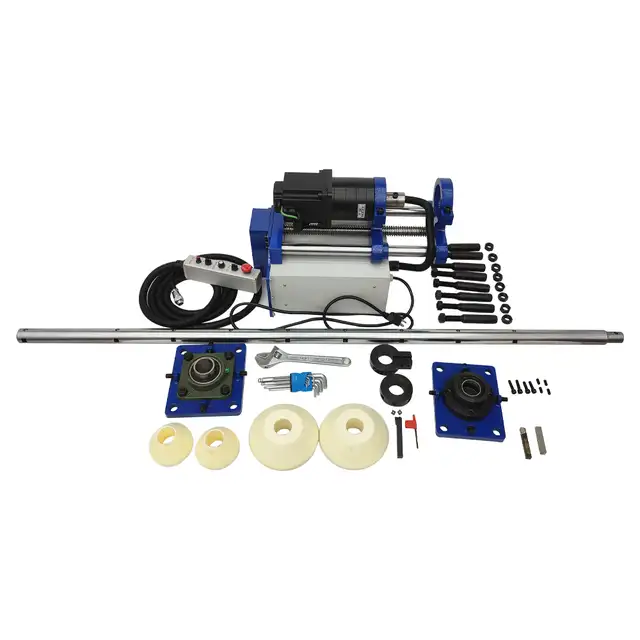

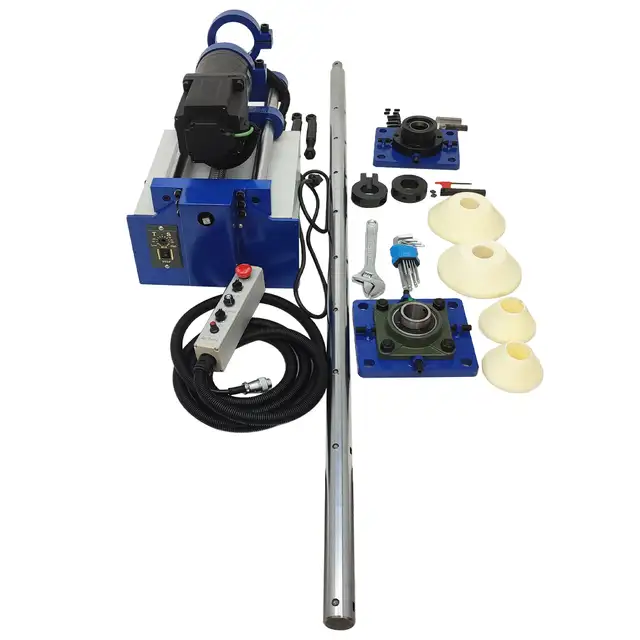

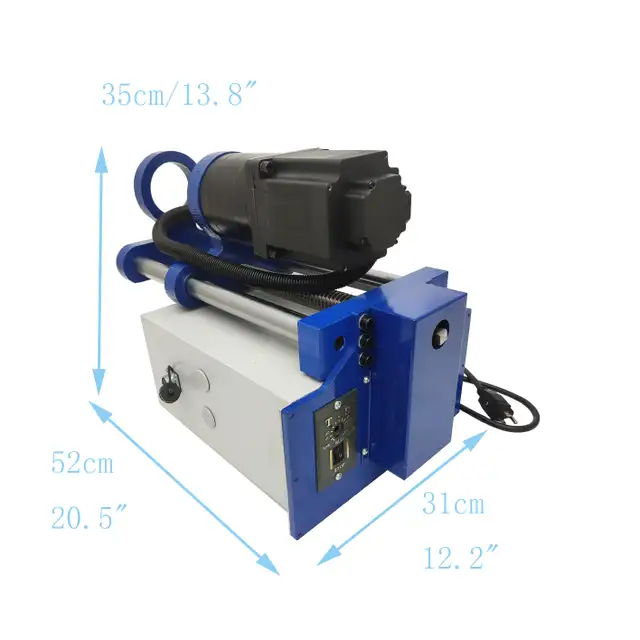

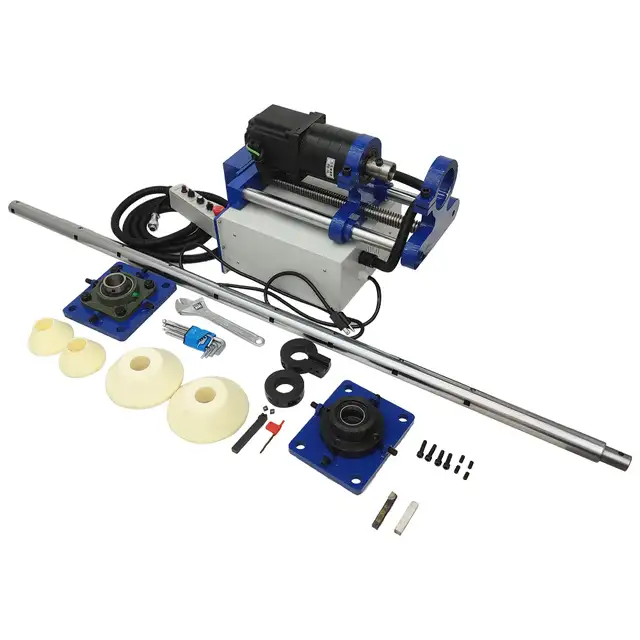

Hole drilling machine for engineering machinery is a piece of portable processing equipment
developed for field service of engineering machinery, and is mainly used for processing small-scale pipeline inner holes and concentric span holes, and widely applied to the engineering machinery including excavators, cranes, loaders and hoists. Only one person is required for operation, and the actual operation difficulty is greatly reduced because its focus on field in design concept and processing makes the serviceman operate the machine more conveniently.

Parameters
The maximum processing hole diameter: 200mm

The minimum processing hole diameter: 55mm

The maximum processing travel: 300mm

The maximum feed depth: 3mm on one side (A3steel)

Surface roughness: Ra3.2

Deviation from circular form<0.02mm

voltage：110V60Hz

power:1500W

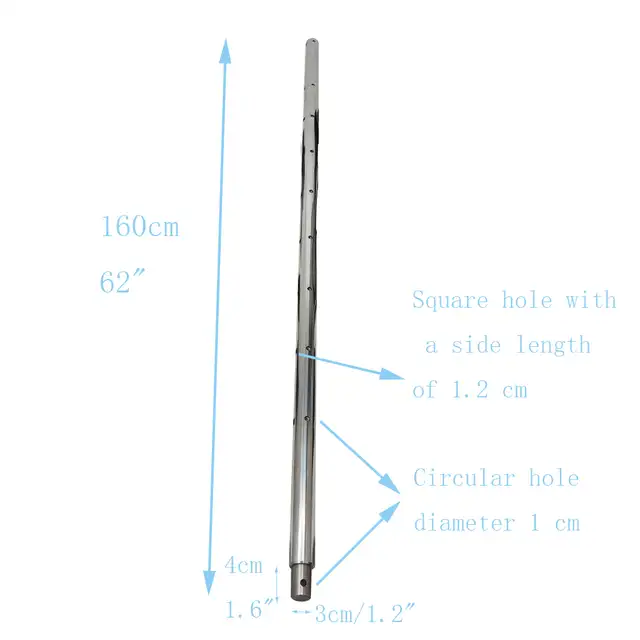

Boring bar size: 160 cm, diameter 50 mm

Features
1. Wide processing range: The boring machine can process the size of 55-200mm and is especially suitable for processing holes and hole series with high requirements for the hole diameters, the sizes and the positional accuracy.

2. High error correction ability: The boring machine has high error correction ability and can correct the axial deviation error of the original hole through multiple feeding so that the high positional accuracy between the bored hole and the positioning surface can be kept.

3. Maneuverability and flexibility: The boring machine can be used on boring lathes, turning lathes, milling machines and other machine tools, has the advantages of flexibility and maneuverability and is widely used in production.

4. Multiple application scenarios: The boring machine is suitable for precision boring machining of inner holes of various mechanical parts, including the machining of cylinder holes and cylinder liner inner holes of internal combustion engines for automobiles, tractors and other machines. In addition, the portable boring machine is suitable for on-site machining of pipeline inner holes, concentric spacing holes and through holes of large equipment, and machining and repairing of end surfaces of holes.

5.Remote control with a handle improves safety. There is a magnet on the back of the remote control, which can be attracted to the mechanical surface when not in use, making it easy to store.
