Item NO.#120076
Product Overwiew

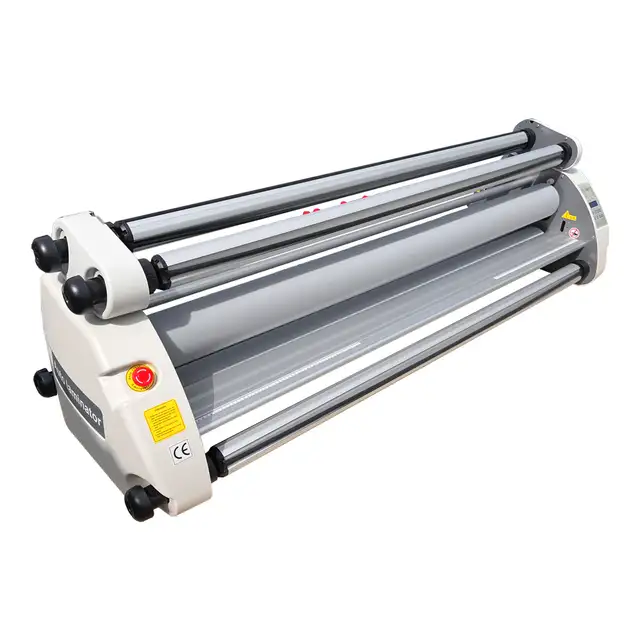

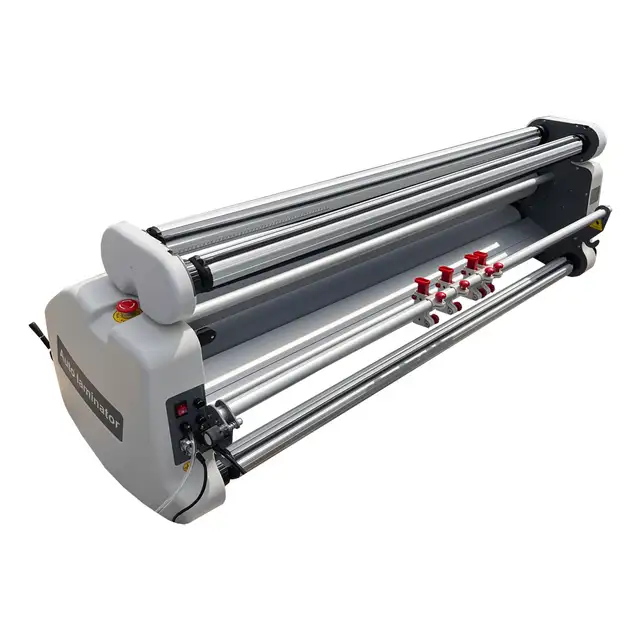

The novel laminating machine can cover drawings with different films through the cold press technology and the heating function.
The finished drawings will be waterproof, colorfast and colorful.
The films with or without bottom paper can be used by our excellent machine.
The pneumatic laminator also has a function for easily cutting the drawings covered with films. It will be a satisfying partner for your work and business.
Our Customer Service System will offer you a long-term and reliable technical service!
Please believe that we are always pursuing outstanding technical performance and excellent quality!

Note: The machine should be used with the 8L air compressor prepared by the customer.

Product Parameters
Max. laminating width 63In (1600mm)
Max. laminating thickness 1.38In (35mm)
Max. Laminating speed 10m/min
Temperature adjusting range Room temperature-140℉
Roller lifting way Using cylinders and bilateral linkage promotion
Roller heating type Within the infrared heating
Preheating time 10-15min
Diameter of upper and lower rubber rollers 5.12in (130mm)
Motor power 120W
Heating rod power 1500W
Rated input voltage 110V
Net weight：293Lb
Non-contact infrared temperature measurement system Electric foot switch

Product Features
The film supporting rods can effectively support films with/without liner paper, can be conveniently assembled and disassembled, can be selected for supporting different films as needed, is durable and firm and has a long service life. 　
The film stripping rod is a large-diameter aluminum alloy rod, is subjected to surface oxidization treatment, can effectively reduce vibration and noise in the working process and avoids chatter marks in the film stripping process.

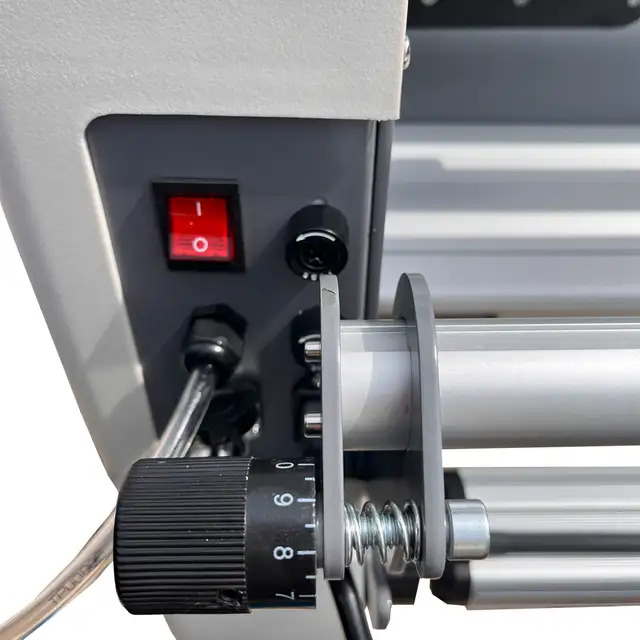

Independent tensioning knobs are used for adjusting the tensioning degree of all supporting rods, can control the film at any time and improve the film laminating effect, and are easy to operate and control and high in working efficiency. 　

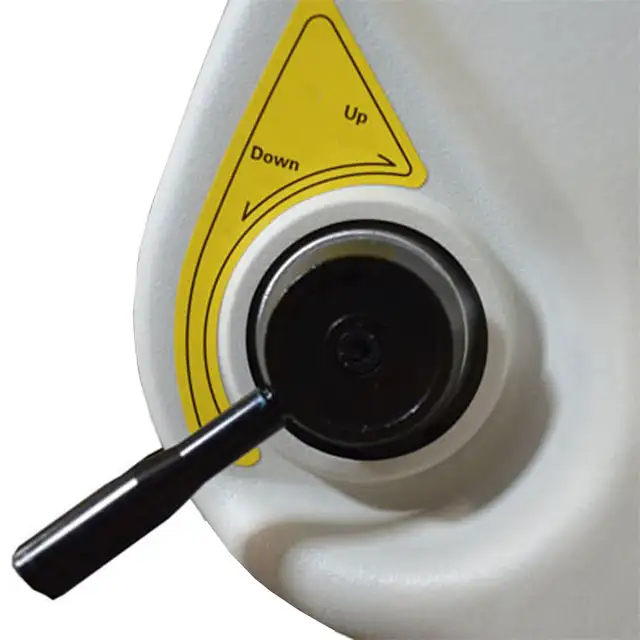

The pneumatic lifting control handle can be used to manually control the rubber roller to move up and down, the double-side air cylinder linkage lifting system can effectively improve the lifting effect, and the using effect is good.
The emergency switch can be used to immediately stop the machine in emergency, can be easily pressed and rotated, effectively protect the personal safety and provides safety guarantee for operators. 　

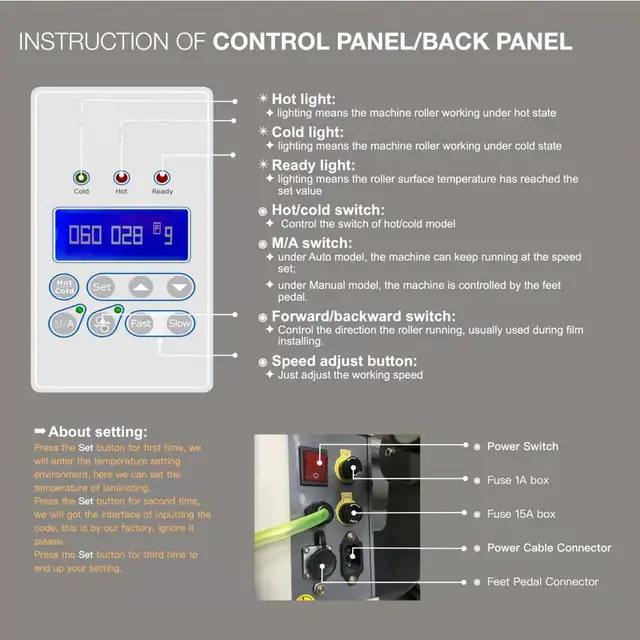

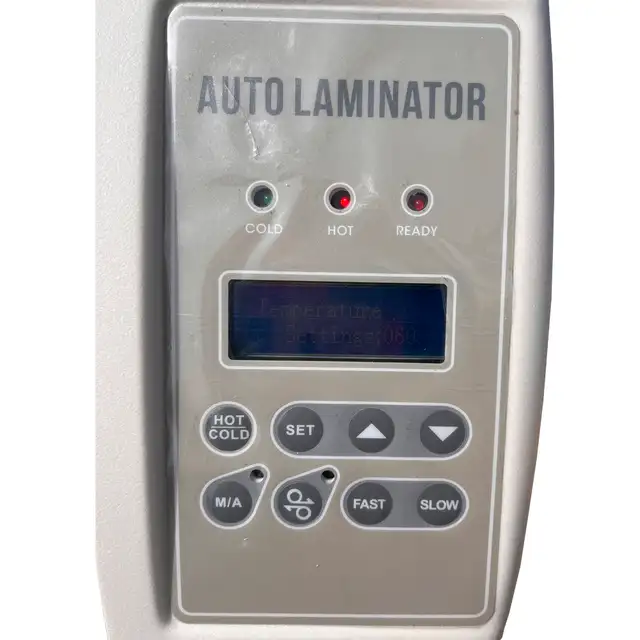

The unique microcomputer control panel is adopted to control the machine, the user can select the proper laminating function freely and set different parameters, and the machine state can be clearly displayed.
The high-quality heat temperature resistant rubber roller is used for lamination, the maximum laminating width can be 63in, the maximum laminating speed can be 10m/min, and the rubber roller can ascend and descend pneumatically.
The pressure gauge can display the pressure in real time, the operator can observe and monitor the pressure change conveniently, reference data are provided for recording the machine state, and overpressure and other accidents can be effectively avoided.
The foot pedal can assist the operator in operating the machine, the operator can precisely control the laminating process through hand and foot cooperative operation, and the manual mode and the automatic mode can be quickly switched. 　

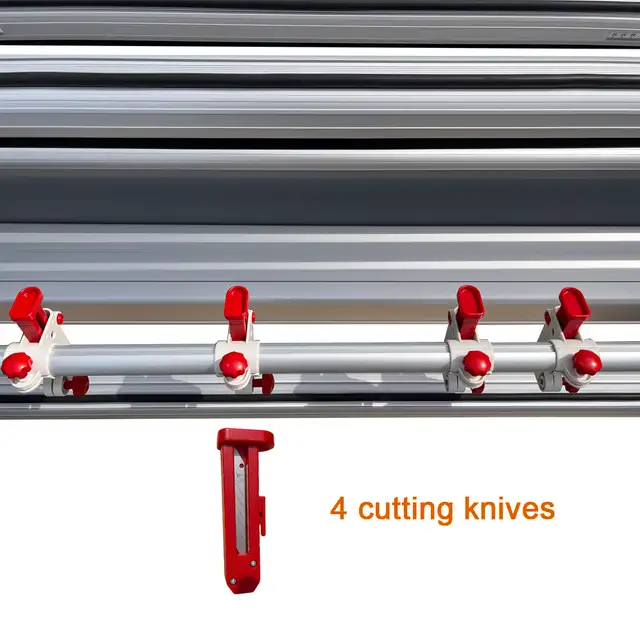

The four cutting devices are freely installed on the supporting rod, can effectively remove the white edges of drawings and precisely cut the drawings into sections as needed, and lamination and cutting operation can be conducted simultaneously.
The collecting rods can easily collect finished products and back paper, save time and labor, reduce the labor intensity and are firm and durable in structure and convenient to remove and install. 　

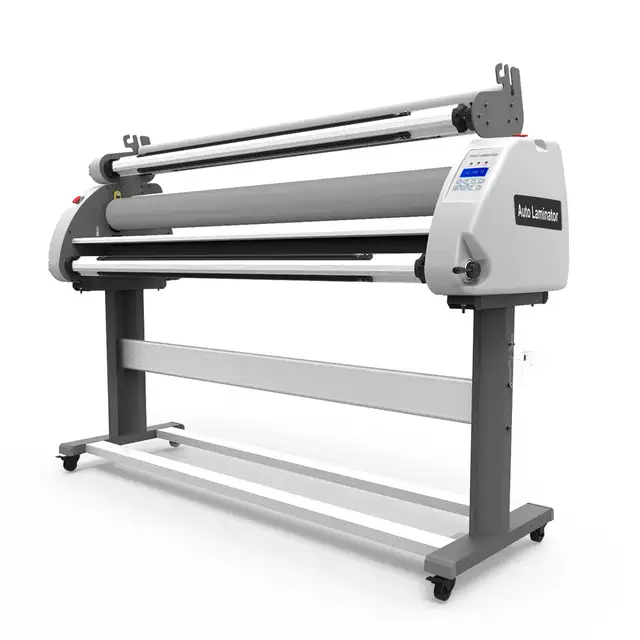

The universal wheels are arranged at the bottom of the machine so that the machine can convenient to move and fix and adapt to different working environment.

Application
The Pneumatic Low Temperature Laminating Machine can be widely applied to lamination of wedding photos, posters, advertising photographs, book covers, documents, calligraphy and painting, invitations and so on, and is suitable for the enterprises and industries of advertising, printing, photography, packaging and the like.

Item Number(120076):
1 X Pneumatic Low Temperature Cold Laminating Machine

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
