Specifications:

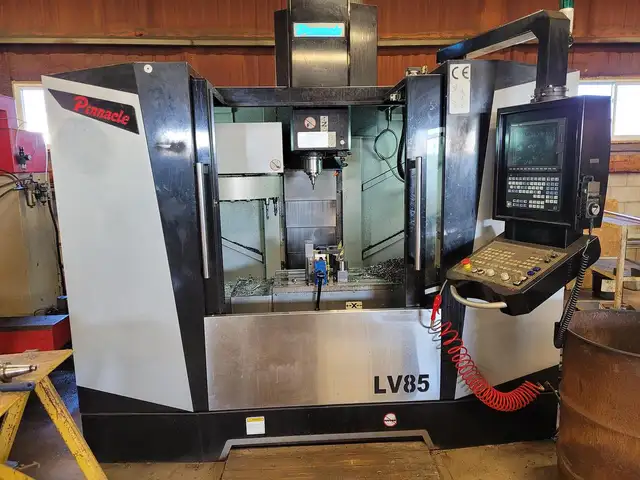

Manufacturer PINNACLE
Model LV85
Year 2015
Stock Number 4776
MACHINE INSTALLED 2017
TABLE AREA 39" X 20"
X-AXIS TRAVEL 33"
Y-AXIS TRAVEL 22"
Z-AXIS TRAVEL 22"
MAX. TABLE LOAD 1,322 LBS.
SPINDLE NOSE TO TABLE SURFACE 3.9" TO 25.9"
NO. OF STATIONS ON ATC 20
SPINDLE TAPER ISO 40
MAX. SPINDLE SPEED 8,000 RPM
RAPID FEED RATE - X /Y /Z 1,417"/MIN. X/Y - 944"/MIN. Z
FEED RATE 393"/MIN.
VOLTAGE 600V/3/60
MAIN MOTOR 21 HP

Equipped With:

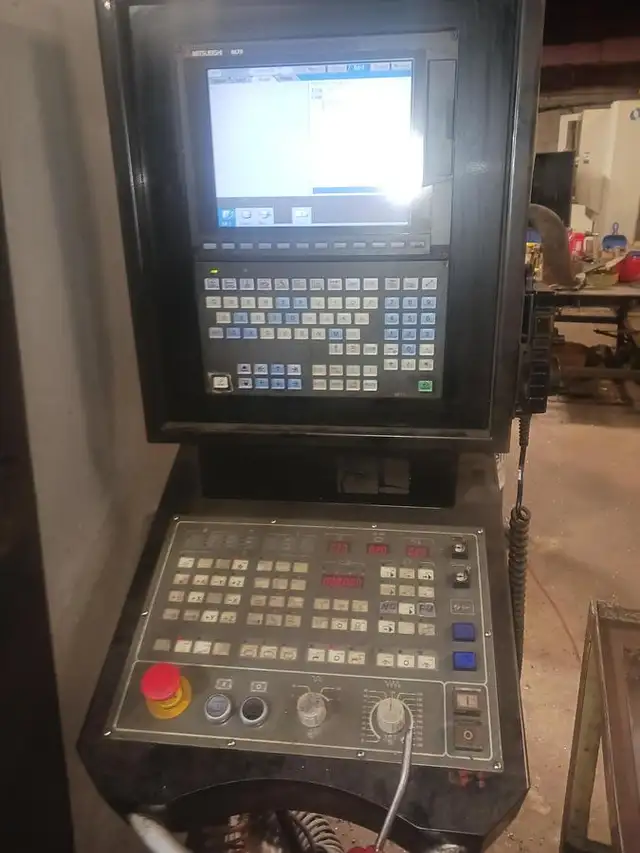

MITSUBISHI M70V CNC CONTROL

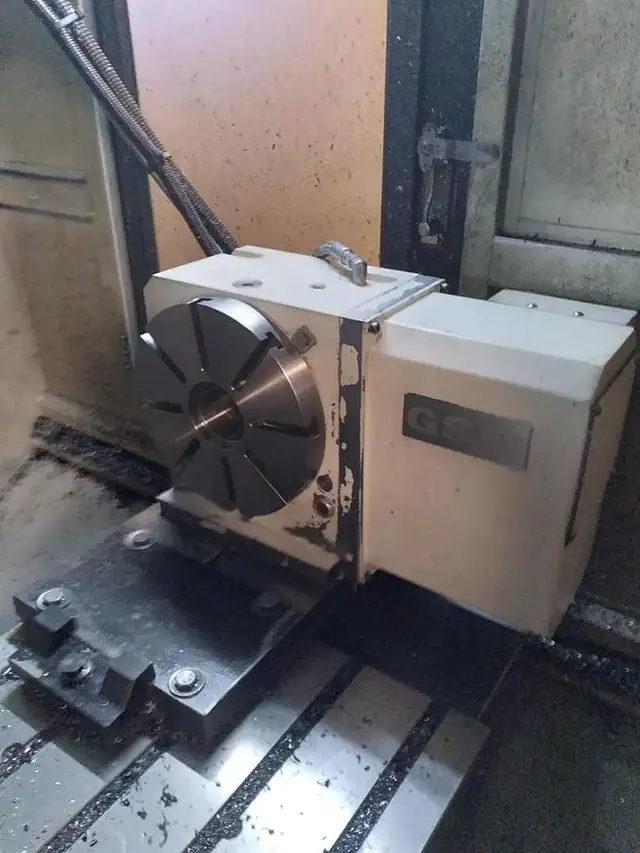

10" - 4TH AXIS ROTARY TABLE W/TAILSTOCK
CHIP AUGER
COOLANT SKIMMER
COOLANT TANK & PUMP
