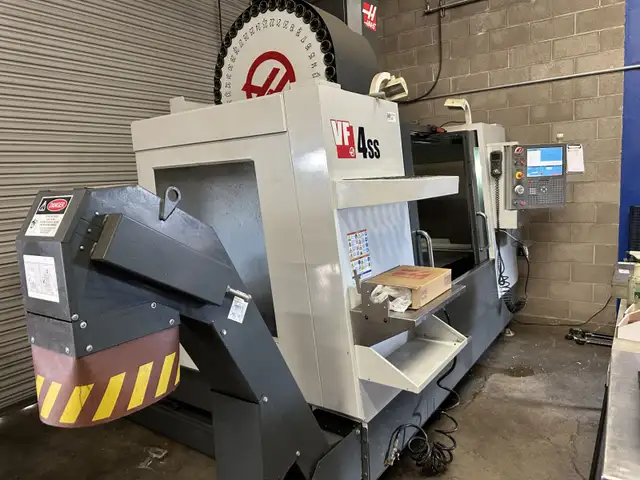

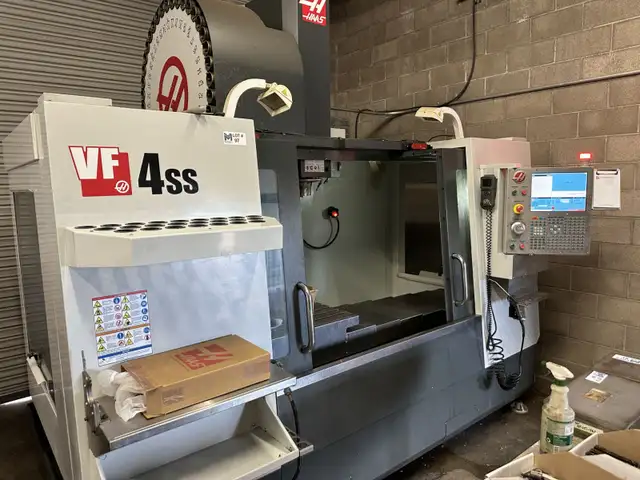

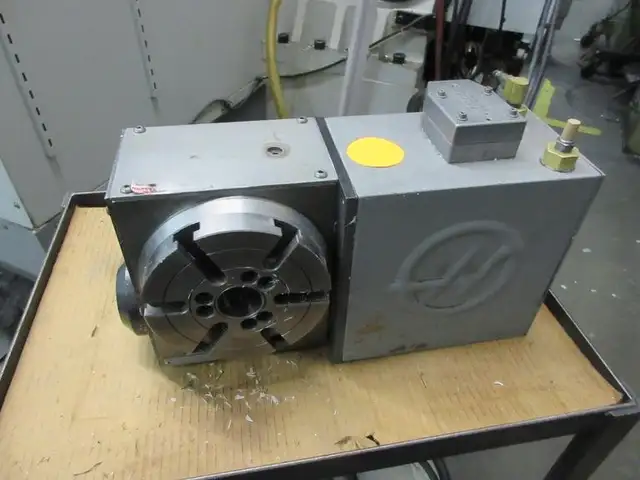

Like New Haas VF-4 'Super Speed' Loaded with options! Featuring WIPS Probing System AND 40 1 ATC **Coming out from an Aerospace Plant** **Available in Canada!** 4th axis HRT-160 available with or without

X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM

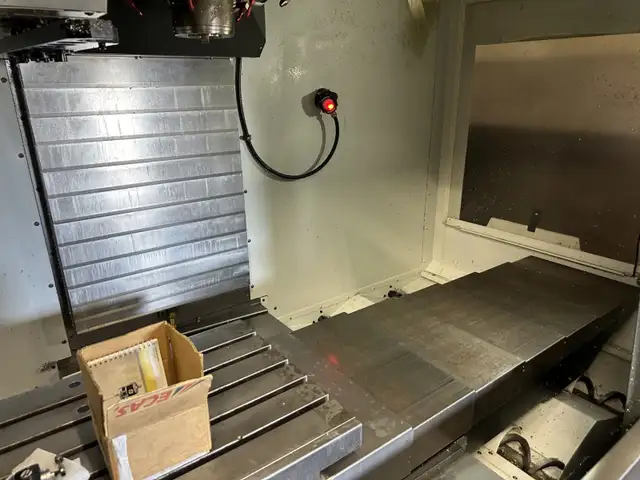

Table Size: 52" x 18"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Bearing Lubrication Air / Oil Injection
Max Cutting 833 ipm
T-Slot Width 0.630"
T-Slot Center Distance 3.15"
Max Thrust X, Y 3085 lbf
Max Thrust Z 3925 lbf
Max Weight on Table (evenly distributed) 1750 lb
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS

Options:

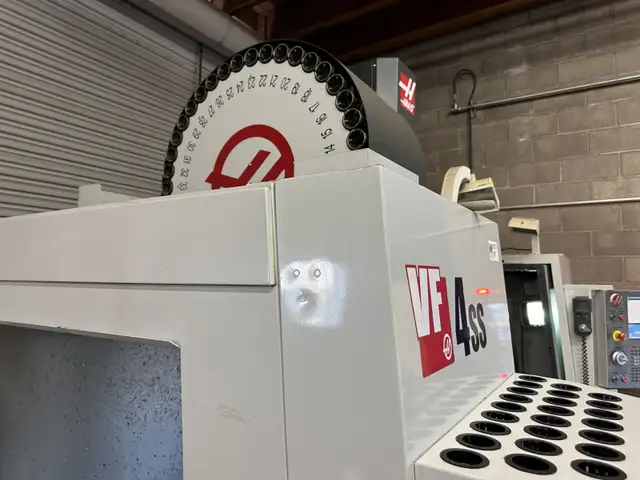

40 1 ATC
Programmable Coolant

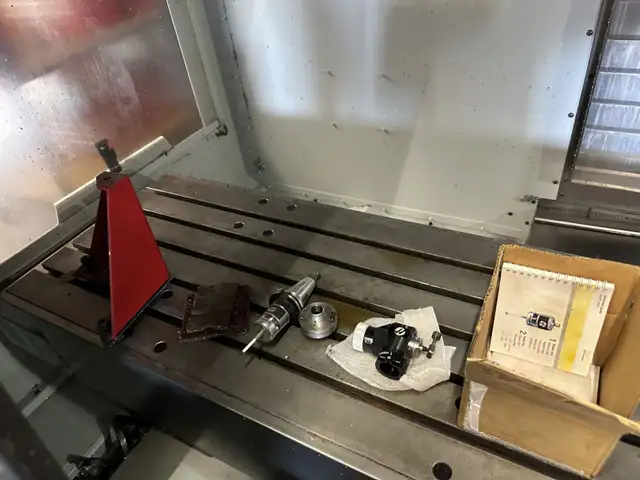

WIPS Probing system
Large Jog Handle Wheel
Quad-Auger System with Henning Chip Conveyor
4th axis Drive and Wiring
High Intensity Lighting
Spindle Orientation
Definable Macros
Coordinate Rotation and Scaling
