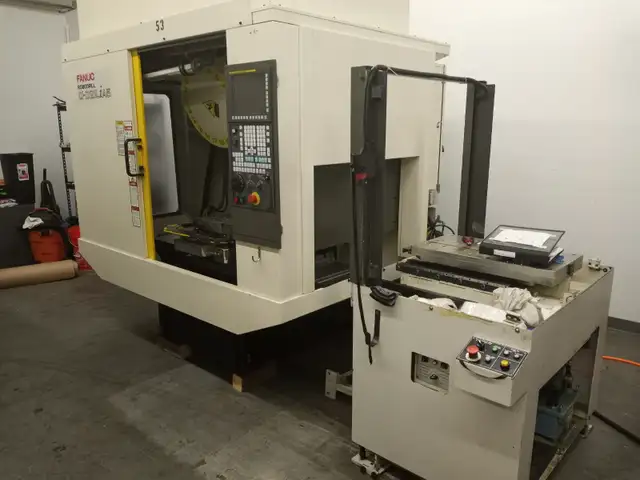

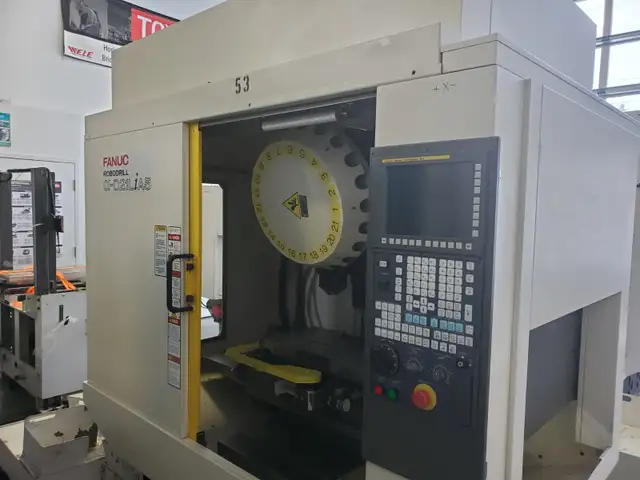

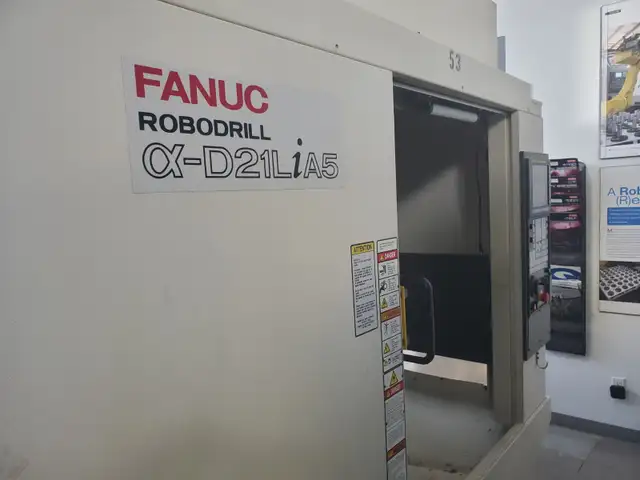

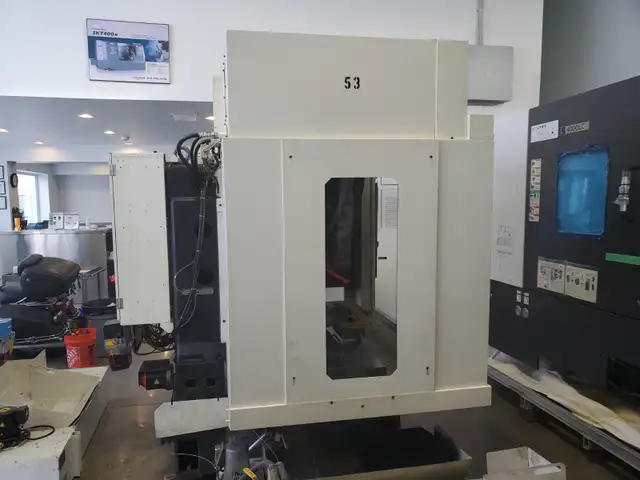

2012 Robodrill Model aD21LiA5 w/ Pallet Changer
Type A04B-0102-B 113#BBH
Located in Edmonton

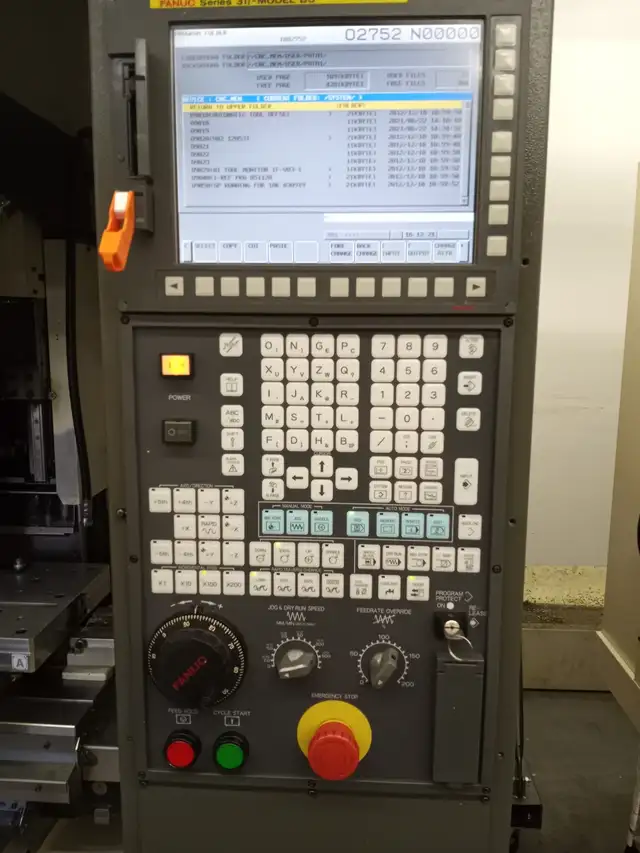

Controller Fanuc 16M
Travel X,Y,Z 20."x14.96"x11.81"
Table 27.50 x 15.5"
Max Table Weight 330 lbs
Distance Table Nose to Spindle Center 5.5"~16.1"
Spindle Taper BT 30

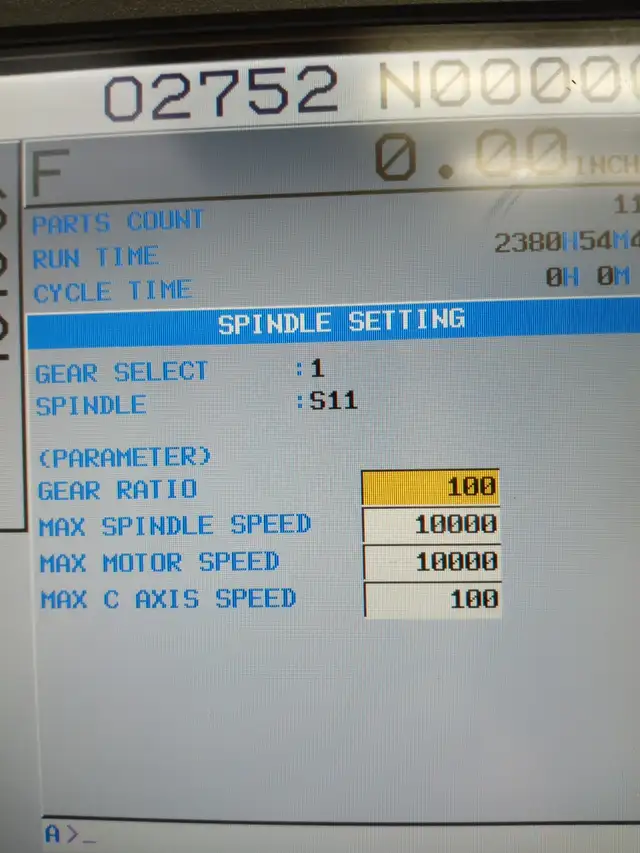

Spindle 10,000 rpm
Tapping 6,000 rpm
Horsepower 7.5 HP
Torque at 30 minutes 51 ft-lbs
Rapid Traverse X/Y/Z axis 1,260 imp

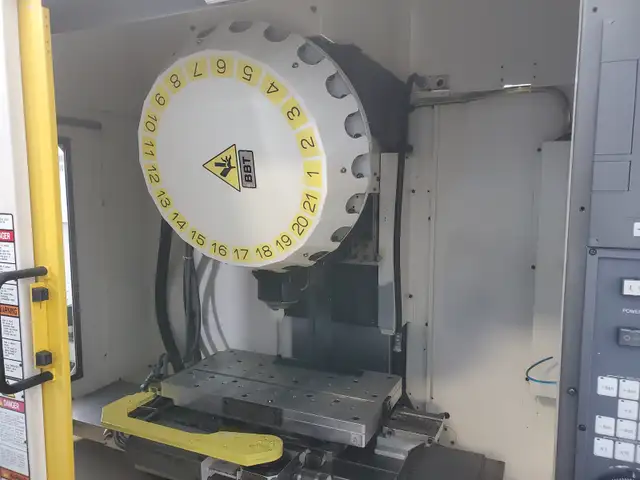

Tool Changer 10 1 tool
Max Tool Diameter (With out adjacent tool) 3.0" ( 5.9" )
Max Tool Weight 17.0 lbs
Tool to Tool time 1.1 sec
Chip To Chip 1.8 sec
Guide Ways Linear Motion
Weight 4,4000 lbs
Work light
Optional Equipment

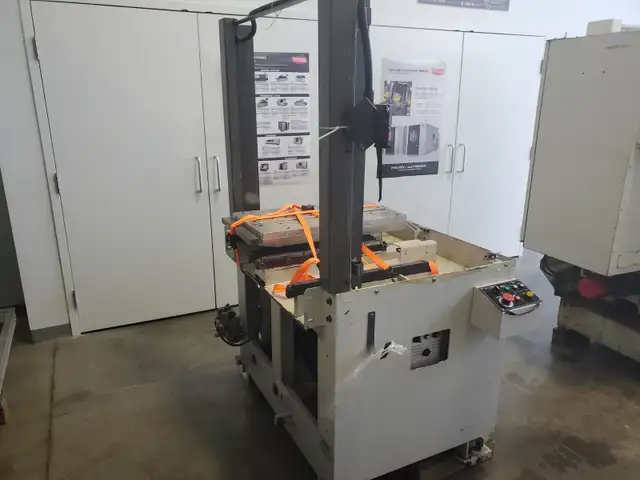

C/w Auto Pallet Changer 27.5 x 15.5"
