Item number: 053259
-
Product overview:
Automatic tape winding machine is a very important automatic device in complex wire harness forming and mechanical harness industry winding work. It can ensure the whole production workflow to reach a high automation standard, which can greatly reduce the work labor intensity, improve the production efficiency and reduce the production and operation cost, it is a very excellent tool!

Product parameter:
Voltage:AC110V/60Hz
Tape width:0.20"-0.98"(5mm-25mm)
Diameter of wire:0.12"-1.18"(3mm-30mm)
Diameter of the inner hole of the tape:1.46"(37mm)
Rotate speed:300rpm-2500rpm
Winding length:Infinite length
Scope of applicaiton:Cloth tape, Acetate tape, Electrical tape, Polyester tape

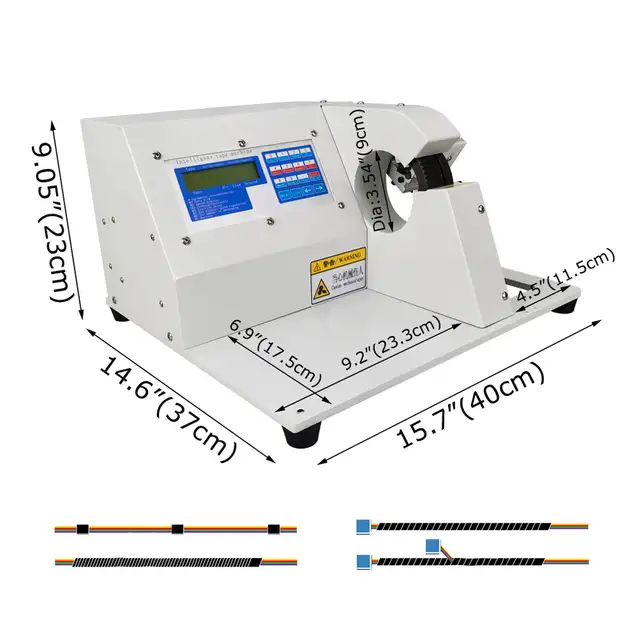

Package size:21.6"*19.7"*13.8"(55cm*50cm*35cm)
Net weight/Gross weight: 37.5LB(17kg)/44.1LB(20kg)

Features

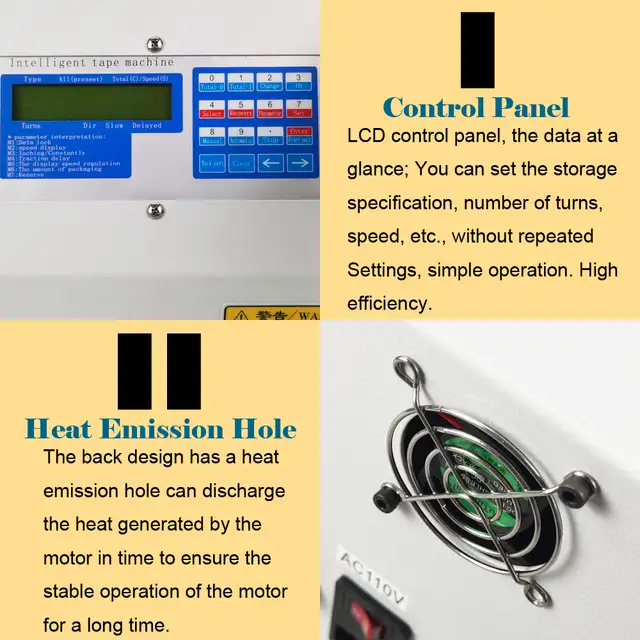

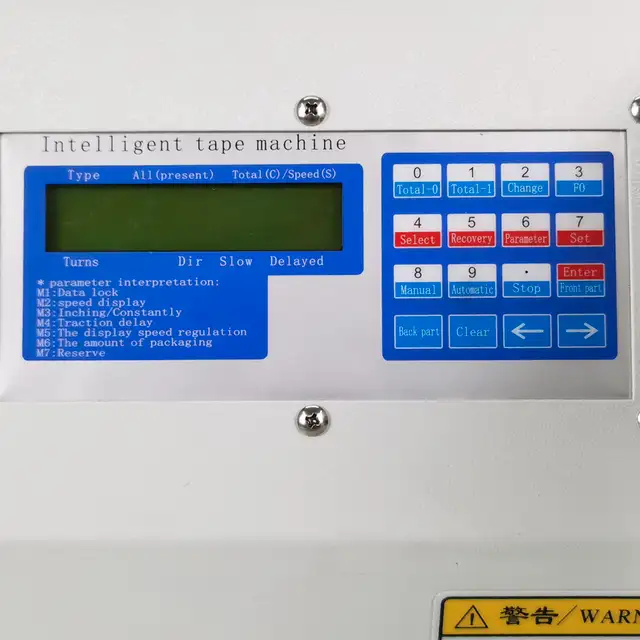

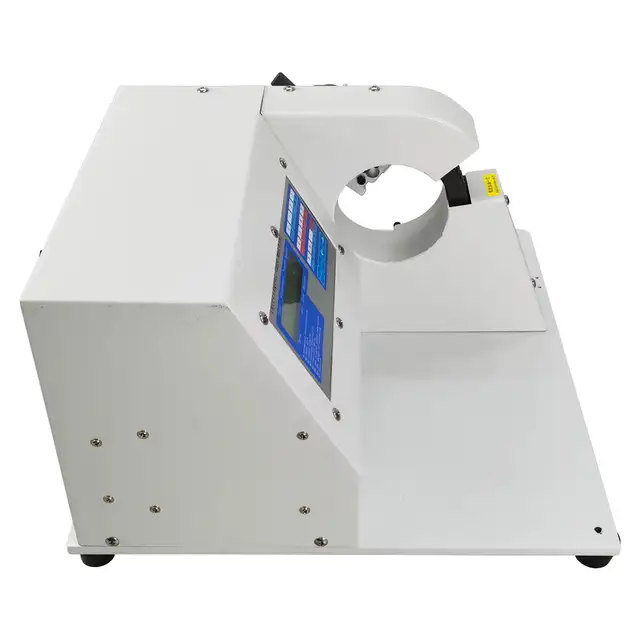

1.Control panel
LCD control panel, the data at a glance; You can set the storage specification, nimber of turns, speed, etc.,witthout repeated settings, simple operation. High efficiency.
2.Heat Emission Hole
The back design has a heat emission hole can discharge the heat geberated by the motor in time to ensure the stable operation of the motor for a long time.

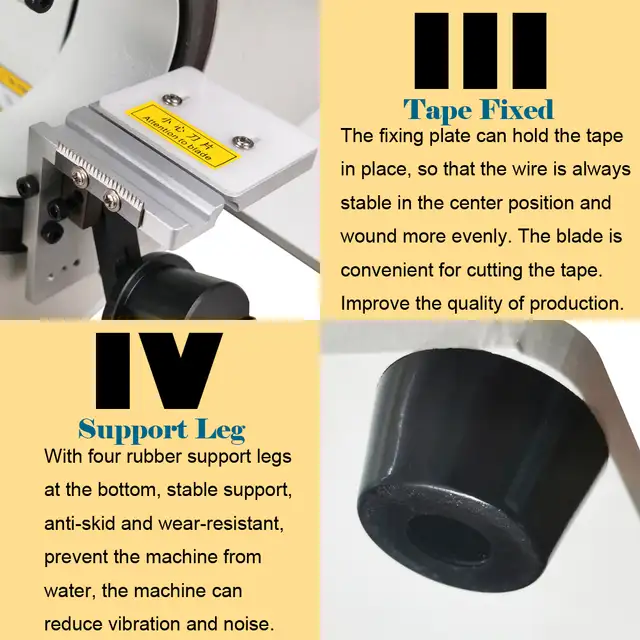

3.Tape Fixed
The fixing plate can hold the tape in place, so that the wire is always stable in the center position and wound more evently. The blade is convenient for cutting the tape. Improve the quality of production.
4.Support Leg
With four rubber support legs at the bottom, stable support, anti-slid and wear-resistant, prevent the machine from water, the machine can reduce vibration and noise.

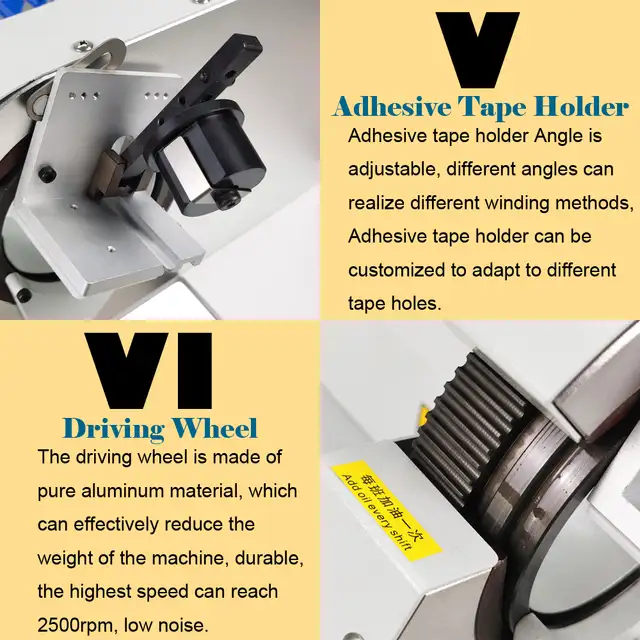

5.Adhesive Tape Hodder
Adhesive tape holder angle is adjustable, different angles can realize different winding methods. Asdesive tape holder can be customized to adapt to different tape holes.
6.Driving Wheel
The driving wheel is made of pure aluminim material, which can effectively reduce the weight of the machine, durable, the highest speed can reach 2500rpm,low noise.
Advantage:
- Small size, does not take up space; Smooth operation, low noise.
- Using stepper motor, can quickly start/stop, high precision and small error, can work continuously for a long time.
- The adhesive tape holder can be customized according to the diameter of the inner hole of the belt to meet different needs.
- It can realize the switch of different winding modes to meet different needs. If you have special needs, you can contact us to customize.
- Can realize the winding number and speed setting, with output display function.

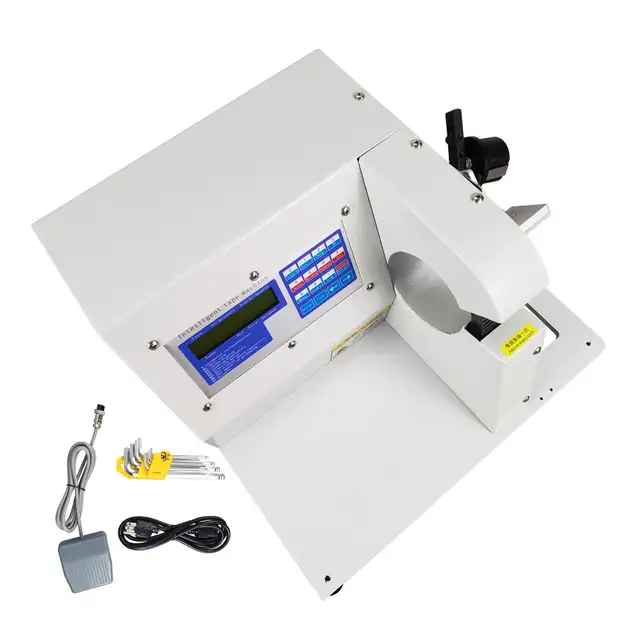

Item include 053259
Tape Winding Machine *1
Hex Wrenches *9
English Manual *1
Foot Switch *1
Power Cord *1
