Item number: 056005
-

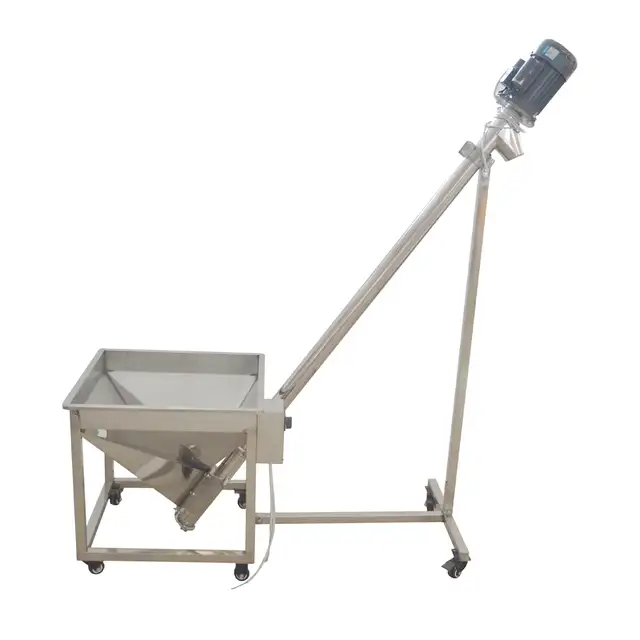

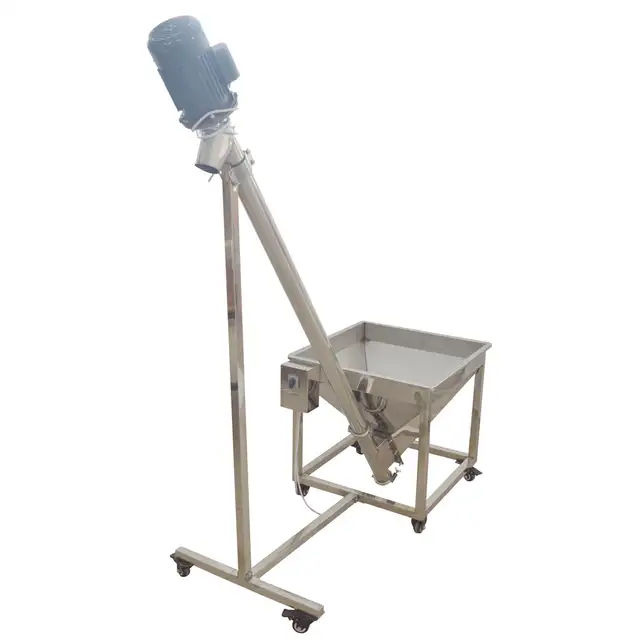

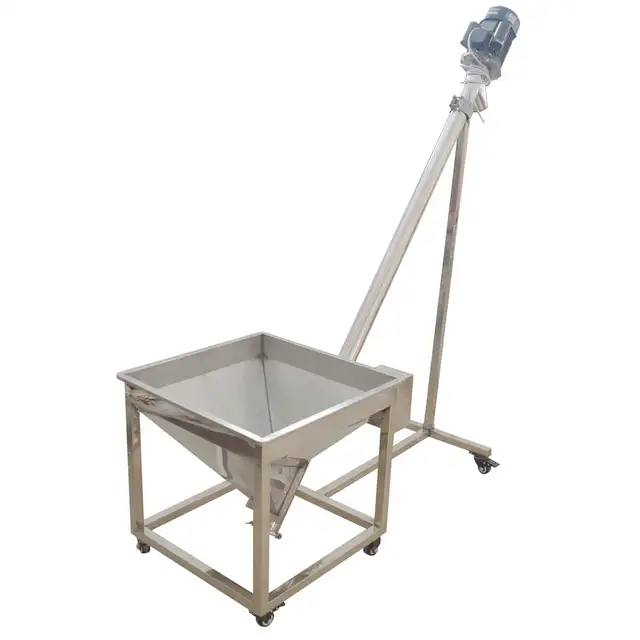

Product Overview

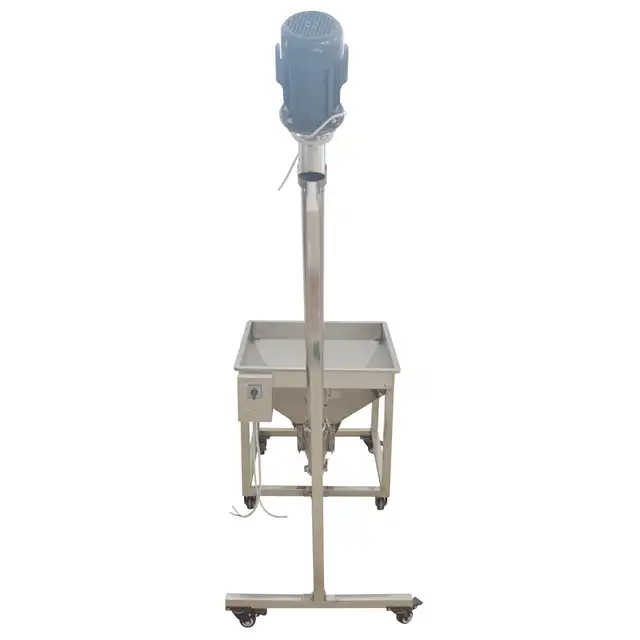

The Auger Conveyor is suitable for transferring a batch of granules from the ground level to packaging or filling machines or various application occasions, and the product fed by the conveyor is controlled to retain the product level in the product hopper. Application: dry pellet pet food, dry granules, etc. The machine is suitable for the food industry and other industries. The screw drive feeding machine forms a complete set of auxiliary machinery required for plastic processing machinery, and is a piece of indispensable auxiliary equipment in the feeding process of blow molding machines. Granules or granular plastic raw materials can be transferred automatically and directly to the inside of the hopper, the adjusting and mixing machine is a piece of special equipment, the materials making contact with raw materials are stainless steel, raw material cannot be polluted in the conveying process, any foreign matter cannot enter the machine, and automatic sealing can be achieved in the production process.

Product Parameters
Voltage: 220V

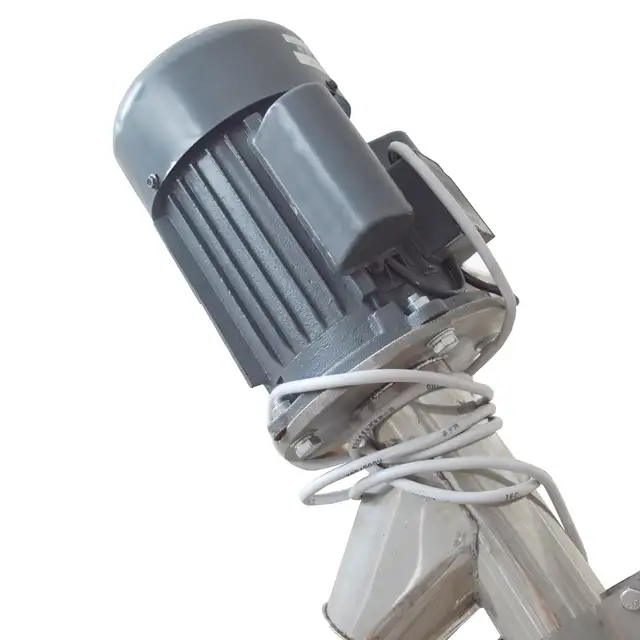

Power: 750W(1HP)
Height of discharge outlet from ground: 66.93"(1.7m)
Capacity(Change according to material density): 441-661lb/h (200-300kg/h)
Inlet size: 27.36"*27.36"(69.5cm*69.5cm)
Phase number: 1
Machine material: 201 stainless steel
Discharge outlet diameter: 3.15"(8cm)

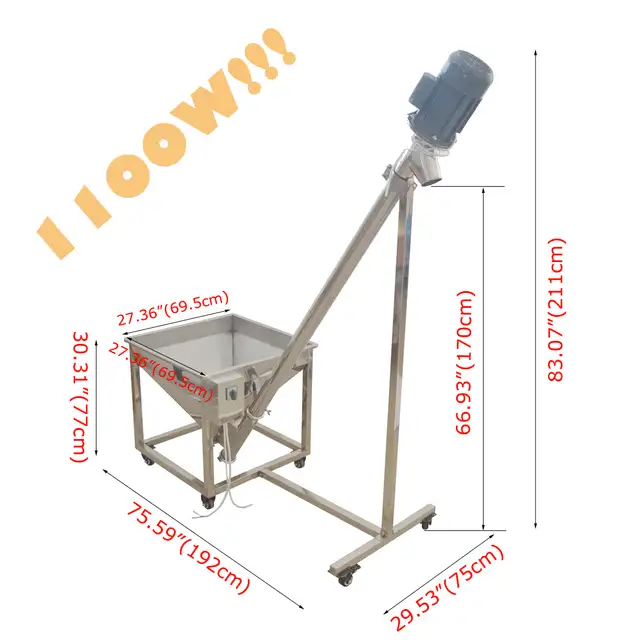

Product size: 75.59"*29.53"*83.07"(192*75*211cm)
Note: if you have other requirements, you can contact us to customize the machine

Method of wire connection
Warning: Before use, please follow the instructions in the manual to standardize the wiring, and do not arbitrarily connect without permission, otherwise the equipment will be damaged! ! !

I.The overall picture of the machine's three wires is shown below.
II.The spring feeding electrical wire is shown in the following figure.
III.The wire ② and the wire ③ are processed with a utility knife or pliers to peel off the outside of rubber layers, and each of the wire ② and the wire ③ has four exposed lines with different colors. Connect two lines with the same color (For example, the blue lines are connected with the blue lines, and the yellow lines are connected with the yellow lines), and then wrap the joints properly with insulation tape to prevent leakage.
IV.Connect the line A in the wire ① to the live wire, connect the line B to the naught wire, As shown in the figure below. (Note:The brown line is the live wire, the blue line is the naught wire, do not connect these two lines together!!)

In simple terms, the wire ② is connected with the wire ③ according to the corresponding colors of the lines, and then the two lines of the wire ① are connected to the live wire and the naught wire respectively. If you have other details, please contact us!

Product Features & Advantages

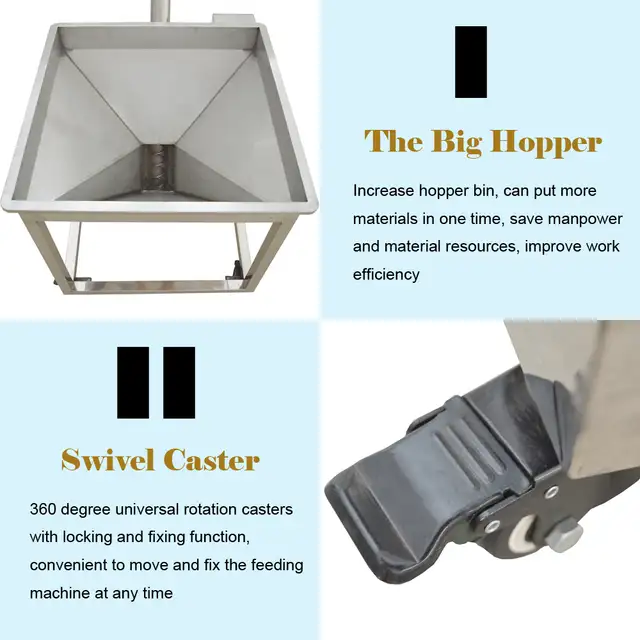

The Big Hopper
Increase hopper bin, can put more materials in one time, save manpower and material resources, improve work efficiency

Swivel Caster
360 degree universal rotation casters with locking and fixing function, convenient to move and fix the feeding machine at any time

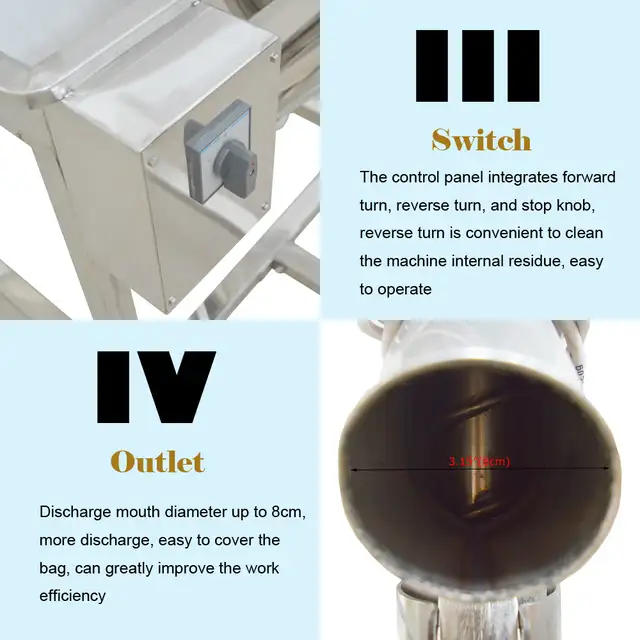

Switch
Functions of forward turn, reverse turn and stop are integrated on the control panel, reverse turn is convenient to clean residues inside the machine away, and the knob is easy to operate

Outlet
Discharge mouth diameter up to 8cm, more discharge, easy to cover the bag, can greatly improve the work efficiency

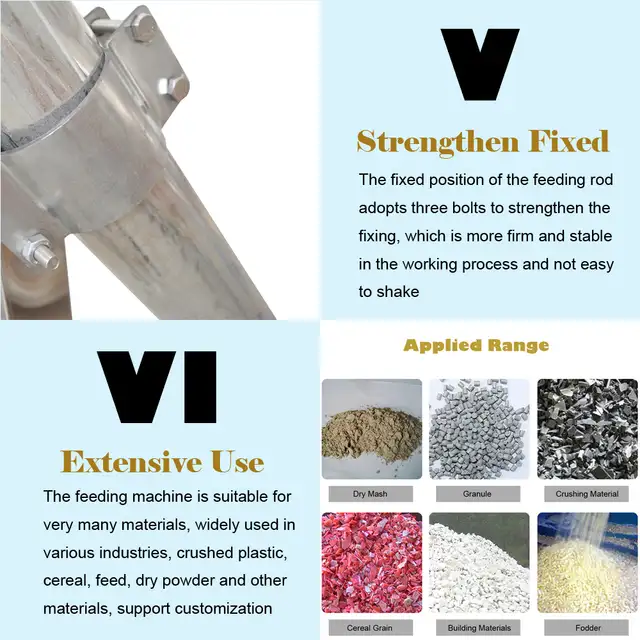

Fixing Strengthening
Fixing of the feeding rod is strengthened with three bolts, and the feeding rod is firmer and more stable in the working process and is not prone to shake

Extensive Use
The feeding machine is suitable for vary many materials, such as crushed plastic, cereal, feed and dry granules, is widely used in various industries, and can be customized.

- Installation is convenient and portable, for example, the same material are used by more material mixing machines, material mixing and feeding are conducted by one machine at the same time, more troubles from artificial processing are avoided, the feeder is more efficient, feeding can be safer and saves more time, and the feeder reduces the labor intensity of the workers.
- the design is reasonable, the operation and maintenance are convenient, compared with the vacuum feeding machine, it can avoid the trouble of cleaning the filter regularly.
- The machine can be used in a wide range of materials, can be used for mixing the granules of granules materials and crushed materials. It can also be used for transporting granules in the process of pharmaceutical chemical production.
- Less energy consumption, only about one third of the stainless steel used in traditional vacuum feeding machine, with better durability.
- Lightweight stainless steel material, lighter weight, more convenient to move and handle the machine.


Item Included: 056005
Spring Feeder *1 The wiring diagram *1





Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
