Item number: 006854
-

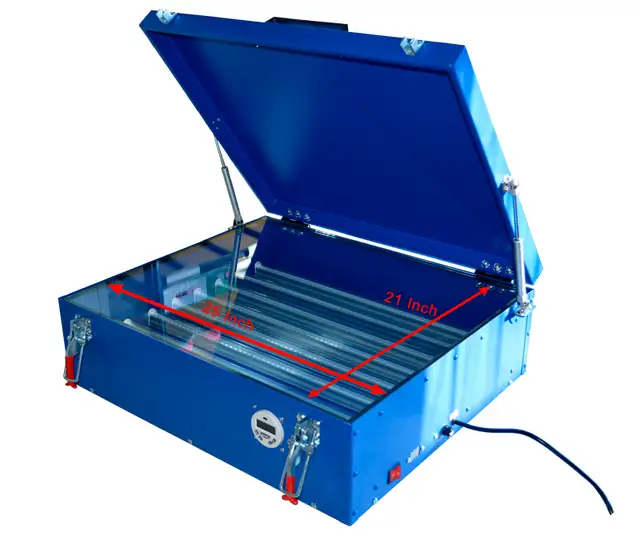

1. Max screen frame size: 21 X 25 inch (54x64 cm external diameter)

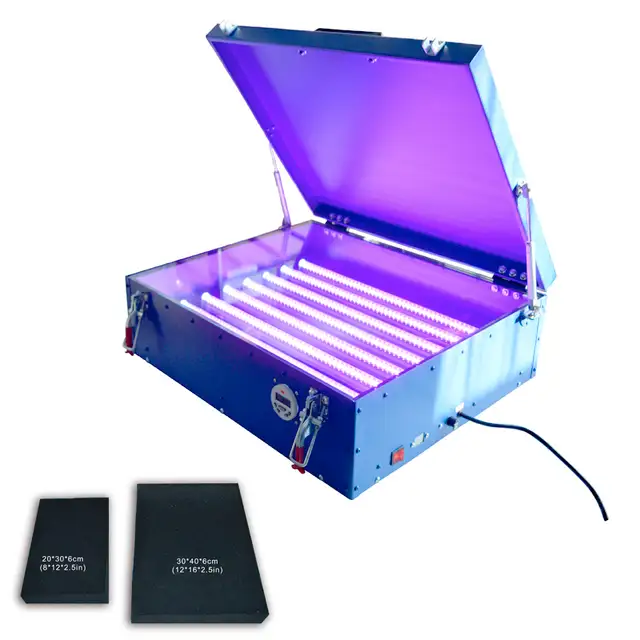

2. With 8 LED ultraviolet lights
3. Equipped with 8mm tempered glass , keep safety when it was broken
4. Timer will turn off the light automatically according to the setting. This setting can be kept and repeatedly used unless you change the exposure time.

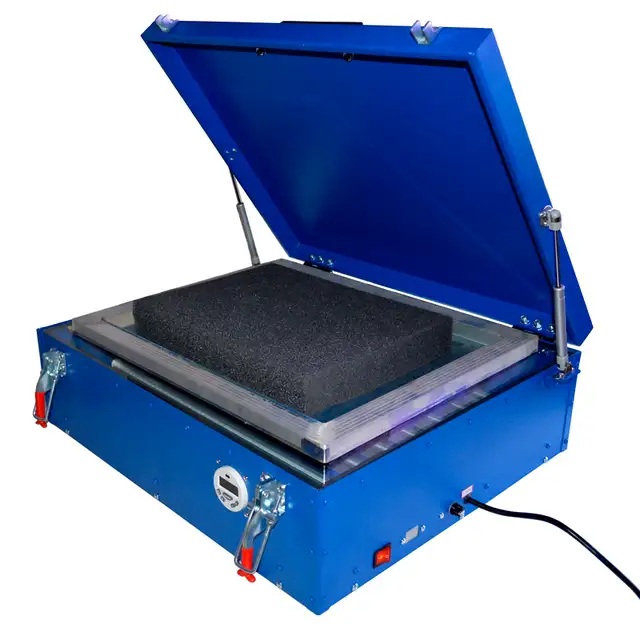

5. Send 2 black sponge covers on the plate to get a better exposure result.
Count range: 1 second--- 99 hours 59 minutes and 59 seconds
Working temperature: - 10 ℃ ---- 40 ℃



Notice:
Different brand emulsion will need variety exposing time, operator need to test with
this machine and set the best exposure time.

Exposure size: 21X25 inch
Product Color: blue
Voltage: 220v/110v universal type
Plug: American standard
Machine material: steel plate
Machine surface treatment: Electrostatic spraying
Machine size: 26x22x9 inch (67x57x23cm)
Net weight: 79 lb/ 36kg
Gross weight: 90 lb/ 41kg
Packing size: 30x27x12.4inch (77x68x31cm)

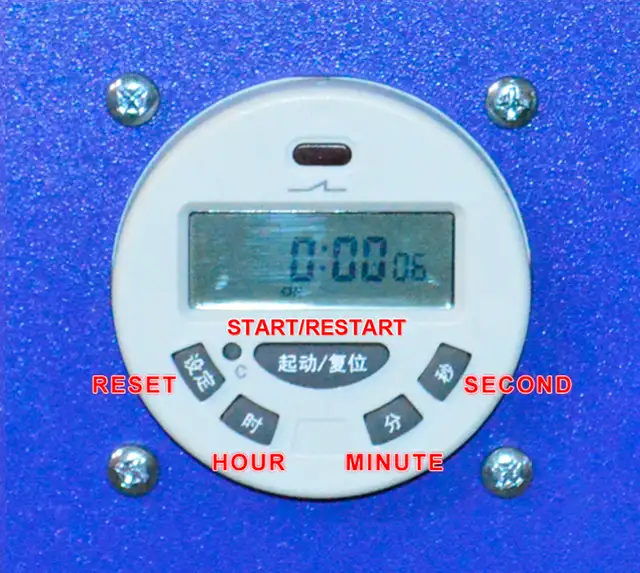

Countdown Timer Using Method

1. Before using, please press the "C" button to reset, it will display 00:00 00
and flash.

2. Press the "hour" "minute" and "second" button separately to set the countdown
time, then the screen shows "ON"

3. Press the "start/restart" button to start work.

For example: you need to set the exposure time to be 5 minutes 30 seconds:

1. Press the "C" button to remove the original setting;

2. Press the "minute" button to set to be "5"; press the "seconds" button to set to be "30"; then press the "start/restart" button to start the machine, and the light is on.

3. After 5 minutes 30 seconds, the light will be turned off automatically.

If this setting does not need to be changed, it will be saved automatically. When the machine starts again, the timer will start again from 5 minutes and 30 seconds.

Item included: 006854
1 set 21x25 inch LED exposure unit

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
