Item number: 028363
-
Product Overview
Micro electromagnetic vibrating feeder is widely used in various industries such as light industry, chemical industry, food, food, grinding, etc. It is used in the feeding, batching and quantitative automatic packaging of powder and granular materials, and can realize the production process centralized control and automatic control.

Product Parameters
Model: GZV-8
Voltage: 110V
Power: 100W
Production capacity: 4T/h
Vibration frequency: 3000r/min
Double amplitude: 0.06"(1.5mm)
Package size: 47'*18.5"*22" (120CM*47CM*58CM)
Net weight/Gross weight: 177LB(80.5KG) / 217LB(98.5KG)

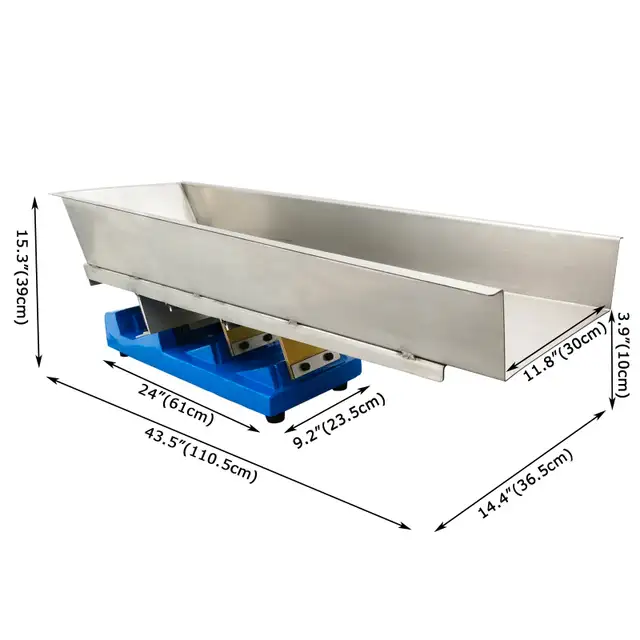

The dimensions of other models are as shown in the picture below, if you need other models, please contact us.

Product Features & Advantages
1.Electromagnet
The electromagnet adopts high-quality silicon steel sheet and pure copper coil, adopts resonance principle, low power consumption, durable and high feeding accuracy.


2..Shock Absorber
The three shock absorbers before and after the machine are made of thickened resin, with good elasticity and toughness, not easy to break, and long service life.



3.Non-slip Foot Mat
With good anti-slip, slow shock, corrosion resistance and other functions, stable support, can prevent the machine from working deviation.

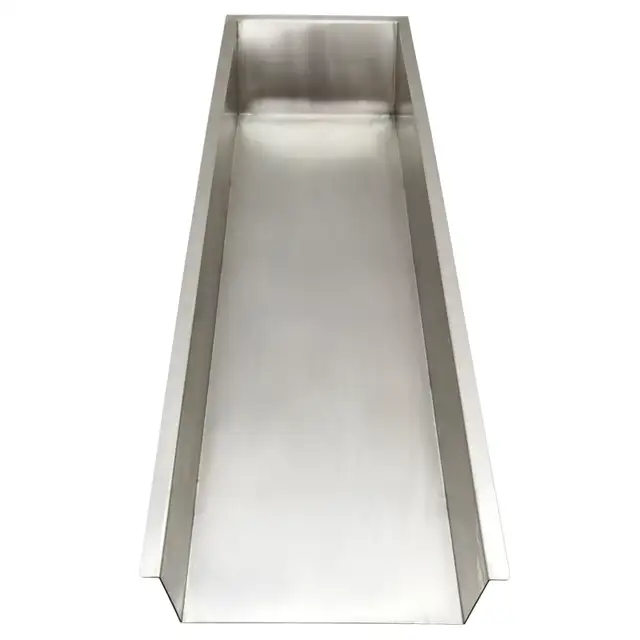

4.Feeding Chute
Oversized feeding trough, made of thickened 201 stainless steel, scientific and reasonable structure, uniform feeding and low loss. High working efficiency.

- The wire is made of pure copper wire material, simple structure, stable operation and long service life.
-The base has been thickened and weighted, and the design is scientific and reasonable to ensure the stability of the center of gravity during work, without deviation.

- Small size, light weight, reasonable center of gravity, simple structure, convenient installation and maintenance.

- The material flow can be changed and opened and closed instantaneously, so the feeding precision is high.

- Using the resonance principle, the double mass works in a low critical near-resonance state, so the power consumption is low.

- Using thyristor half-wave rectifier circuit, the feeding amount can be adjusted steplessly.

- Since the material in the feeding trough is in a jumping motion, the wear on the feeding trough is very small.

- This series of feeders are not suitable for materials above 300°C and places with explosion-proof requirements.


Item Included: 028363
Electromagnetic Vibrating Feeder *1
