Item number: 230039
-
Parameters:
Voltage:110V
Power Type: pneumatic
Pressure:1763lb/800kg
The die hole diameter:0.98inch/2.5cm
Working Countertops Size:10*10inch/26*26cm
Tracheal diameter:0.47 x 0.31inch/1.2 x 0.8cm
Adjustable cylinder size: Adjustable cylinder size:SCJ4.9*3.9-1.9inch/SCJ12.5*10-5cm
Working Height:9.8"/25cm
Control form: people work
Layout form: vertical
Rated pressure :0.4-0.7Mpa

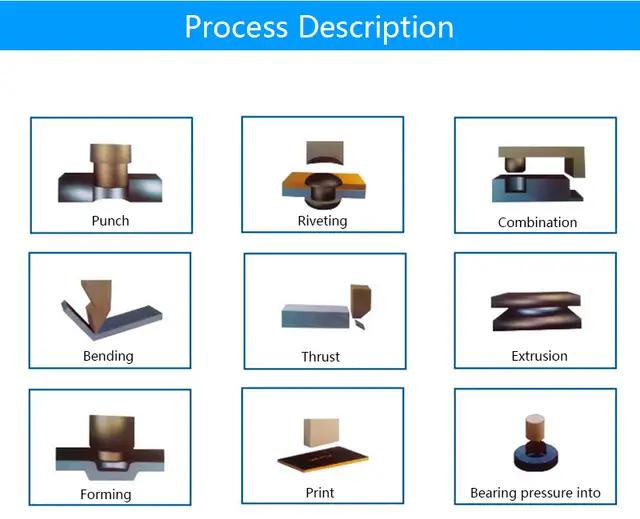

Scope of application:
Suitable for electronics, electrical appliances, instruments, meters, cameras, watches, jewelry, hardware and garment, shoes and hats.

Features:
1.Compressed air as a power source, high efficiency and easy to operate, can reduce labor, suitable for manual operation, automated assembly line integration of operations.

2.Simple structure, easy to operate, cheap, superior performance, no noise when the hydraulic system and the generated electric standby, saving power consumption to reduce production costs, with very high price.

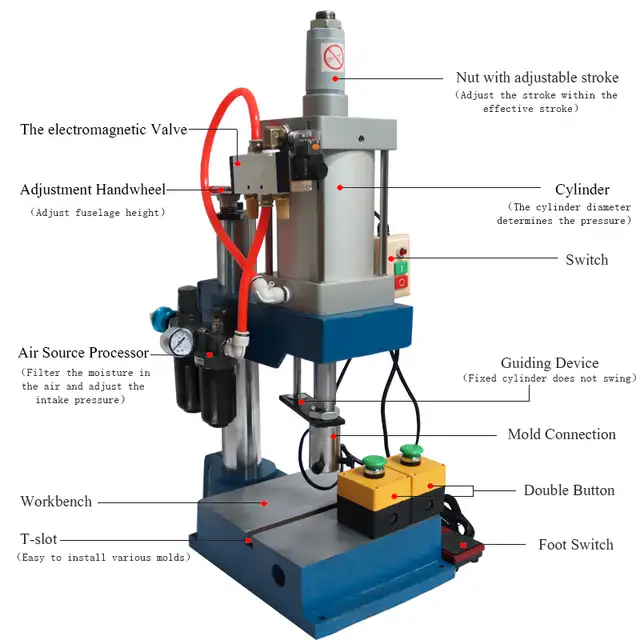

3.Easy to adjust output, simply adjust the air pressure to reach the desired pressure is adjustable, high yield. Equipped with anti-rotation guide rods, guide plate, high precision, able to adapt to high-speed precision punch overload.

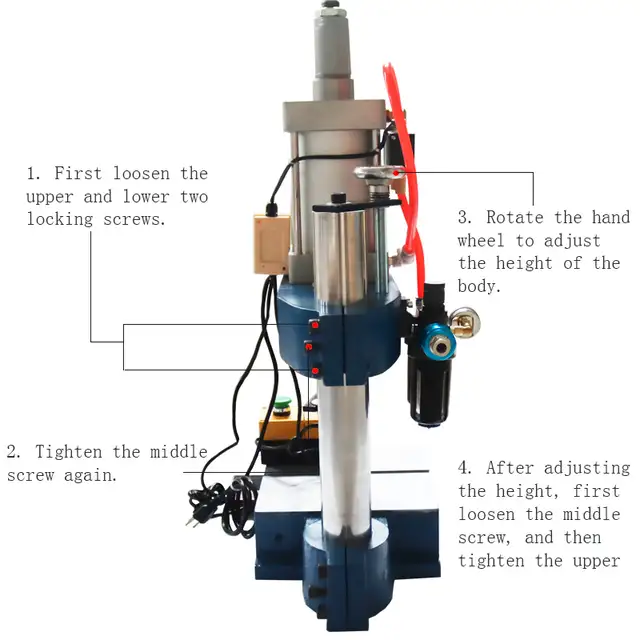

4.According to the product or mold, adjust the height, speed, stroke, stress magnitude and time stamping.

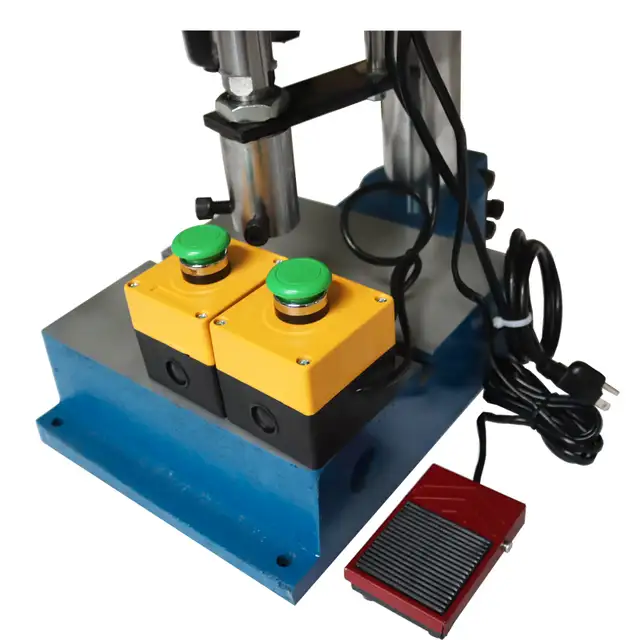

5.Can be used with both hands on the control button or foot switch, controls and pre-control devices comply with the safety standards to ensure the safety of operating personnel.

Item included: 230039

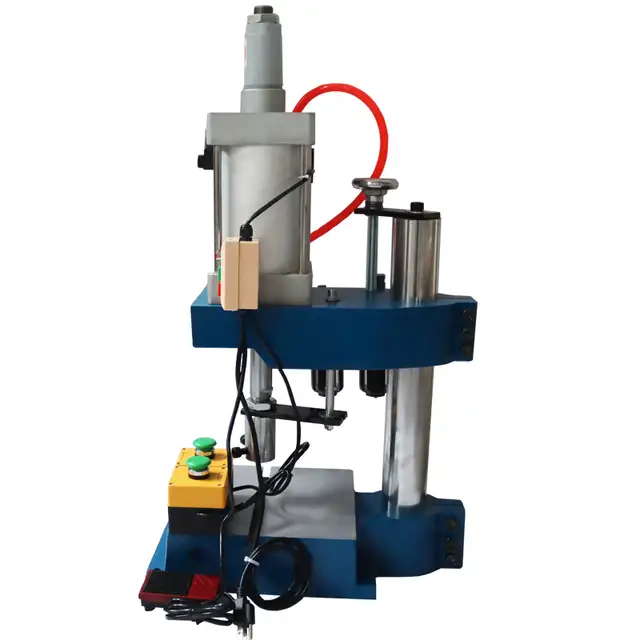

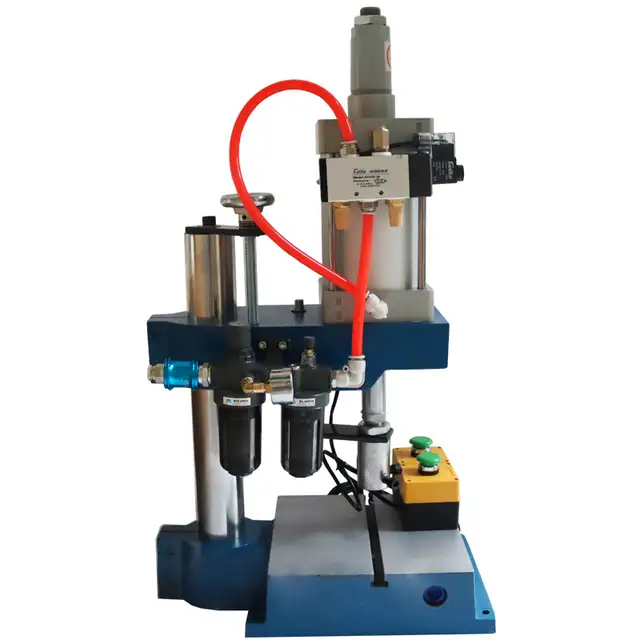

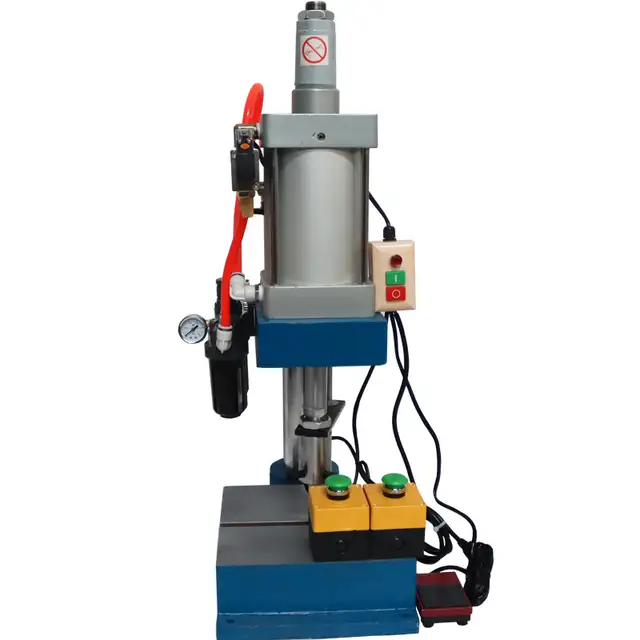

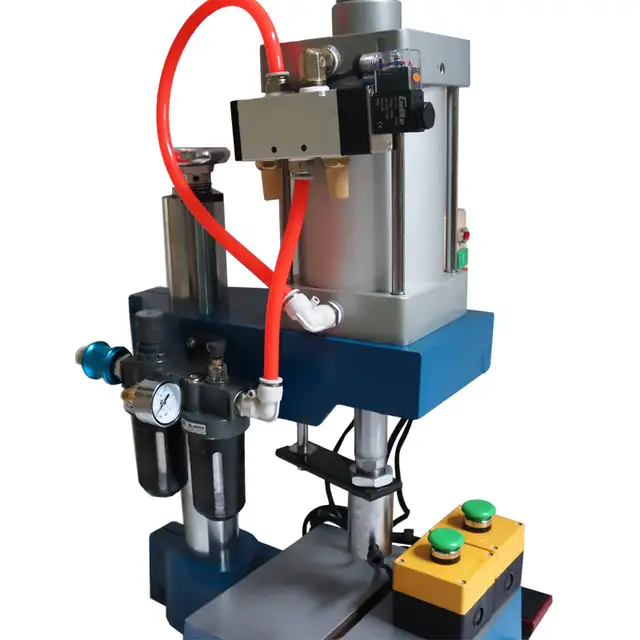

1 Set of 1763Lb/800kg Pneumatic Punch Machine No Display Controller
