Item number: 160434
-

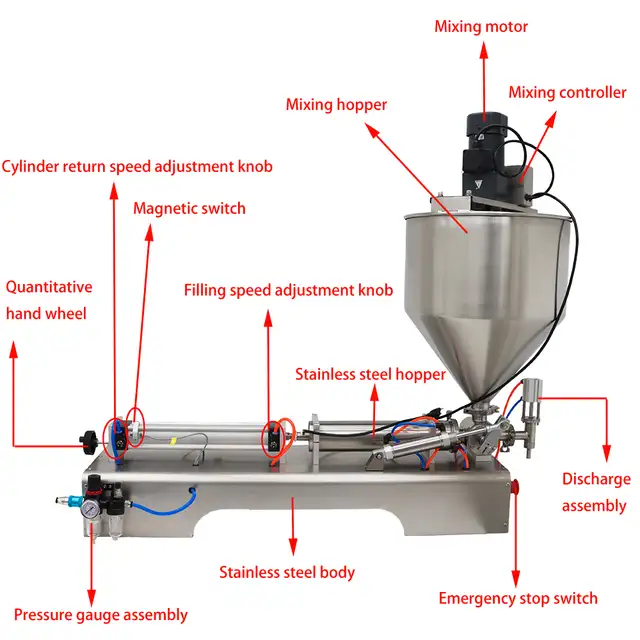

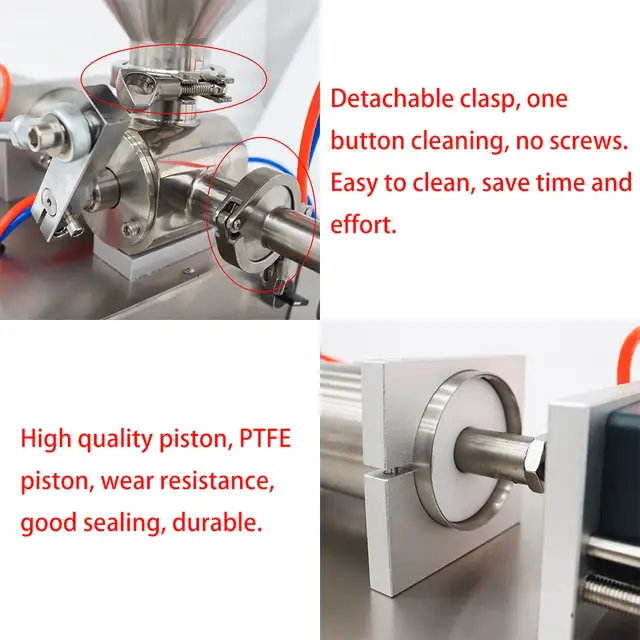

The semi-automatic piston filling machine produced by our company has the advantages of simple and reasonable structure, high precision, convenient cleaning and simple operation. The contact area with the material is made of 304 stainless steel, in line with GMP requirements. The sealing parts are made of PTFE and silica gel. They have the advantages of corrosion resistance, aging resistance, high temperature resistance, good sealing and so on. They are ideal filling equipment for food, pharmaceutical, chemical, daily chemical, petroleum, pesticide and other industries.

This machine has two methods, foot switch filling and continuous automatic filling; the two filling methods can be switched arbitrarily. It is recommended to use the foot switch for filling at the beginning.

1.This product is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.
2.The filling volume range is between 50ml - 500ml. And the machine should connect air compressor for working.First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.

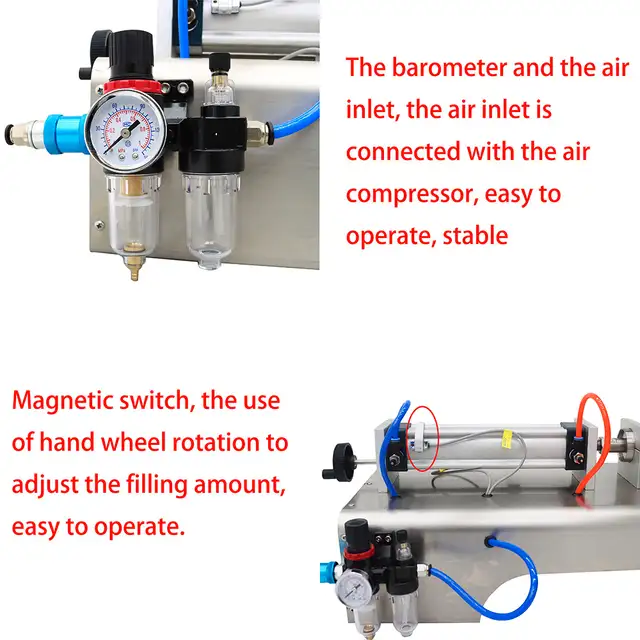

3.This series of models need to be equipped with external air compressor, air compressor exhaust should not be less than 0.1m3/min, equipped with pressure should be able to adjust to a range of 0.4-0.9Mpa.
4.For the materials with large filling viscosity and poor fluidity, which need heating or pressure , please consult us to recommend purchasing the mixing model, heating model and heating mixing machine.

Note1:We only sell machines, do not match air compressors, customers need to buy their own.
Note2: If you are not sure whether the material can be filled with this machine, please consult before placing an order

Product Parameter
Voltage: 110V/60Hz
Material The surface is stainless steel
Pneumatic
Filling volume (ml): 50-500ml
Filling accuracy (FS) ±0.5%
Production capacity (cycle/min): 1-25
Applicable tolerance (m3/min): ≥0.1

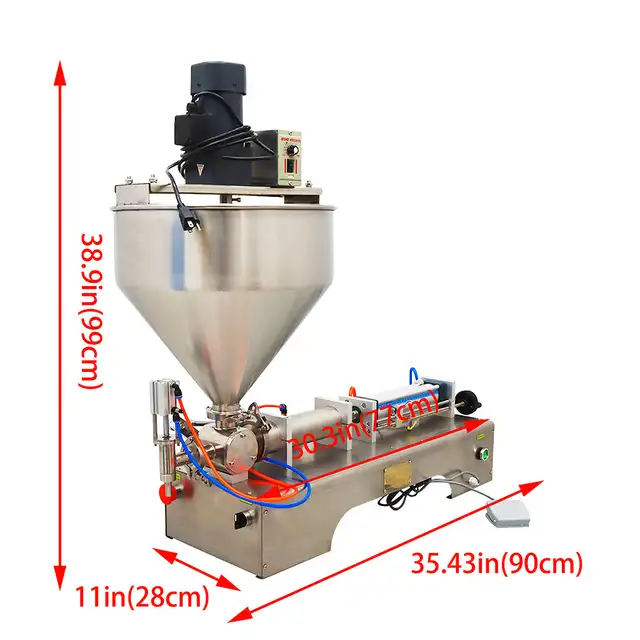

Product size: 30.3*11*38.97in(77*28*99cm)
Net weight: 30kg (66lb)
Applicable pressure (Mpa): 0.4-0.9


Product Safety Precaution
This series of filling machine is only suitable for filling liquid, low concentration paste .
To ensure safe production, please read the following precautions carefully:
1. Use a power supply and air source that conforms to the requirements of this machine . The stability of the air source must be maintained under continuous working conditions.
2. Before disassembling, washing or repairing this machine, please be sure to turn off the air source and power supply first.
3. The rear half of the machine (near the control buttons) and the lower part of the machine frame are equipped with electrical control components. Under no circumstances should the body be washed directly with water, otherwise there will be danger of electric shock and damage to the electrical control components.
4. After the power switch is turned off, there is still voltage in some circuits in the electrical control of this machine. When repairing the control circuit, please be sure to unplug the power cord.
5. Do not keep your eyes close to the filling head during work, pay attention to personal safety.
6. Do not put your hand on the central axis of the cylinder during the work process, pay attention to pinching your hands.
7. Before using materials for filling, it is best to clean the machine with detergent first, and then clean it with clean water, so as to avoid oil stains or foreign materials and materials mixing, which will lead to waste of materials and damage to the machine.

Advantages
1. 304 stainless steel mixing bucket for more convenient filling.
2. One touch operation, convenient and simple.
3. Rotating and stirring, material stirring evenly, suitable for precipitation, sticky materials.
4. The use of diameter head, particulate material will not be blocked.
5. Imported motor, lasting and durable, strong power.
6. Imported pump, can be customized according to the volume of filling models.

Affected by the following factors at work:
1. The factors that affect the filling accuracy are: the stability of the compressed air, the uniformity of the material, the filling speed, etc.

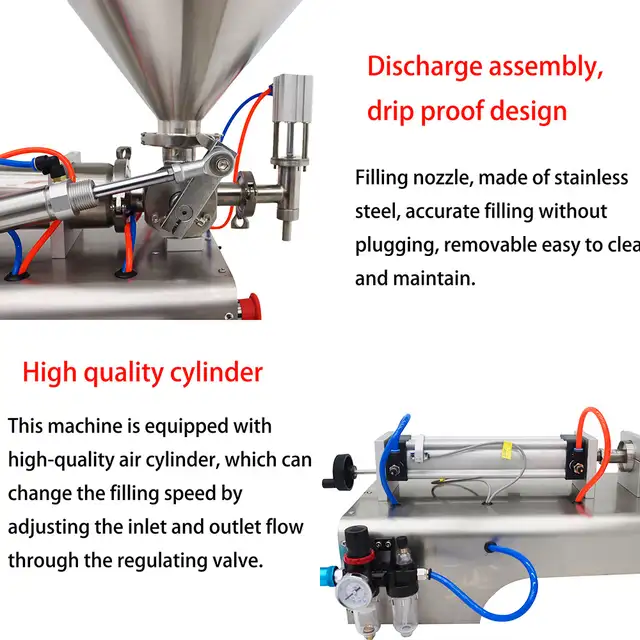

2. The factors that affect the filling speed are: the viscosity of the material, the stroke of the cylinder, the size of the cylinder, the size of the discharge nozzle, the proficiency of the operator, etc.

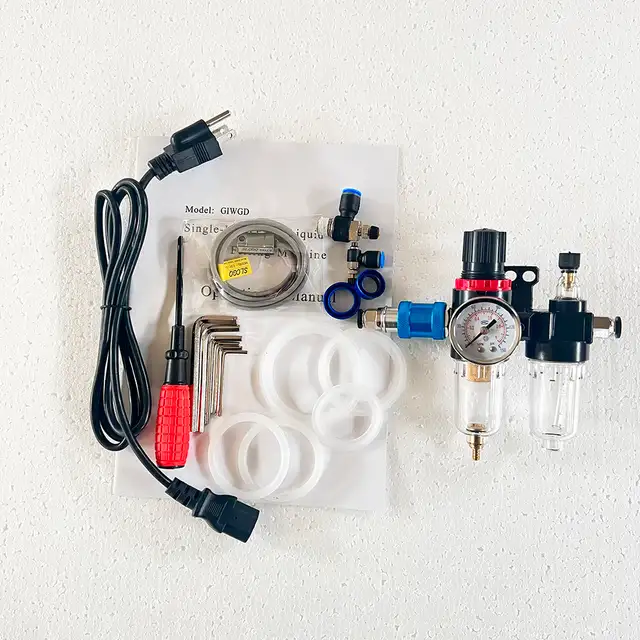

Item included: 160434

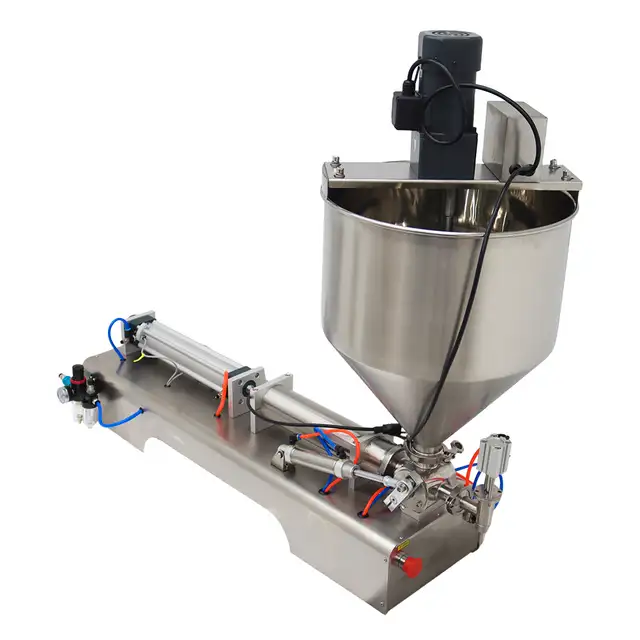

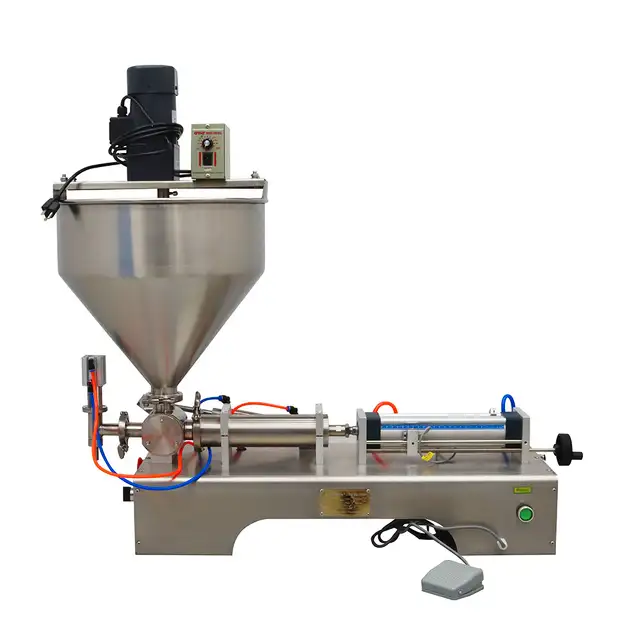

1*110V 50-500ml Paste Vertical Mixing Machine
