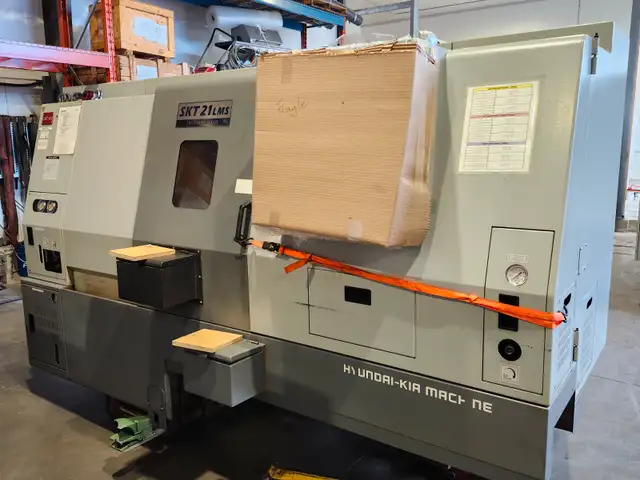

2007 Hyundai SKT 21LMS Turning Center w/ Sub-spindle Live Tool Turret

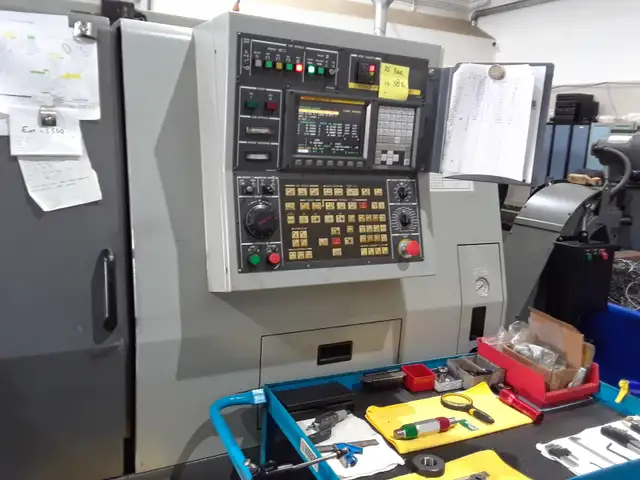

CNC controller Fanuc
Swing 21.7"
Maximum cutting diameter 13.8"
Maximum workpiece length 20.9"
Travel X axis 8.7"
Travel Z axis 21.7"
Ways Schneeberger Roller Guide
Spindle A2 6
Second Flat Nose
Max bar work diameter Left (spindle Lenght 46.36") 2.56"
Max bar work diameter right 1.375"
Max RPM L / R 4000 L / 6000 R
C Axis Left spindle C Axis
C Axis Right spindle 5 Degree Indexing
Rapid traverse X axis 1417 ipm
Rapid traverse Z axis 1417 ipm

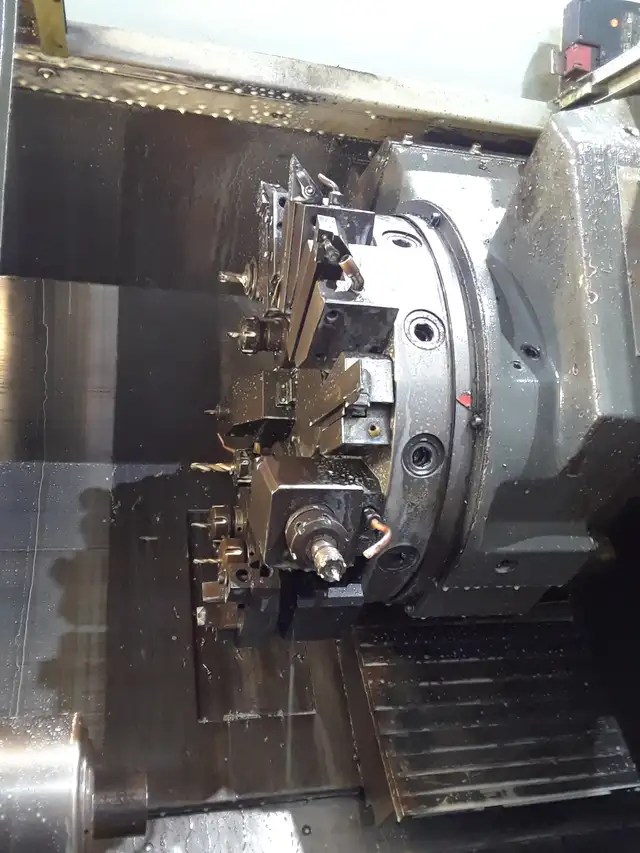

Turret 12 Tools
Tool size (Square Shank) 1" sq
Tool size (Round shank) 1.5"
Index time(1 station/1 full rev) .28 sec/
Chuck 8"Main 5.3" Second
Horsepower 20 HP
Torque 211.3 ft-lbs (L) 17.4 ft-lbs (R)
Work light Yes
Weight 9,480 lbs
Coolant system Yes
Autmatic Tool Setter Yes
Standard tooling package Yes
Parts Catcher Yes
VDI O.D. Holder-Front 2
VDI Face Holder 1
VDI Double OD Holder 1
VDI Double OD / ID Holder 1
VDI Double ID Holder 2
VDI ID Holder 1
VDI Live Tool Holder ( Axial ) 2
VDI Live Tool Holder ( Radial ) 2
Air Blow Yes
Chip Conveyor

Located- Edmonton, Alberta, Canada
