Item number: 056388
-

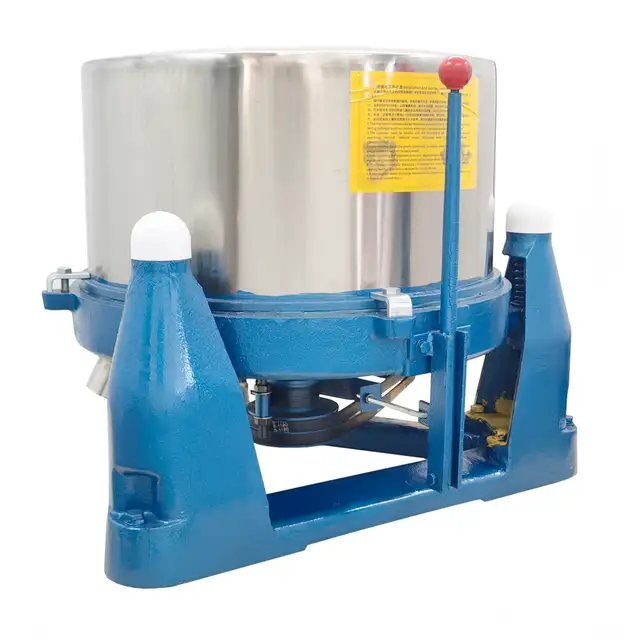

Product Overview
Mainly used for various textiles, clothing, feathers, printing and dyeing, food, hardware, chemical raw materials, latex products, etc. After cleaning, dehydration and drying. In industry, it is suitable for grinding, cutting and oil washing of various metal parts. Dehydration and degreasing of small hardware, electronic parts, iron filings, aluminum filings, copper filings.

Product Parameters
Voltage: AC220V/60Hz
Power: 2HP(1500W)
Phase number: Three
Max capacity: 55LB(25kg)
Drum rotary speed: 960rpm
Rated current: 6.3A
Motor speed: 1728rpm
Filter hole diameter: 0.24"(6mm)
Barrel material: Stainless steel

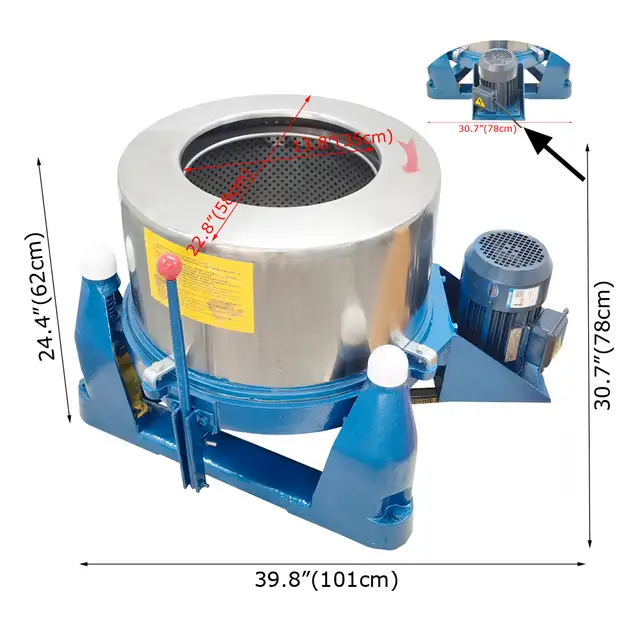

Package size: 43.3"*34.6"*31.9"(110cm*88cm*81cm)
Net weight/Gross weight: 419LB(190kg)/500LB(227kg)
Note: This machine comes with a four-pin plug, if you want to use wiring, please connect three fire wires.

Product Features & Advantages:

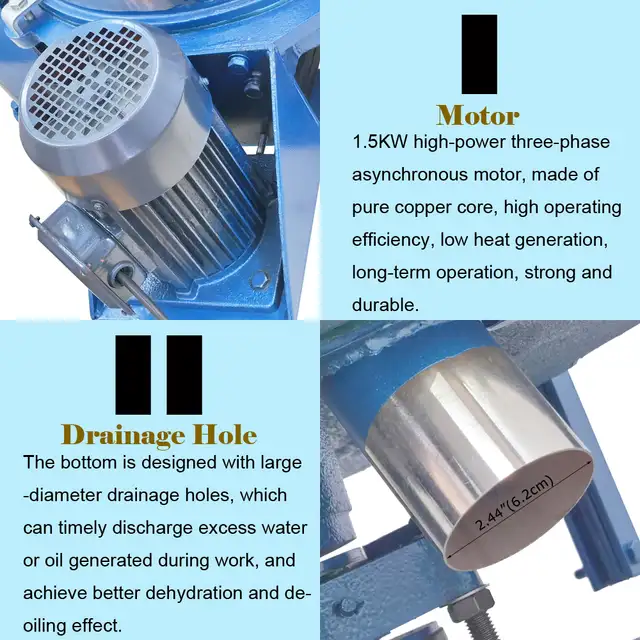

1.Motor
1.5KW high power three-phase asynchronous motor, made of pure copper core, high operating efficiency, low heat generation, long-term operation, strong and durable.
2.. drainage Hole
The bottom is designed with large diameter drainage holes, which can timely discharge excess water or oil generated during work, and achieve better dehydration and de-oiling effect.

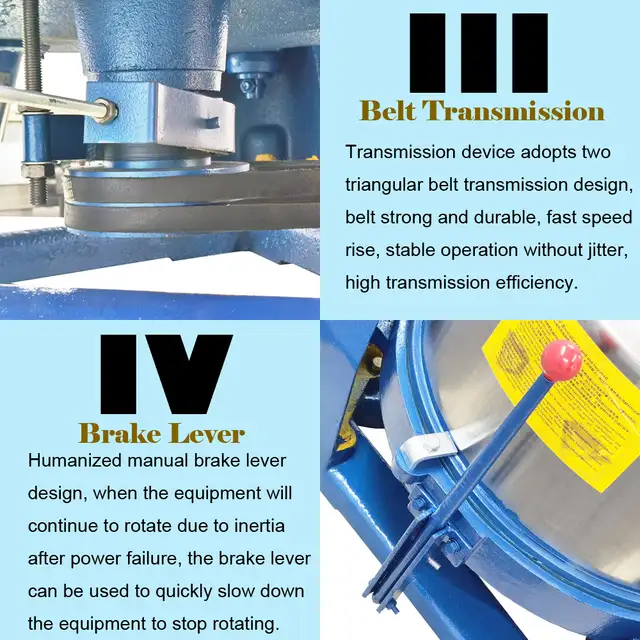

3.Belt Transmission
Transmission device adopts two triangular belt transmission design, belt strong and durable, fast speed rise, stable operation without jitter, high transmission efficiency.
4.Brake Lever
Humanized manual brake lever design, when the equipment will continue to rotate sue to inertia after power failure, the brake lever can be used to quickly slow down the equipment to stop rotating.

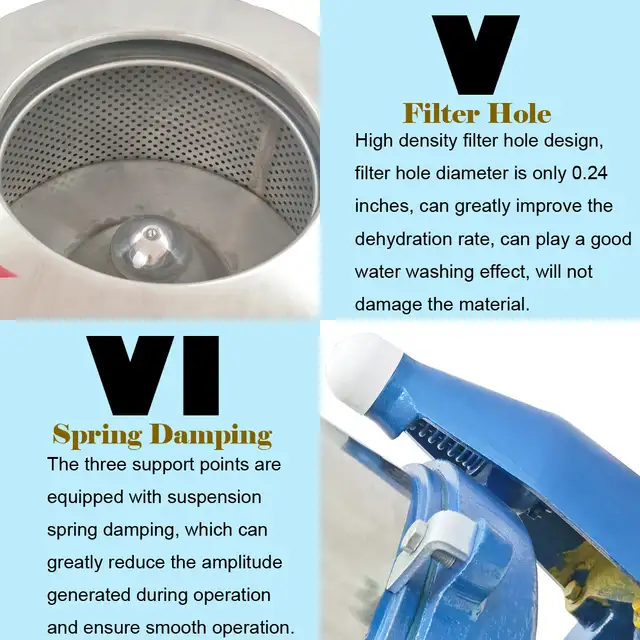

5.Filter Hole
High density filter hole design, filter hole diameter is only 0.24 inches,can greatly improve the dehydration rate, can play a good water washing effect, will not damage the material.
6.Spring Damping
The three support points are equipped with suspension spring damping,which can greatly reduce the amplitude during operation and ensure smooth operation.
- The machine base is made of cast iron, with heavy weight, low center of gravity, stable operation and not easy to shake.
- Equipped with a centrifugal starting flange, the machine can be started slowly, and its braking efficiency is high, which can quickly stop the drum.
- The main shaft is made of high-quality steel, equipped with two bearings, and the lower end is supported by a thrust ball bearing to reduce wear and save power.
-The structure is simple, the processing efficiency is high, the noise is low, and the use is simple and convenient.
- If you need a larger capacity, please contact us, the maximum capacity we can provide is 485 lbs (220kg).

Item Included(056388)

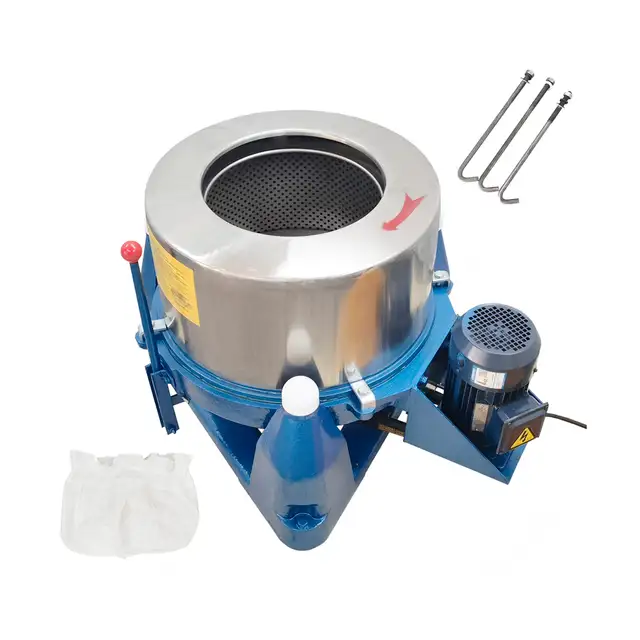

Centrifuge Machine *1 Fixing Screw *3 Filter Bag *1 English Manual *1
