Hightlights

Range: 1-200 mm/0.039-7.87 in

In/mm switchable

Large easy-to-read, graphics LCD

Auto power off

Can be used on rough surfaces

Wear resistant probe tip

Sturdy/compact gage design

Rugged carrying case



Application:

Measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries such as petroleum, shipbuilding, power station, and machine manufacturing.

Materials: Steel, Cast Iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.



Specifications

LCD display : 4 digits, 10mm LCD

Range : 1.0mm - 200.0 mm / 0.039 - 7.87 inch (45# steel)

Resolution : 0.1 mm / 0.001 inch

Accuracy : ± (0.5%n 0.1)

Sound velocity : 500 - 9000 m/s

Lower limit steel pipes:15x2.0mm,20x3.0mm determined by the transducer

Power supply : 4 AAA batteries

Operation Temperature : 0 - 50°C

Operation Humidity : < 80%

Unit size : 120 x 62 x 30 mm (4.7 x 2.4 x 1.2 inch)

Unit weight : 164g (batteries included)



Standard Delivery

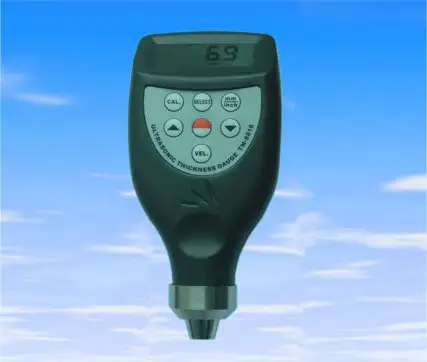

1 Thickness gauge (main unit) TM8816

1 Calibration block

1 Instruction booklet

1 Bottle of Glycerin

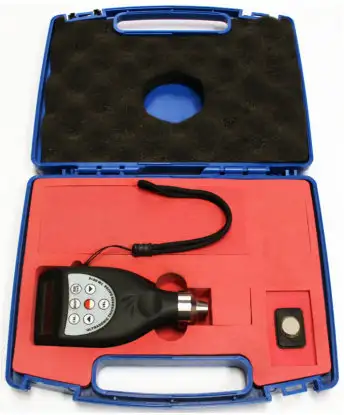

1 Blue carry case

Optional Software

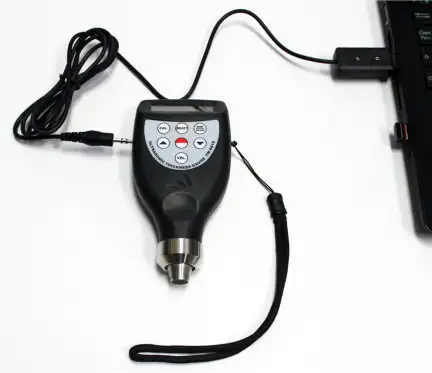

USB Cable and Software disc
1.5m cable
Download data to computer. It works with below meters.

RS232C Cable and Software disc
1.5m cable
Download data to computer. It works with below meters.
