Item number: 251040
-
Powder coating is a dry finishing process, using finely ground particles of pigment and resin that are generally electrostatically charged and sprayed onto electrically grounded parts. The charged powder particles adhere to the parts and are held there until melted and fused into a smooth coating in a curing oven. Before coating, the parts to be coated are first pretreated similarly to conventional liquid coated parts. The pretreatment process is normally conducted in series with the coating and curing operations.

Parameters:
Input Power Voltage: 110V-120V AC
Input Power : 40W
Electromagnetic valve control power voltage : 24V DC
Input air pressure: 0-0.6Mpa
Output air pressure: 0-0.5Mpa
Max. Air consumption: 13.2m³/h
Output powder volume: Max. 500g/min
Output power voltage: 0 -100KV
Polarity: Negative
Output current: 0-150uA
Gun Weight: 480g
Length of Gun Cable:4m
Powder Hopper Volume : 45L
Package Size: 69*58*54cm(27.17*22.83*21.26inch)
Package Weight: 29KG

Features:
1. WX-101 Electrostatic Powder Coating Machine is our classical model, very fine in quality, but lowest price, which is used for spraying workpieces with flat and smooth appearance and workpiece with no deep corners.
2. This electrostatic powder coating system with circuit protection, voltage self-adjusting function, to ensure a perfect spraying effect.
3. This electrostatic powder coating equipment is widely used in the home appliances, hardware, security door (window), fins, architectural, auto parts, sports equipment, medical equipment, aluminum and other industries.
4. Powder coating applicable: All kinds of powder without the metals.

Packing list:

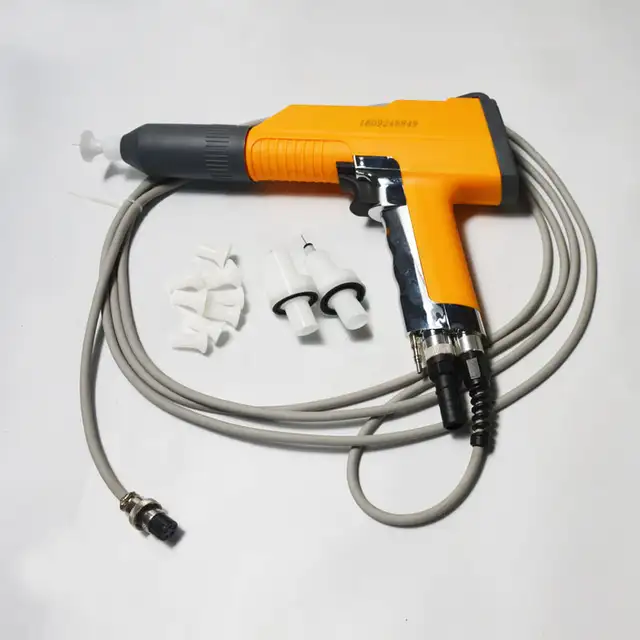

Manual Powder gun with gun cable x 1
Powder Gun Spare Parts x 1 kit

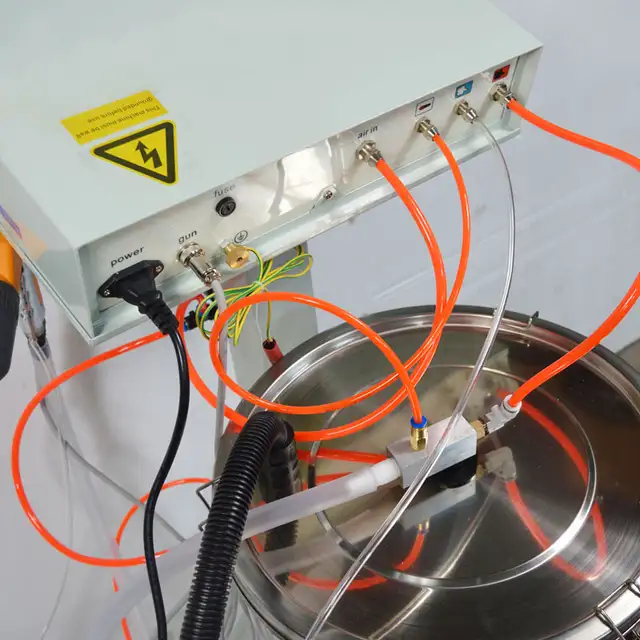

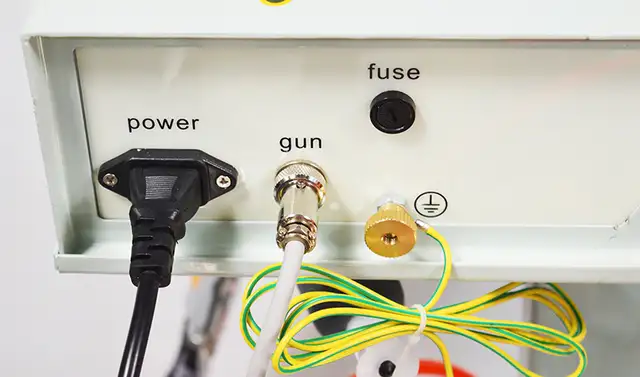

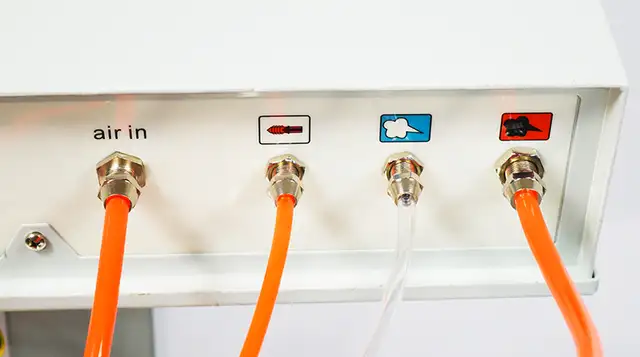

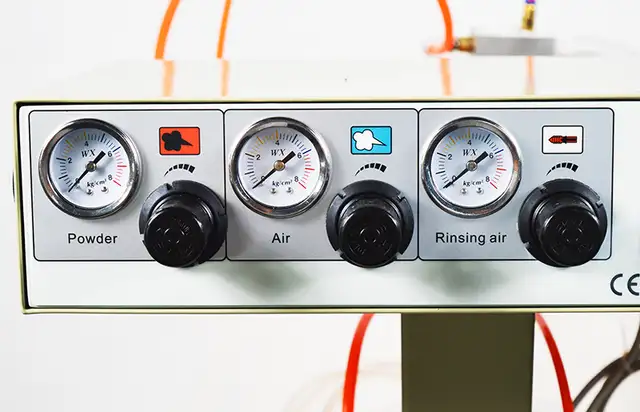

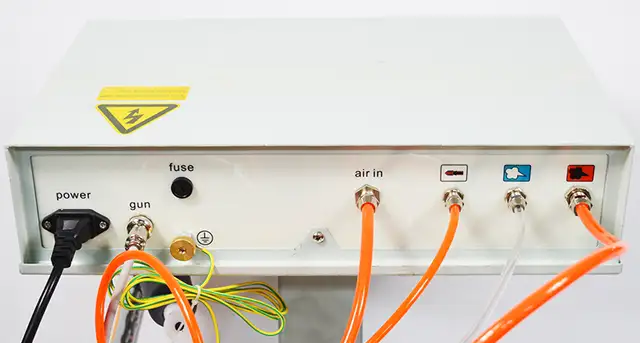

Control Unit x 1
Fluidized Powder Hopper x 1
Powder Injector x 1
Trolley x 1
Oil-water separator x 1

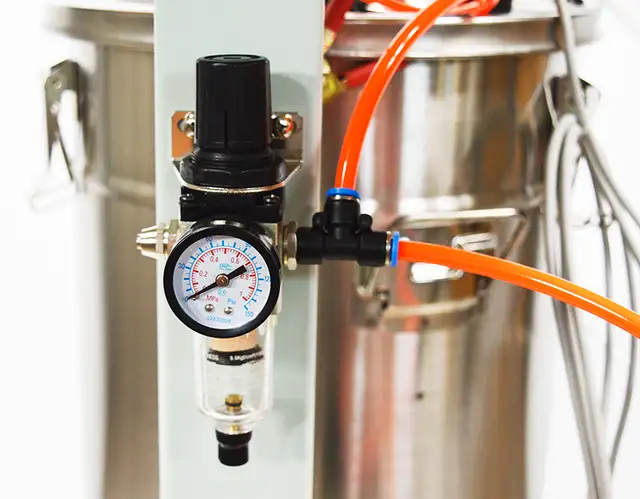

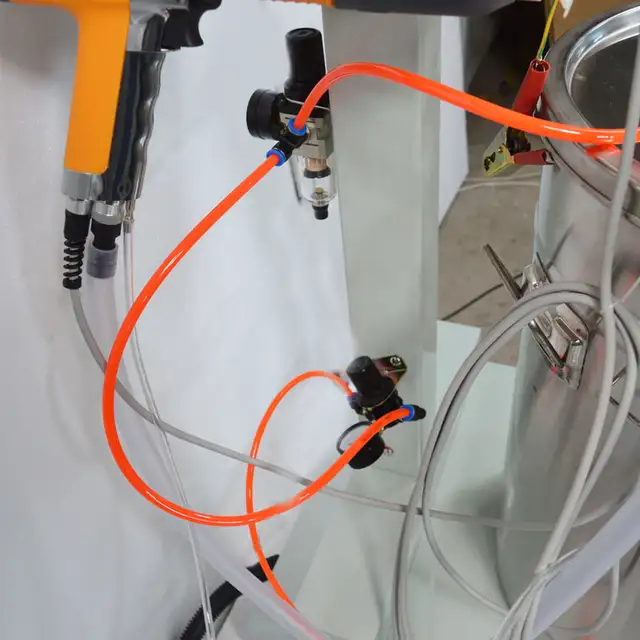

Air pressure regulating valve x 1
Powder Hose ,Air Tubes ,Grounding line: 1kit

Item included: 251040

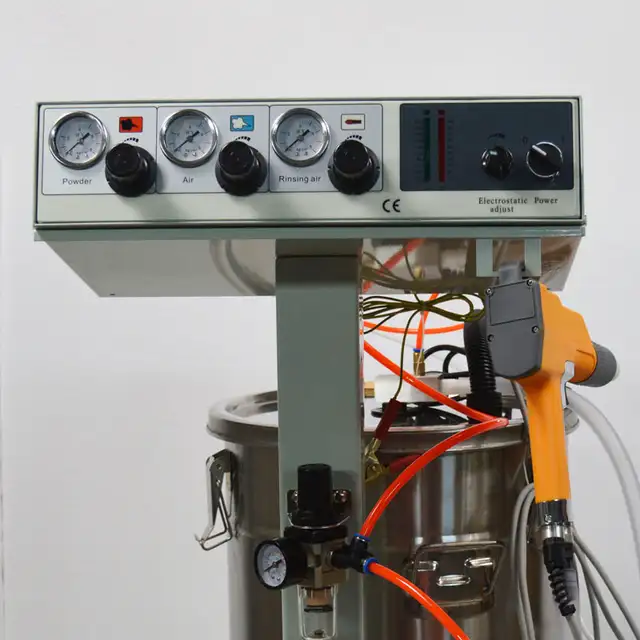

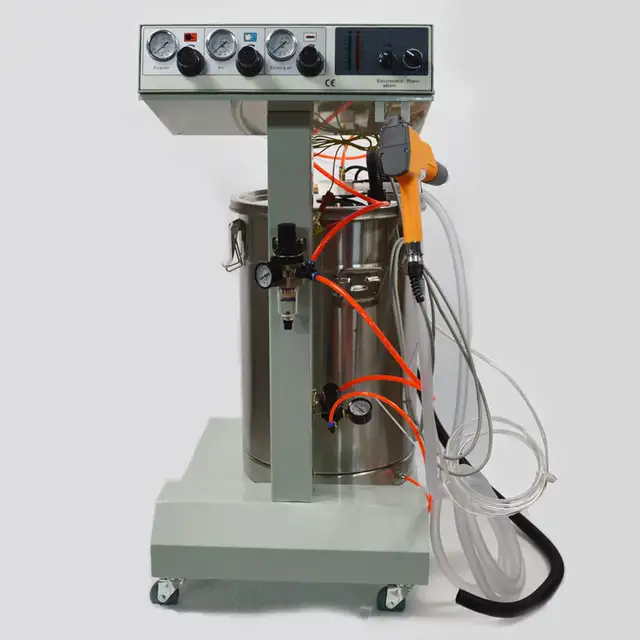

One Set WX-101 Electrostatic Powder Coating Machine 110V
