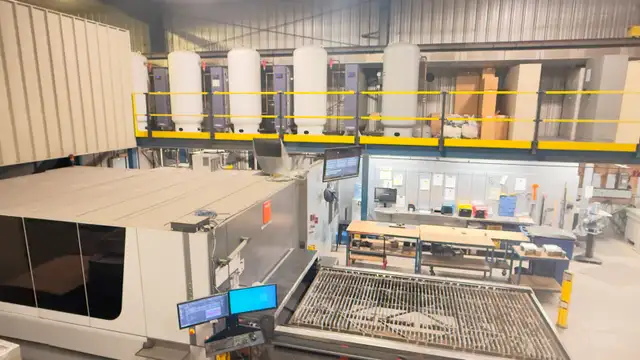

Nitrogen Generator System used for Laser cutting
Parker/Kaeser Nitrogen Generation System has been specified based on requirement of up to 100 m3/hr at pressures up to 450psig, as well as providing an additional 100cfm of compressed air for general shop use. This system will maintain 100ppm oxygen content (99.99% pure nitrogen) @ full load conditions, and is comprised of four individual nitrogen generation ‘banks', which allow for versatility and redundancy versus a single twin-tower system. In the event that 99.95% nitrogen purity is acceptable, only three nitrogen generation banks will be required to meet your flow demands.

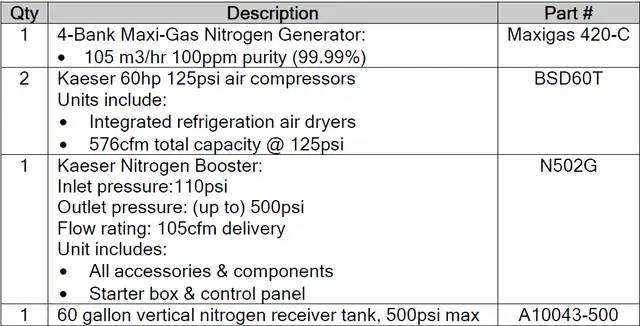

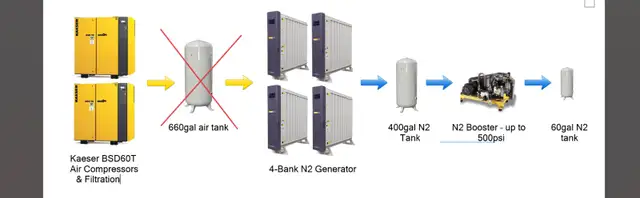

This is a on demand system which consist of:

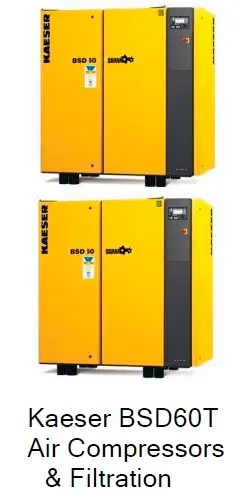

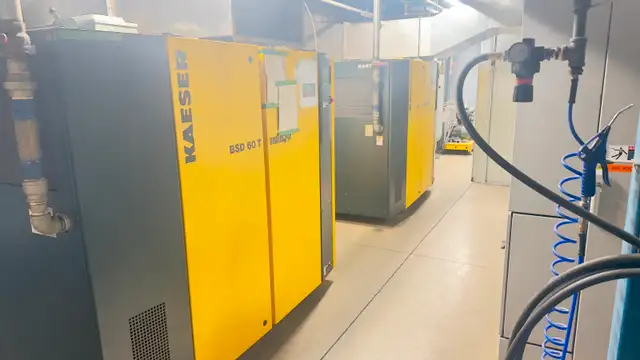

• Two Kaeser 60hp premium-efficiency air compressors with integrated air dryers
• Kaeser 4-stage inline filtration system
• Oil separation system.

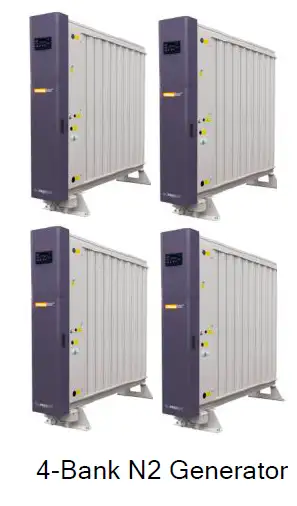

• Parker 4-bank N2 Generation System, 100m3/hr @ up to 450psi

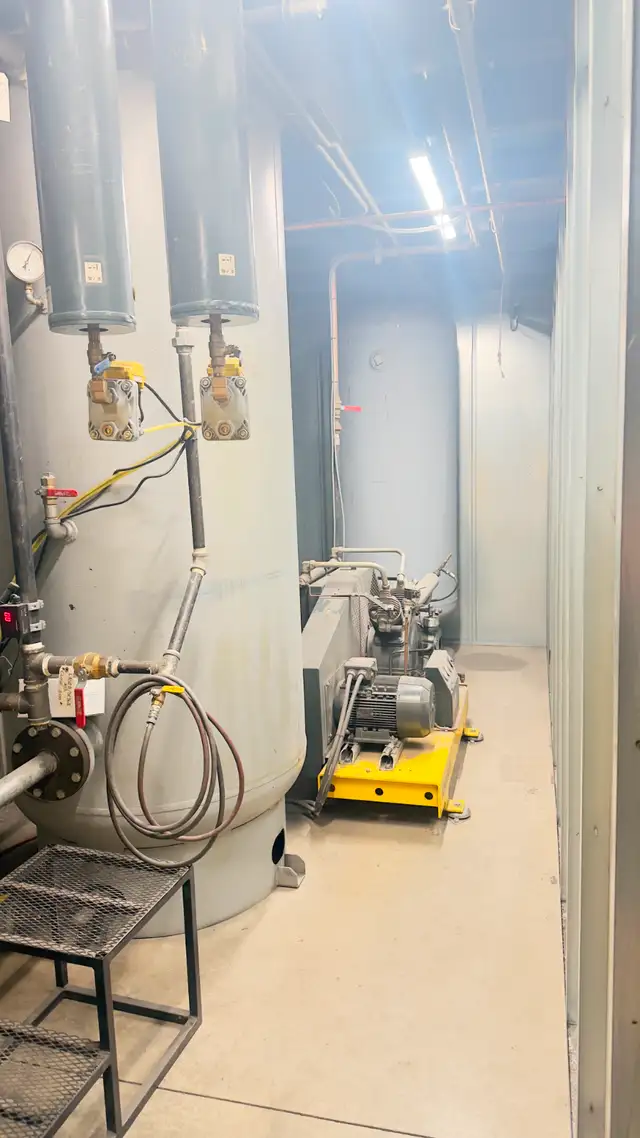

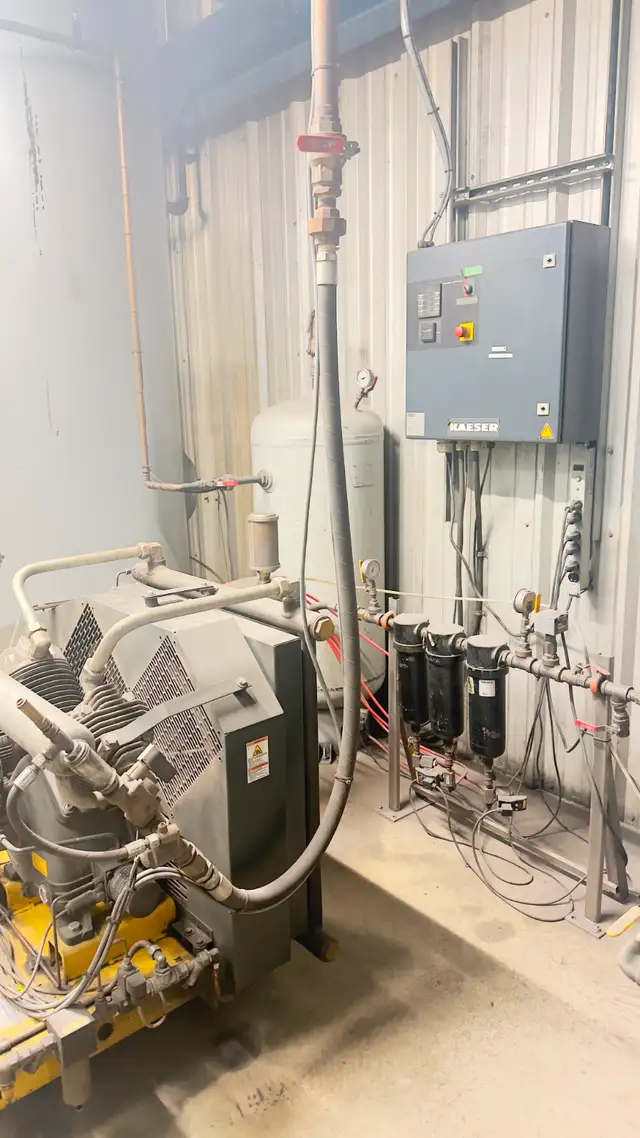

• Kaeser N2 pressure booster, 500psi max

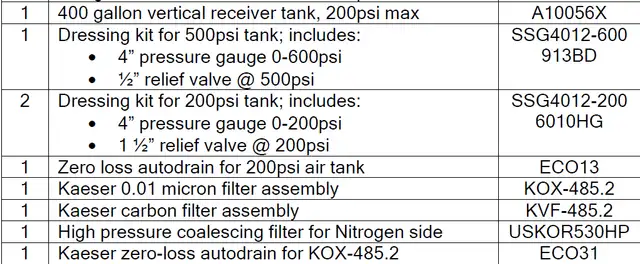

• 400 gallon nitrogen receiver tank, 200psi
• 60 gallon nitrogen receiver tank, 500psi
• Dressing kits for air and nitrogen tanks
• Layout, Commissioning & startup support from our vendor depending on location and requirements are available. (additional cost)

System is currently in use and can be seen by appointment.

Well maintained by outside vendor, All service records available.
