Item number: 028033
-
Product Overview
The miniature lathe is mainly used for processing the end faces of various rotary surfaces and rotating bodies. For example, the lathe is used for turning the inside and outside of cylindrical surfaces, conical surfaces, ring grooves, forming turning surfaces and turning the end faces and all kinds of commonly used metric threads.

Product Parameters

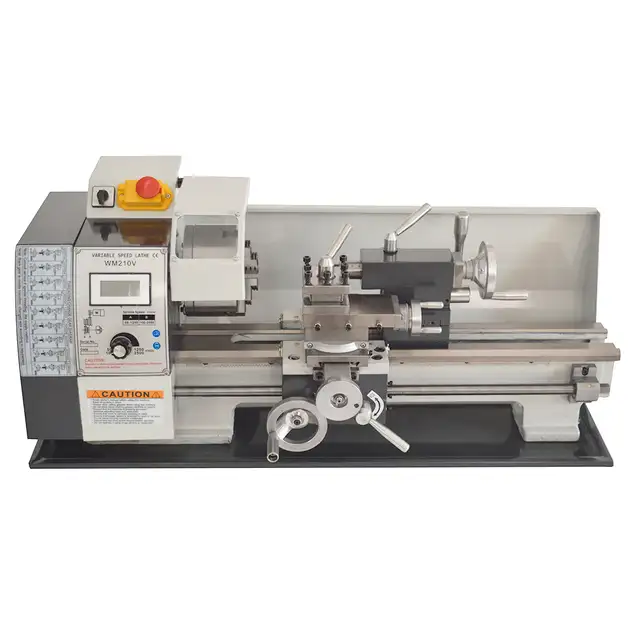

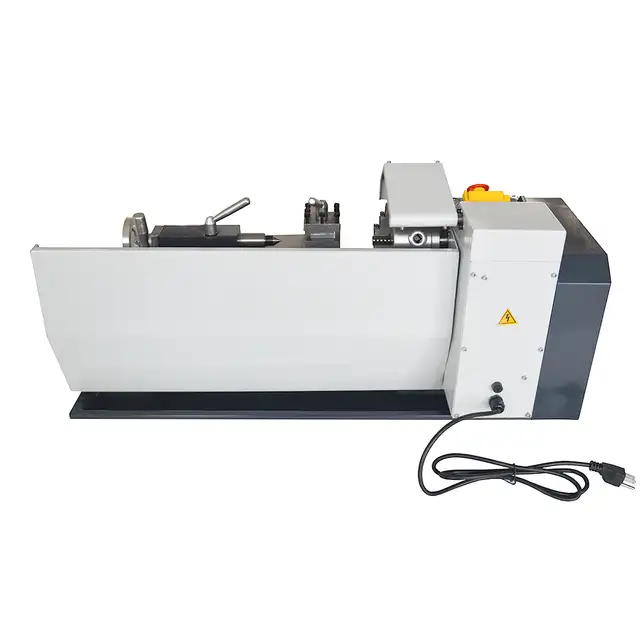

Model: WM210V
Motor: 110V brushless motor
Voltage: AC110V
Power: 900W
Length of center: 15.7"(400mm)
Swing Over Bed: 8.3"(210mm)
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.50"(38mm)
Diameter of chuck: 4.92"(125mm)
Width of lathe bed: 3.94"(100mm)
Number of Spindle Speeds: Infinitely variable speeds
Spindle taper: MT5
Tool rest station: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Range of metric threads: 0.5-3mm
Range of Inch Threads(optional accessory): 10-44T.P.I
Precision of the spindle: 0.01mm
Automatic feed range: 0.1mm-0.2mm
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 10.87"(276mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Tail frame taper: MT2

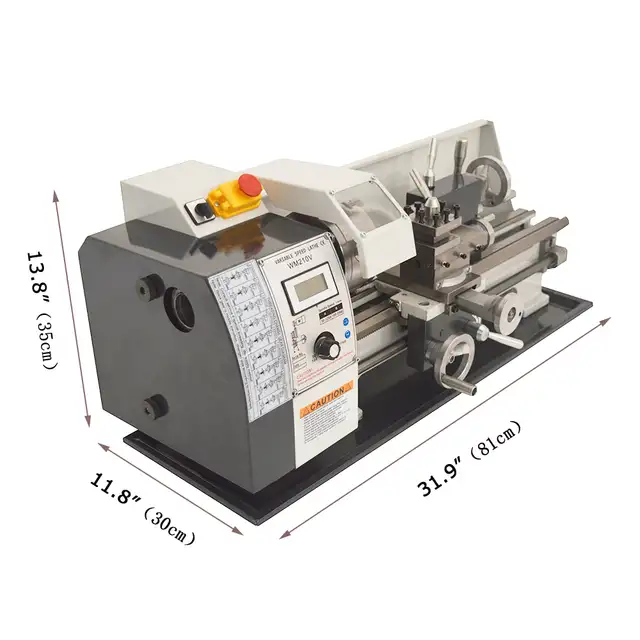

Lathe sizes: 31.9"*11.8"*13.8"(81*30*35cm)
Package size: 35.8"*18.3"*17.3"(91*46.5*44cm)
Net weight/Gross weight: 130.1lbs(59kg)/158.7lbs(72kg)
Note:*We provide optional parts for this lathe.If you need, please contact us*.

Product Features & Advantages

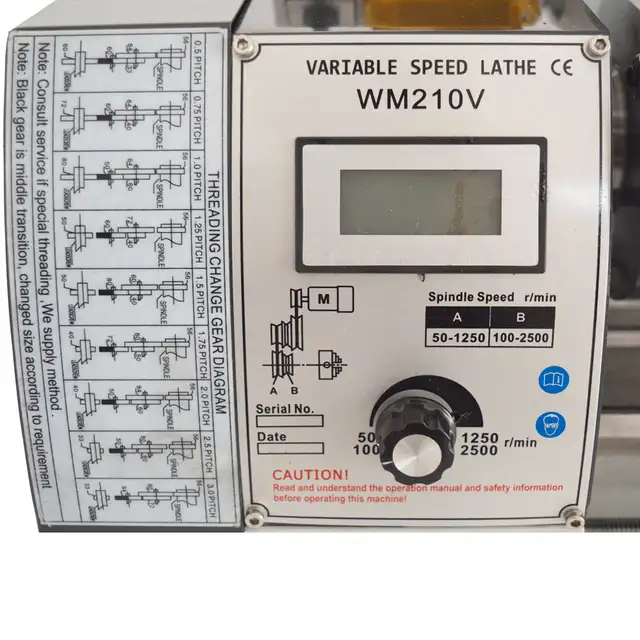

a. Digital Display Speed
Digital display of rotation speed, more accurate adjustment, more convenient operation.

b. Three Jaw Chuck
High-precision three-jaw chucks with 125mm clamping diameter are used to clamp square and round materials firmly.

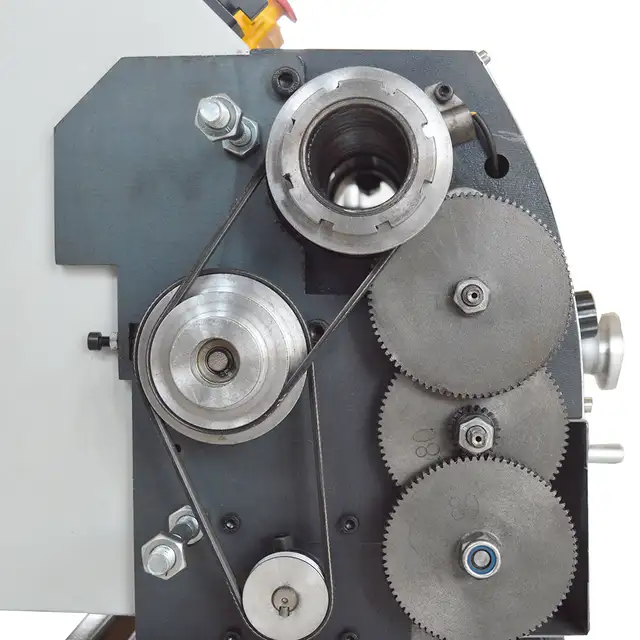

c. Metal Size Combination
Equipped with metal gear, machine has strong power, wear-resisting and more accurate transmission.

d. Stepless Variable Speed Switch
Spindle speed is divided into high and low two gears: 50-1250rpm/m and 1250-2500rpm/m.

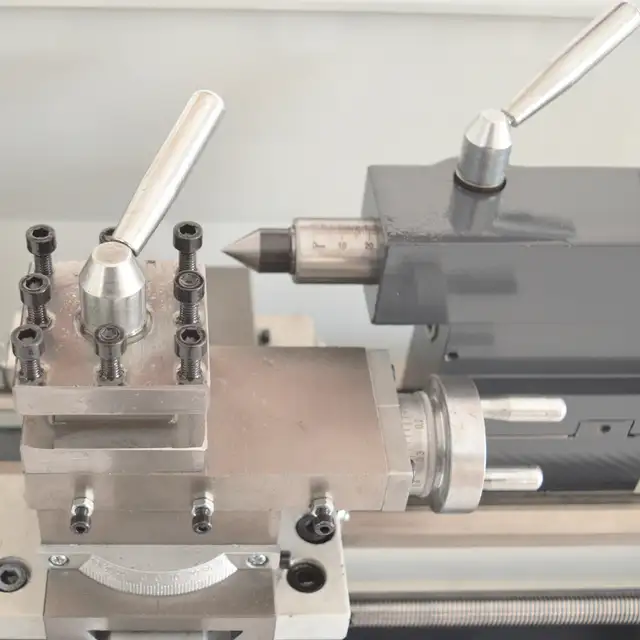

e. 4-way Tool Post
The adjustable 4-way tool post on the lathe allows you to easily change your cutting tools.

f. Precision Scale Design
Precise dials are provided on the saddle handle, the tailstock handle and the movable center, allowing for more accurate and
professional work.

g. Safety Switch
Forward and reverse switch and emergency stop switch. In case of emergency, the lathe can stop immediately and is safer.

h. Accurate Tailstock
With the MT#2 taper in tailstock spindle, this lathe machine is capable of adjusting set screws for accurate operation.

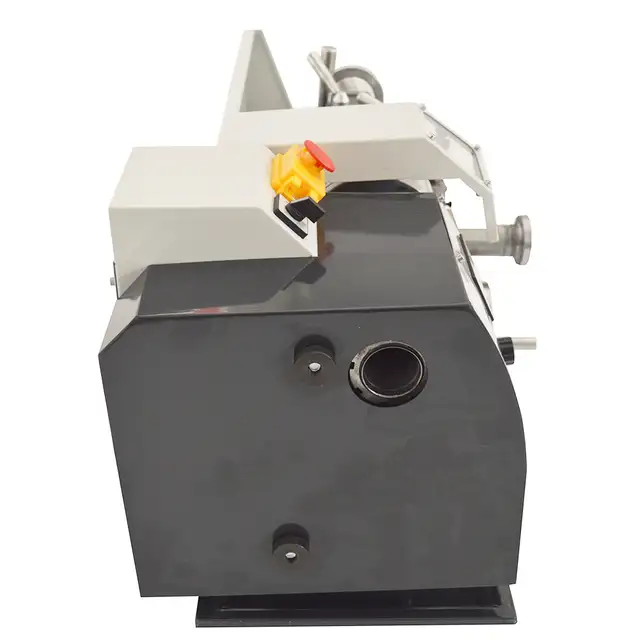

i. Extra-large Spindle Bore
The material can be inserted into the large spindle hole with the diameter of 38mm from the aperture of the machine head, so that it is more convenient to process longer materials.

j. Wide Application
This mini metal lathe is suitable for many processing tasks including turning, drilling, threading and cutting and so on.

- High quality cast iron bed processed by high frequency quenching process and precision grinding
- The spindle rotation speed is divided into two levels in the range of 50-2500rpm, which can be adjusted continuously
- Brushless motor has strong power, and low noise and saves energy consumption
- High precision spindle, high quality bearing, high accuracy, wear resistance, long life
- With a one button start and stop switch and a forward and reverse switch

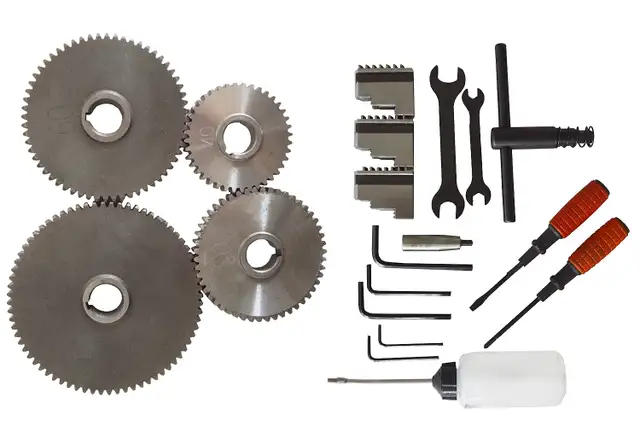

Item Included(028033):
WM210V lathe * 1 Chuck Jaw * 3 Gear *11 (75/72/70/66/60/60/52/50/48/40/30)
The Screwdriver * 2 Open spanner *2 Hexagon Wrench *5
Oil can * 1 The Fuse * 1 Chuck Spanner *1
English Instruction Manual *1 Oil pan * 1
