Item no.#022454
Product Overview

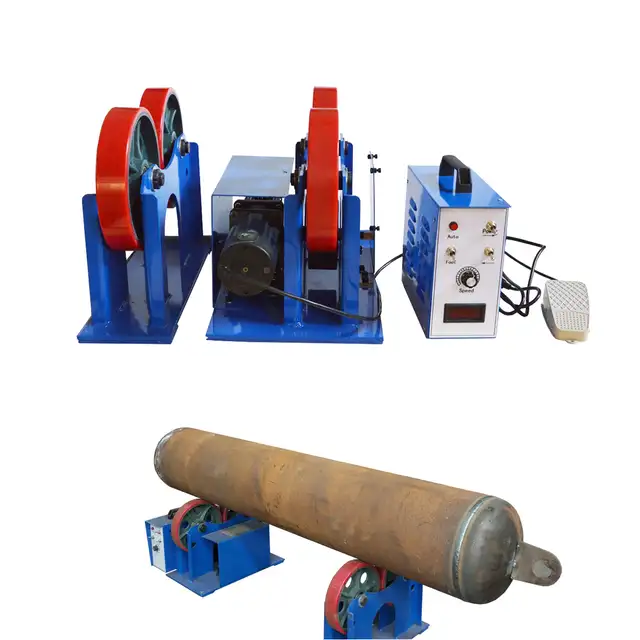

The Connected Welding Roller Rack is a professional mechanical device for assisting in welding cylindrical or annular workpieces, and can be matched with welding operation machines, submerged arc welding machines, etc. The machine is mainly applied to welding of pipelines include the inside and outside of pipes, can drive the workpieces to rotate at the uniform speed and can improve the welding efficiency and quality.
Product Parameters
Model XH-1T
Working Voltage AC 110V 60Hz
Power 120W
Load Capacity 1000KG (2200LB)
Speed Range 100～1000mm/min
Diameter Range 20～800mm
Roller Type 50mm (W) × 250mm (D)
Operation Method Control Box Operation

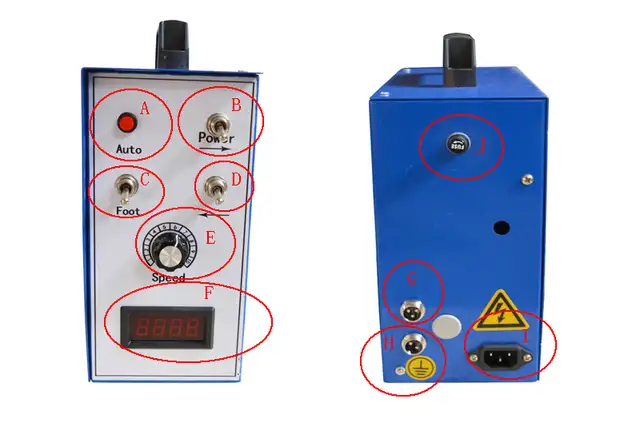

Product Features
A. Automatic Switch
B. Power Switch
C. Foot Switch
D. Forward/Reverse Switch
E. Speed Adjustor
F. Speed Displayer

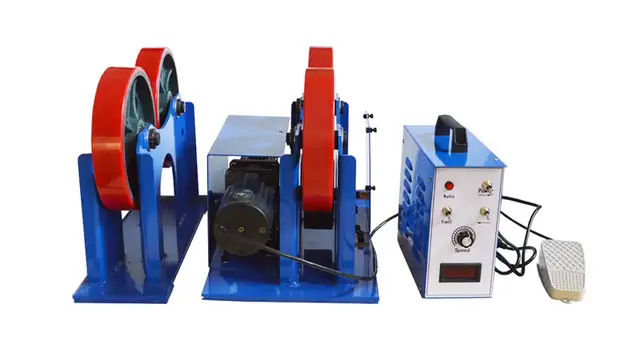

Digital Display Control Box
Multiple switches are integrated on the control box and facilitate integrated control over the operation. The speed is digitally displayed and set on the control box, the user can observe the running speed more directly and visibly, the operation difficulty of workers is reduced, and the processing effect can be well guaranteed.

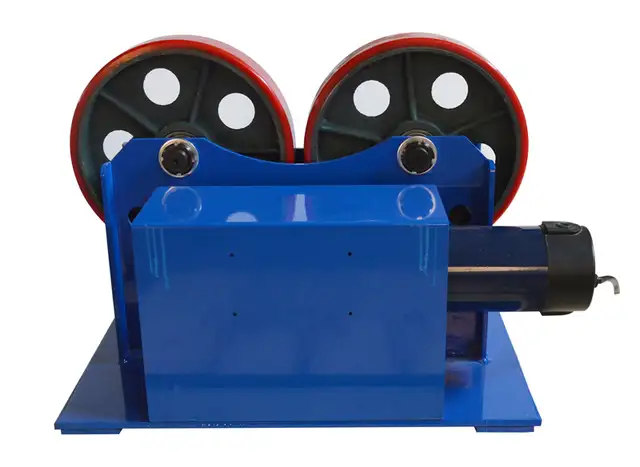

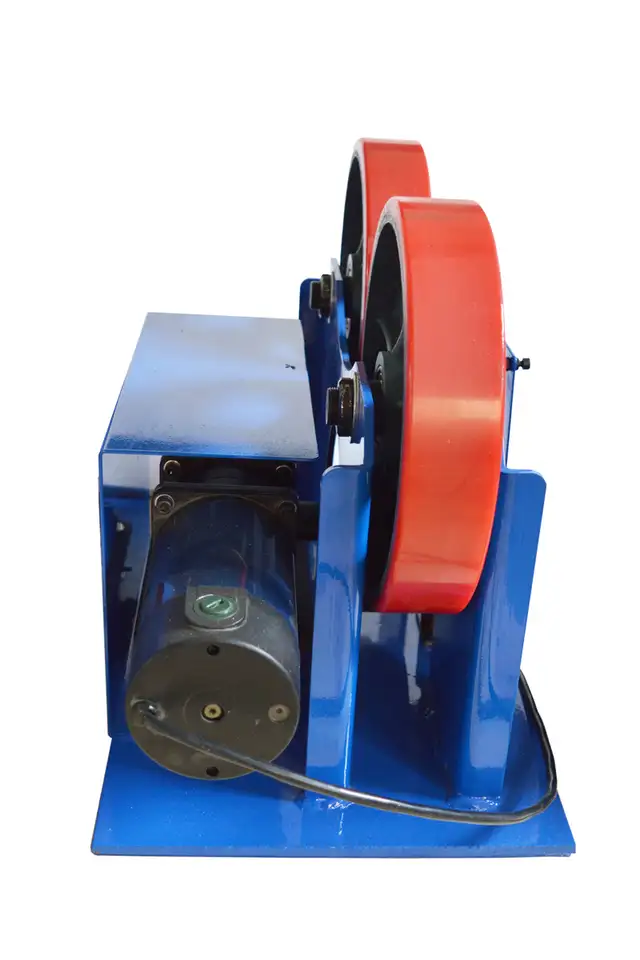

High-Quality Motor
The motor drives rollers to rotate through the transmission mechanism so that the workpiece can stably rotate on the rollers, and continuous adjustment of the welding position can be achieved. The rotating speed can also be controlled to meet the welding requirements of the workpieces with different diameters and materials. Operation is stable, and the noise is low.
Polyurethane Wheels
The roller wheels are made of polyurethane materials, the friction between the roller wheels and the workpiece can be increased, the roller wheels are resistant to temperature and wear and free of slippage, stable rotation of the workpieces can be effectively ensured, and the welding effect is better achieved.

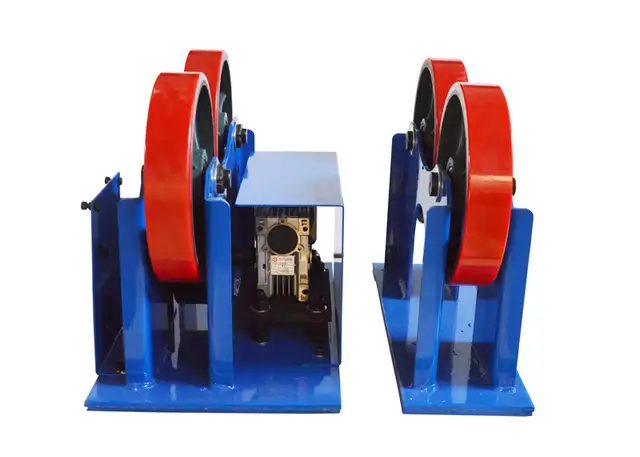

Driving Frame

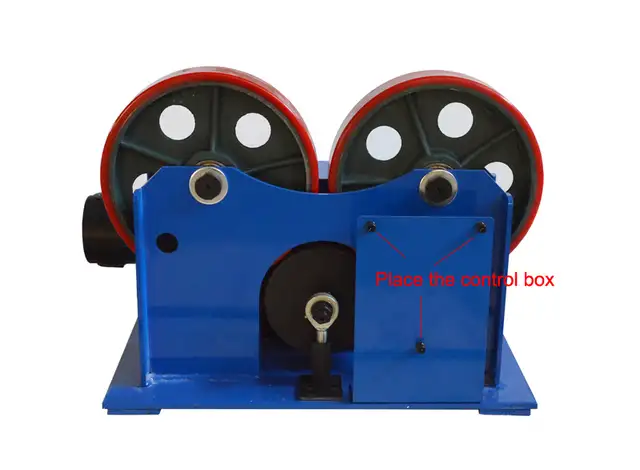

The driving frame well supports the driving rollers in the working process so that the driving rollers can stably run and support the workpieces. The control box is also installed on the side of the driving frame and controls the rollers to rotate slowly and smoothly.
Speed Reducer
As a key transmission part, the speed reducer can run stably and is good in transmission performance. The motor speed can be reduced, and the output torque can be increased, thereby ensuring the rollers can drive the heavy workpieces at a stable and controllable speed. The speed reducer can be matched with the motor to achieve well operation of the roller rack.
Foot Switch
The foot button and the automatic button are arranged on the control box, the foot switch can be controlled by the foot button, the operator can freely select the control mode to meet different demands, rotation of the workpieces can be flexibly controlled in the operating process, and the convenience and safety of welding operation are improved.

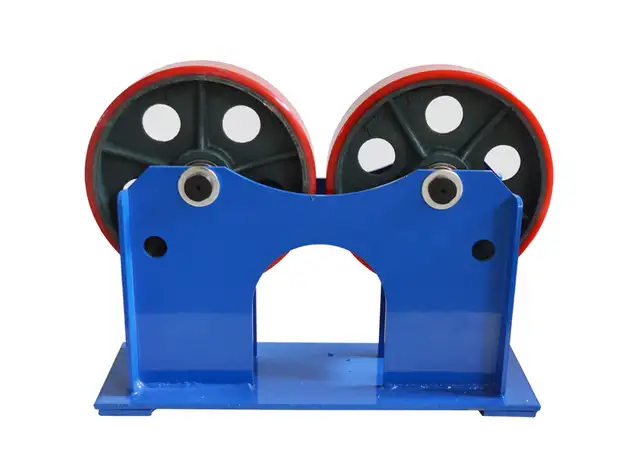

Adjustable Mounting Holes

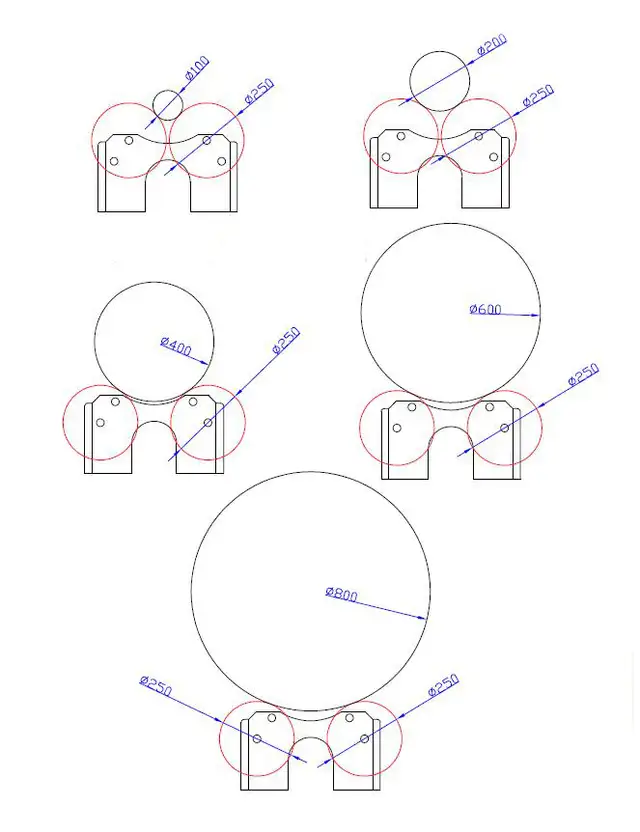

The corresponding roller shaft mounting holes can be selected according to the diameters of the workpieces, and the lower mounting holes can be used when the diameter of a pipeline is larger than or equal to 400mm. The included angle between the rollers and the workpiece can be adjusted, the roller rack can better adapt to different workpieces, operation is convenient, easy and quick, and time and labor are saved.
Linkage Control Mode
The welding roller rack can be combined with other devices, such as welding equipment, positioners and conveying systems in the actual production process, thereby achieving efficient and automatic welding. The welding accuracy can be improved, manual intervention can be reduced, and the production efficiency can be improved.

Attention
Before operating the unit, please read this instruction book thoroughly, and retain it for future reference.
1. The machine should be placed at a dry, clean, ventilated and horizontal position, and the operation of the machine should be horizontal and smooth. Keep away from flammables and explosives.
2. For safety reasons, the device must be connected to a reliable safety grounding device and must have three feet with ground connection.
3. Unplug the power cable/cord if the machine will not be used in a long time.

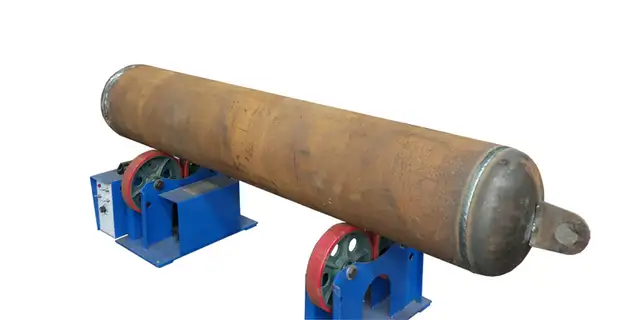

Application
The Connected Welding Roller Rack can assist the workers in pipeline welding, and can be well applied to the fields of engineering machinery, pressure vessel manufacturing, ocean engineering, automatic production, etc. It is suitable for plasma cutting, flame cutting, flange welding, surface polishing, surface spraying and other production processes and is an ideal device for industrial production.

Maintenance Information
Users are responsible for the proper operation and maintenance of the equipment they use. Some equipment will quickly become damaged and unsafe if abused or subjected to improper demands. If the equipment is regularly maintained and not abused, you will get the maximum safety and service performance from your equipment.
Do not overload equipment.
Do not use overcharged voltage.
Do not use hands to stop the roller when the machine is working.

Package Content(022454)
Connected Welding Roller Rack*1
Foot Switch*1
Control Box*1
