Item number: 006005
-
Screen drying cabinet is an important tool in screen printing.
The screen drying cabinet is needed by several procedures such as screen degreasing, emulsion coating and hardener coating.

This machine gives up traditional heating pipe technique to adopt advanced and safe flat

carbon fiber heating plate. Professional design, energy saving, safe and easy manipulation, used for drying screen ,shading light, proofing dust and so on.

After being redesigned, this cabinet has a smaller volume, will be cheaper and easier to ship than the old type. Wooden case prevents the product from being damaged

* Max size of screen frames of two upper layers:23"x21"(58x55cm).

* The screen frames need to be put into the top layer in vertical direction.

* Max size of screen frames of the two lower layers::25"x23"(62x58cm).

Features
Intelligent temp controlling system. Its temp can be adjusted according to the heat resistance of screen mesh. When the room temp is 77℉ (25℃), its highest temp can reach 126℉ (52℃).
The inside installed axial flow fan makes the hot air circulate, which guarantees an equal temp in cabinet and can improve drying efficiency meanwhile. The axial flow fan (specially used for large computer equipment) can normally be used for about 20,000 hours. It usually takes 2-4 minutes to well dry the screens coated with the photosensitive emulsion.
It adopts a hierarchical (100 levels) temp-adjusting system; users can adjust temp according to ambient temperature and different materials. It can operate according to your set temp next time because of its automatic memorizing function.

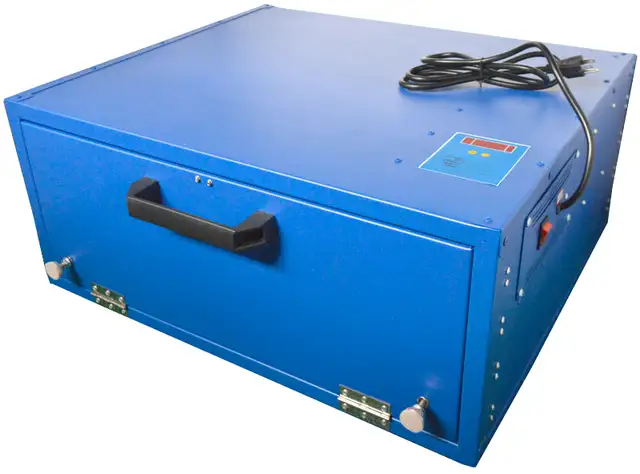

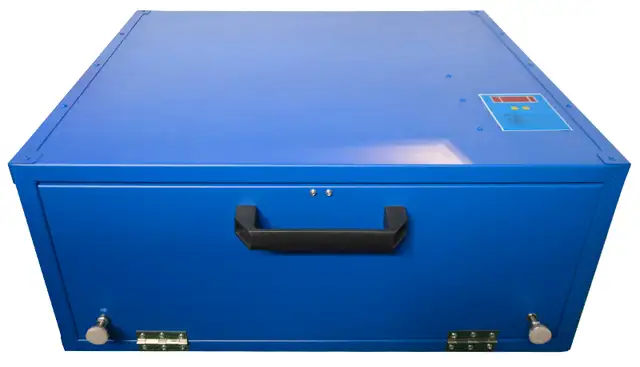

It is wholly coated without corrosion and rust. The drawer type is flexible but perfect tight. All kinds of screens can be placed and moved flatly with printed side up to guarantee the adhesive layer smooth.

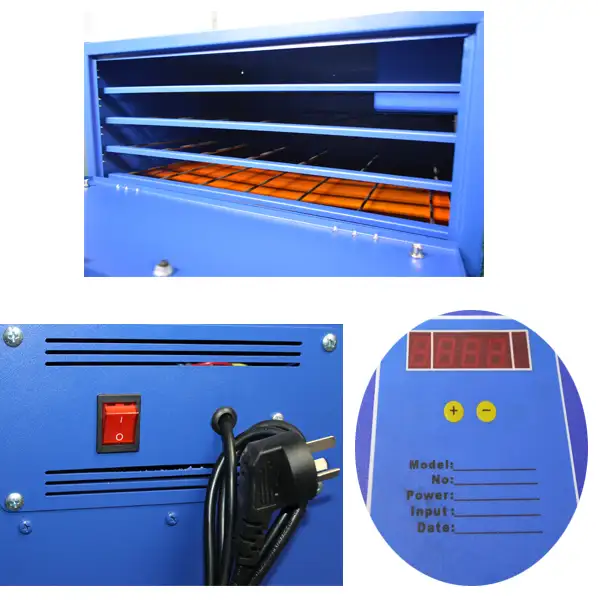

The heating plates adopts the newest blade and unit type, and achieves double-heat, low power and high heat efficiency. At the same time, it guarantees that the temperature of the machine is even to make the temperature of each floor even and accurate.
Total power is 800W.compared with traditional 3000-8000W cabinet, this machine can save power by70-90%.

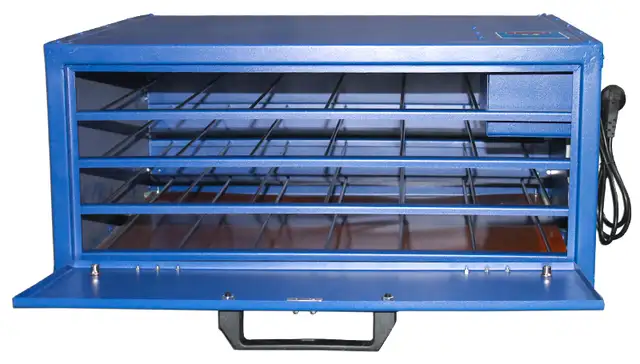

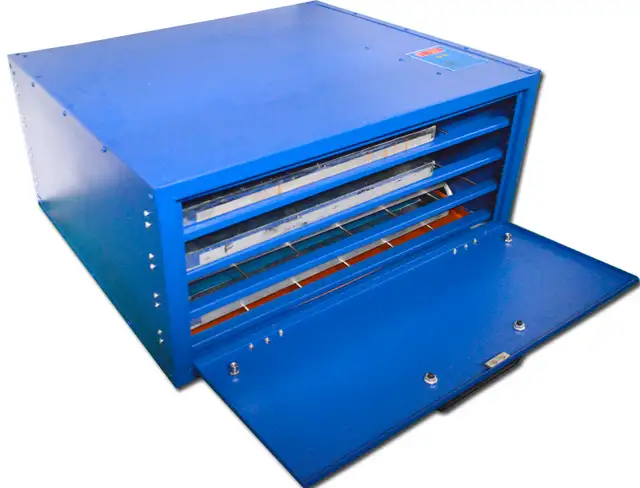

Constructed by four layers of cabinets,4 frames below 25”x21”(64x53) can be held at the same time, saving time, improving efficiency.
Inner and outer sides all adopt electrostatic spraying, professional outlook, easy to clean and no rust.

Parameter:
Voltage 110V
Power 800W
Plug standard US, Canada
Machine size 27.9 "x24" x12.2 "(71x61x31cm)
Packing Size 32.6"x27.9"x15.7" (83x71x40cm) 
Net weight 80Lb (36kg) 
Shipping weight 88Lb (40kg) 
Note: The shipping cost is calculated by it's shipping volume.

Instructions
1. Turn on the switch; then the machine will indicate “F000” and the air fan works automatically.

2. Press “ ” to “F070'

3. Place thermometer probe on the third drawer; Check the temp after five minutes.

4. If the temp does not meet your need, you can press “ ” or “-” to increase or reduce 10 grades; wait five minutes and then check the temp.

5. After adjusting the available temp, the machine will automatically save and memorize

your set data.

6.It is normal that the “F” and “O” displays alternately when the machine is working.

Reference data: When the room temperature is 77F (25C) or so, close and seal all drawers, ten minutes later after you have set, the temp indicates —
1. Set “F050”, the temp is about 93F (34C)
2. Set “F060”, the temp is about 104F (40C)
3. Set “F070”, the temp is about 115F (46C)
4. Set “F080”, the temp is about 126F (52C)

Item include: 006005
1 set 110V screen printing drying cabinet
