Item number: 056765
-
Product Overview

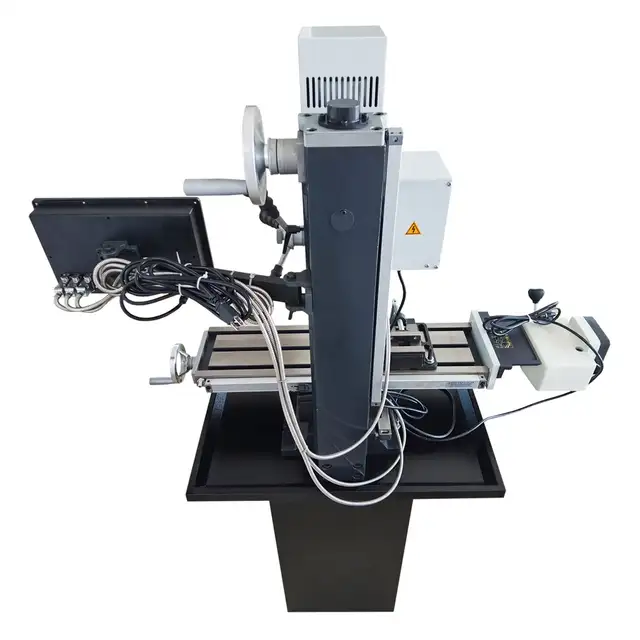

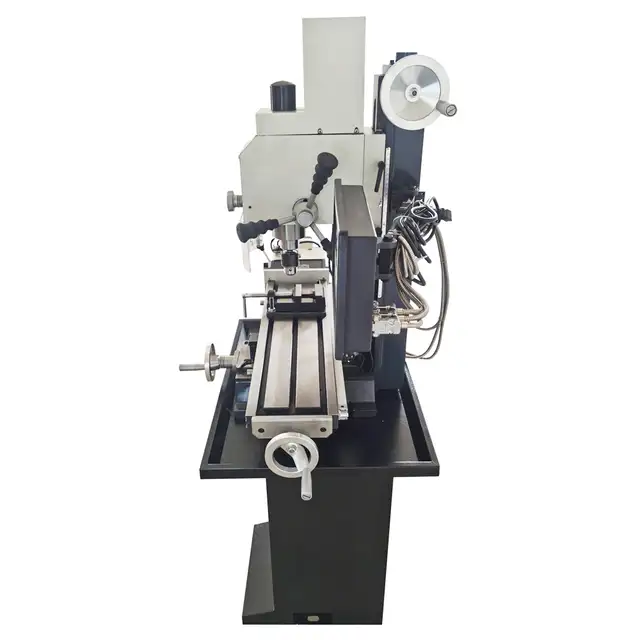

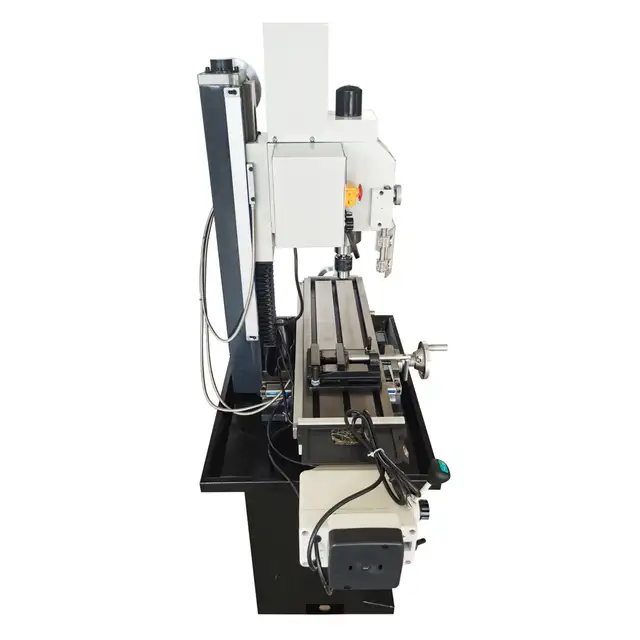

RCOG-25V multi-functional drilling and milling machine has rich functions, can meet the metal, wood, plastic, Buddha beads and other finishing, all copper brushless motor, strong power, simple operation, durable, high processing accuracy, is the home DIY processing of various parts of the necessary machine.


Milling Machine Parameters
Model: RCOG-25V
Voltage: AC110V/60Hz
Motor power: 1100W brushless motor
X axis stroke: 18.9"(480mm)
Y axis stroke: 6.9"(175mm)
Z axis stroke: 11"(280mm)

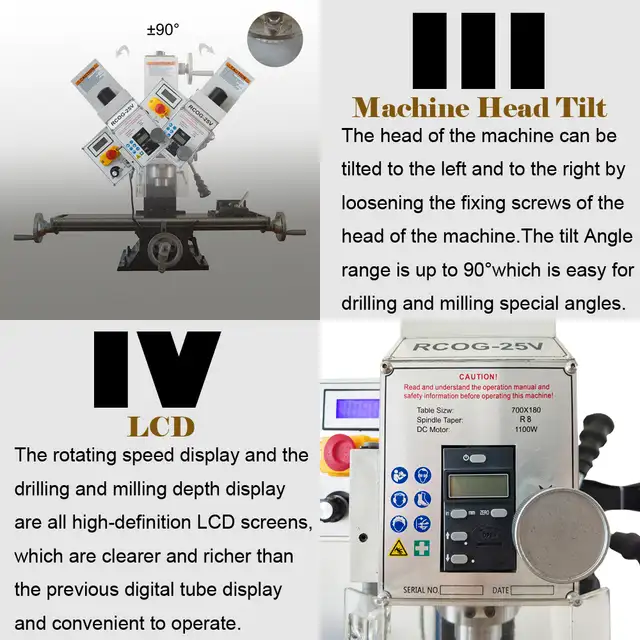

Spindle incline Angle: ±90°(The nose can actually rotate 360 degrees)
Max. drilling diameter: 0.9"(25mm)
Max. Face screening capacity: 2.5"(63mm)
Max. vertical milling capacity: 0.79"(20mm)
Distance from spindle to table: 13.8"(350mm)
Spindle taper: R8
Spindle stroke: 2"(52mm)
The Range of spindle speeds: 20-2250rpm

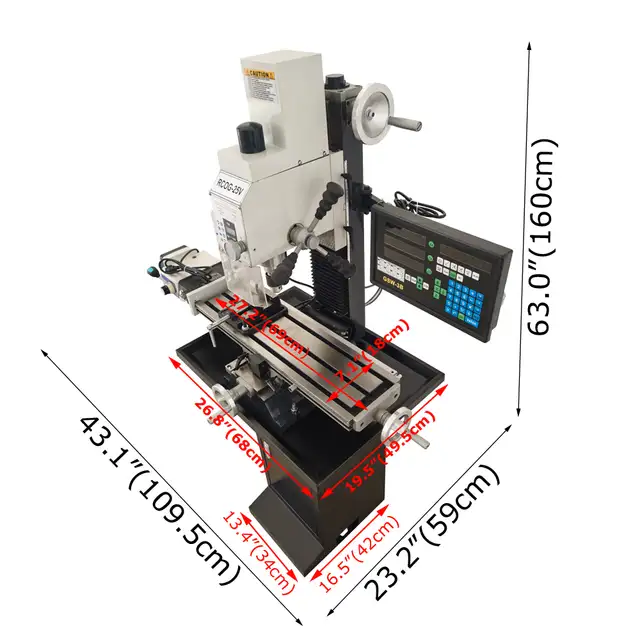

Table size: 27.2"*7.1"(690mm*180mm)
T groove width: 0.47"(12mm)
Net weight/Gross weight: Milling machine:276.7LB(125.5kg)/342.8LB(155.5kg)
Supporting base:17.6LB(8kg)/22.0LB(10kg)
Axis X power feed voltage: AC110V 50/60Hz
Axis X power feed Power: 95W
Axis X power feed speed range: 0-200rpm
Grating ruler voltage: AC110V-220V 50/60Hz
Grating ruler power: 10W
Precision of grating ruler: 0.005mm



Product Features & Advantages

- Powerful function: This is a multi - functional drilling and milling machine, can complete drilling and milling operations. Also can be used for precision parts processing, sample processing and model.

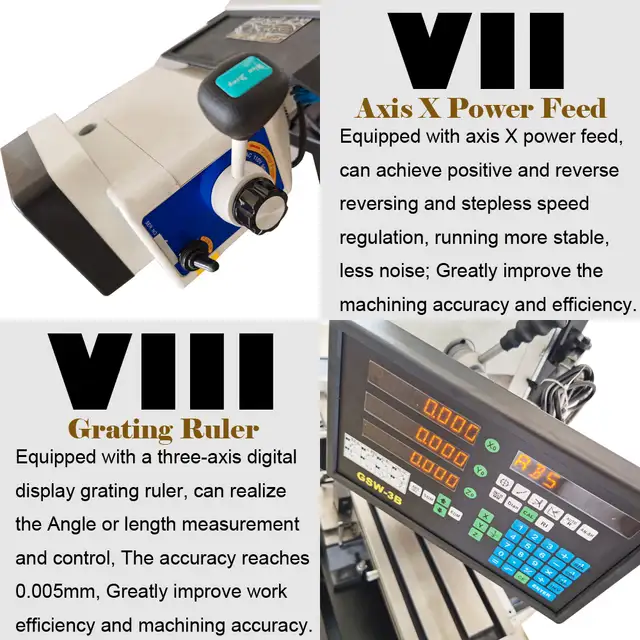

- Three axis grating ruler: Three axis grating ruler includes zero clear, preset, inch/metric display, relative/absolute switch, automatic sub-centers, calculator, power failure memory, RI and other functions, greatly improve the processing efficiency and accuracy!

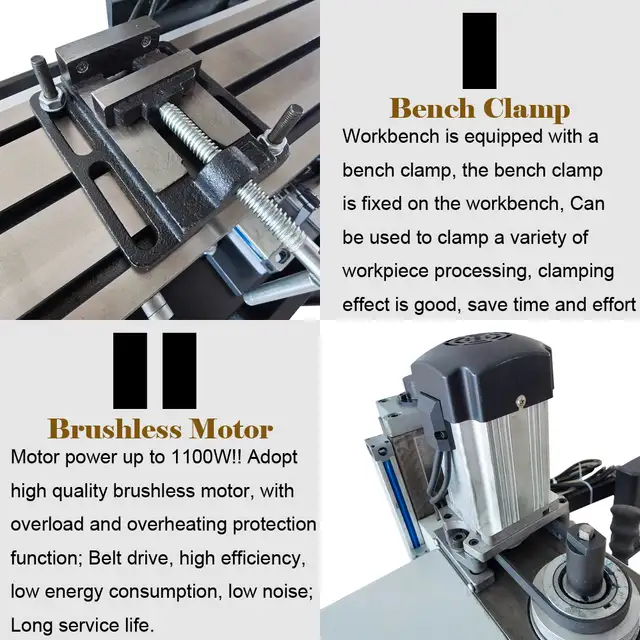

- All metal: It USES an integrated spindle and brass gear, which makes it not only precise but also durable.

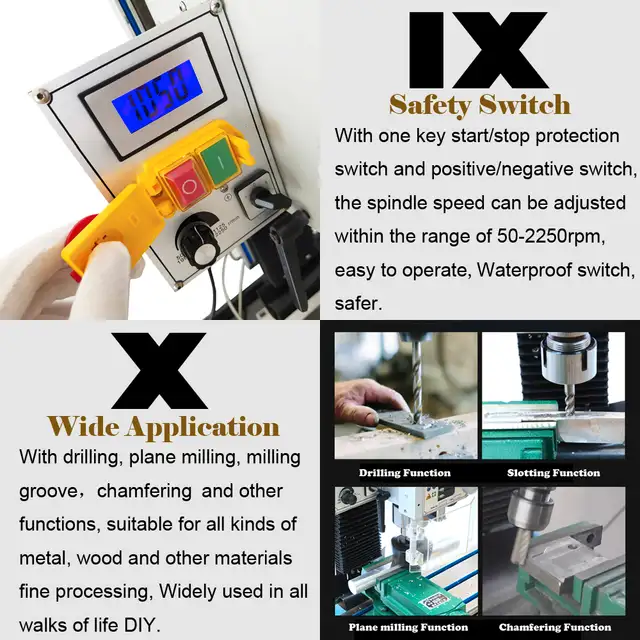

- Variable-Speed: Weather you need high speed or lower speed spindle operations this machine can handle it. Boasting a 50-2250 RPM spindle speed for the extreme precision your project needs.
- It is important to note that this lathe has only a metric scale.

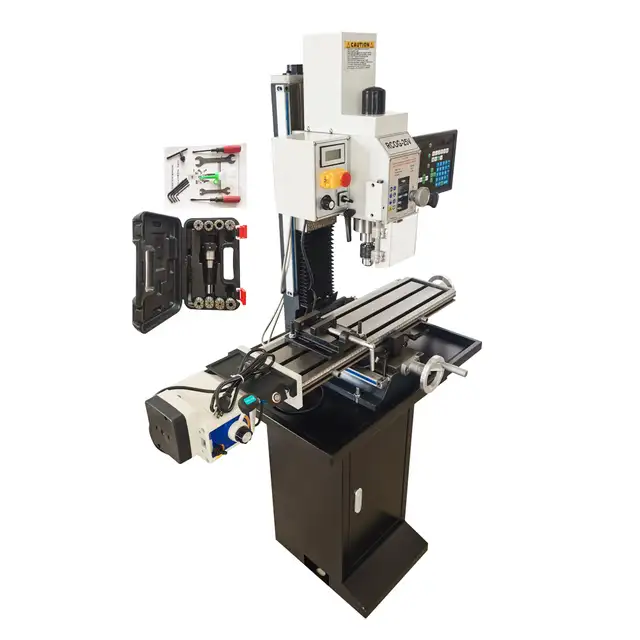

Item Included(056765)
Drilling and milling machine *1 Axis X power feed *1 Grating ruler *1
Milling chuck set *1 Support base *1 Drill chuck *1
Drill chuck retaining pin *1 Bench clamp *1 Fork wrench *2
Drill chuck wrench *1 Oil can *1 Cross screwdriver *1
Straight screwdriver *1 Hexagon wrench *4 English manual *1
