Item Number: 022817

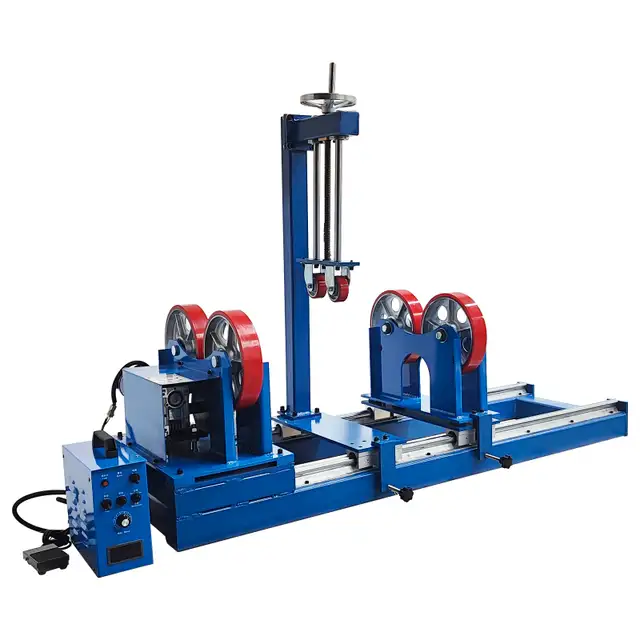

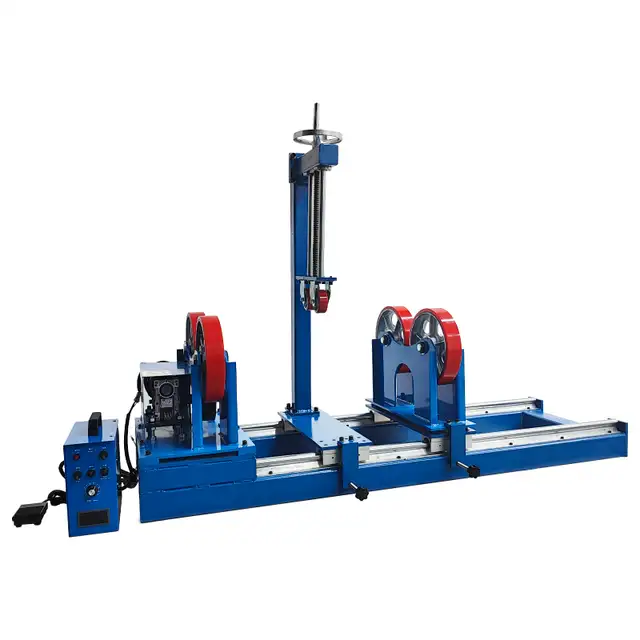

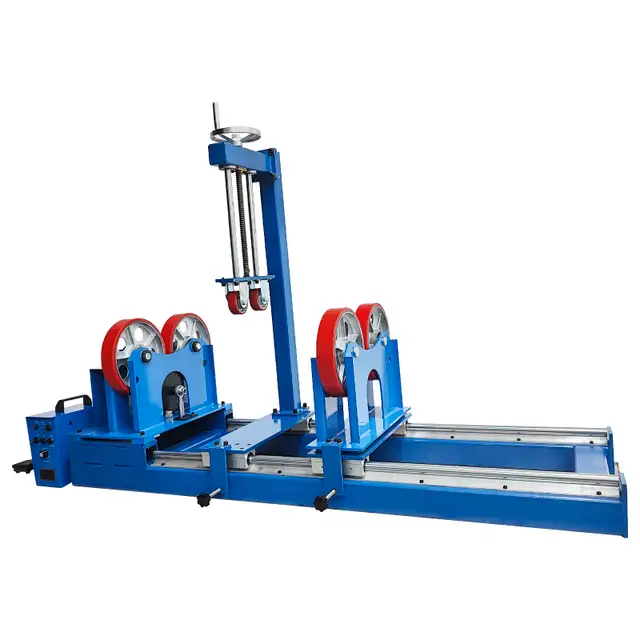

Product Overview

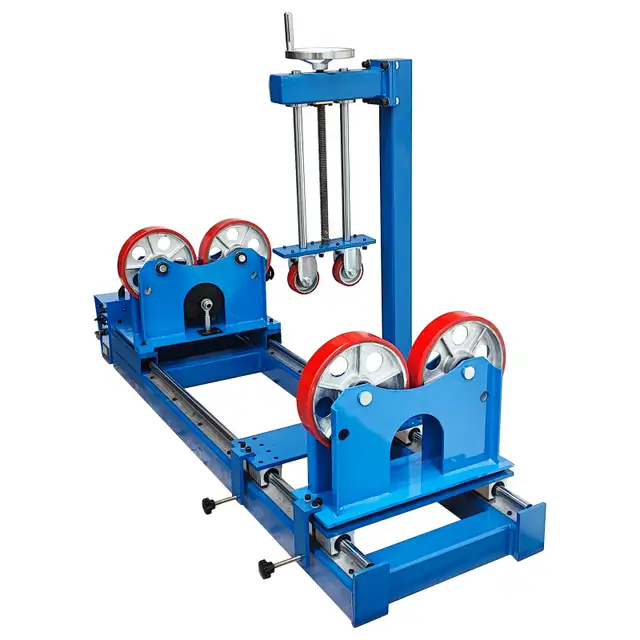

The Welding Turning Roller Rack is a professional mechanical device for assisting in welding cylindrical or annular workpieces, and can be matched with welding operation machines, submerged arc welding machines, etc. The machine is mainly applied to welding of pipelines include the inside and outside of pipes, can drive the workpieces to rotate at the uniform speed and can improve the welding efficiency and quality. It is equipped with a sliding rail system and a wheel press frame, thereby meeting different processing requirements of customers.

Attention
Before operating the unit, please read this instruction book thoroughly, and retain it for future reference.
1. The machine should be placed at a dry, clean, ventilated and horizontal position, and the operation of the machine should be horizontal and smooth. Keep away from flammables and explosives.
2. For safety reasons, the device must be connected to a reliable safety grounding device and must have three feet with ground connection.
3. Unplug the power cable/cord if the machine will not be used in a long time.

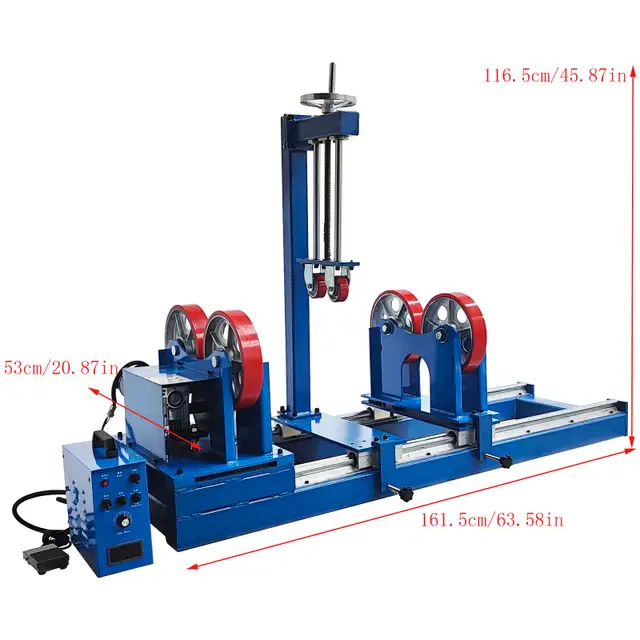

Product Parameters
Voltage 110V
Power 120W
Load Capacity 1000KG
Speed Range 100-1300mm/min
Diameter Range 40-800mm
Roller Type 50mm (W)*250mm (D)
Slide length 120cm/47.24in

Product Features

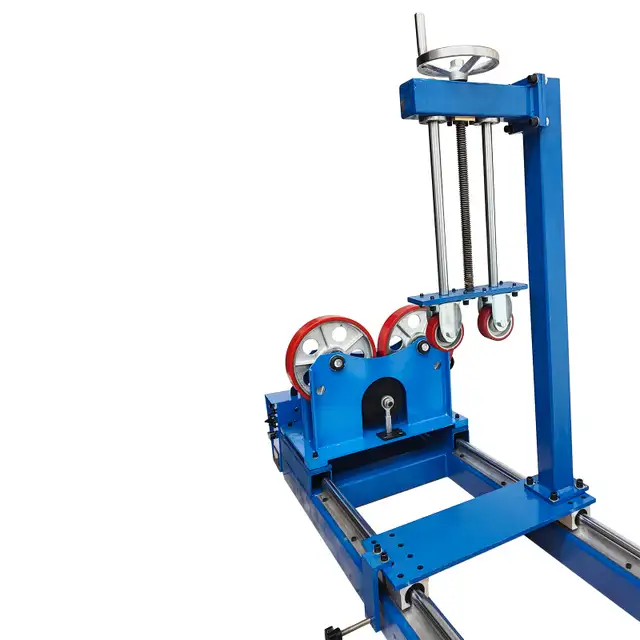

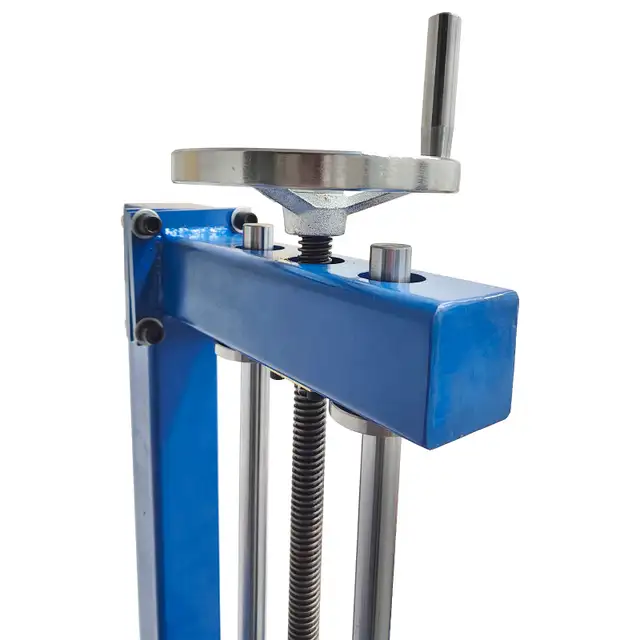

Wheel Press Frame
Two small rubber wheels are arranged to press the workpiece to be welded and can ascend and descend by rotating the handhwheel on the top, the whole wheel press frame can be moved and fixed as needed, thereby well adapting to the different heights of workpieces, preventing the workpieces from jumping and better ensuring the operating stability.

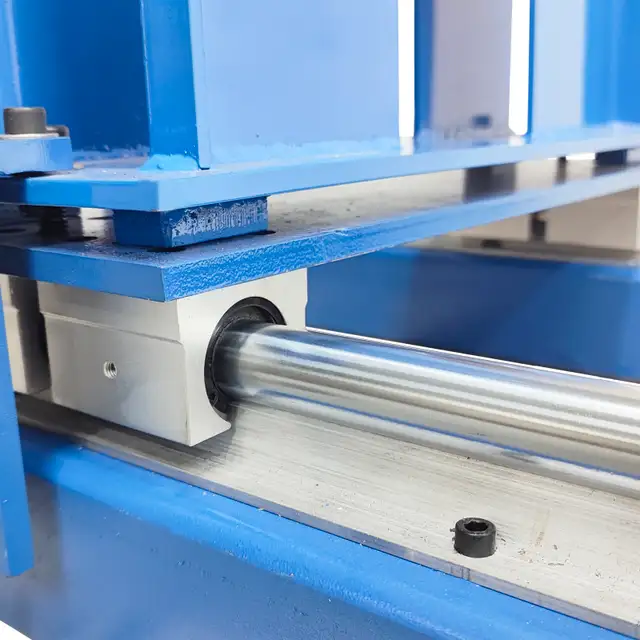

Sliding Rail System
Due to the design of the sliding rail, the driven roller frame can slide along the sliding rail freely and easily and can be fixed to the required position by a black screw, different processing requirements of workpieces with different sizes can be met perfectly, the problem of manual moving roller racks is solved, and the practicability is greatly improved.

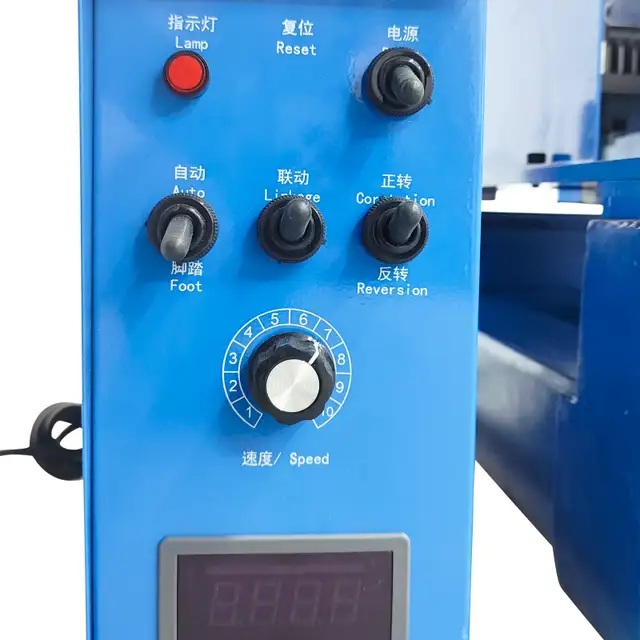

Digital Display Control Box
Multiple switches are integrated on the control box and facilitate integrated control over the operation. The speed is digitally displayed and set on the control box, the user can observe the running speed more directly and visibly, the operation difficulty of workers is reduced, and the processing effect can be well guaranteed.

Motor & Speed Reducer
The motor drives rollers to rotate through the transmission mechanism so that the workpiece can stably rotate on the rollers, and continuous adjustment of the welding position can be achieved. The rotating speed can also be controlled by the speed reducer to meet the welding requirements of the workpieces with different diameters and materials. Operation is stable, and the noise is low.
　

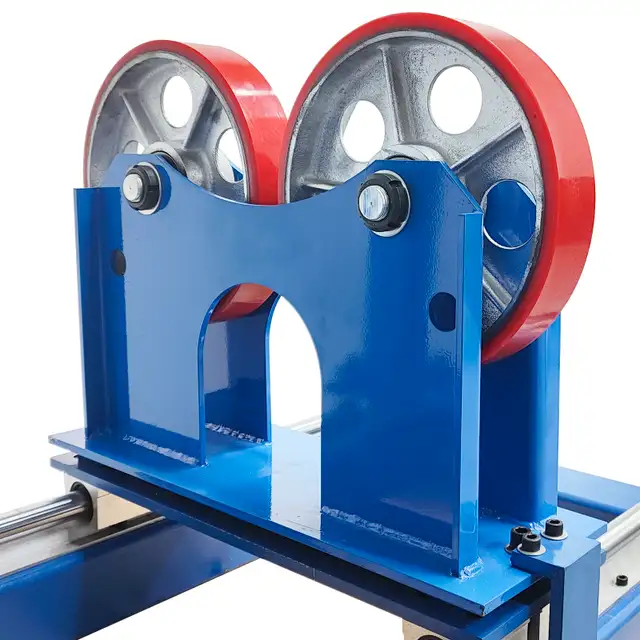

Polyurethane Wheels
The roller wheels are made of polyurethane materials, the friction between the roller wheels and the workpiece can be increased, the roller wheels are resistant to temperature and wear and free of slippage, stable rotation of the workpieces can be effectively ensured, and the welding effect is better achieved. The wheels can be mounted in different holes according to the diameters of workpieces, so that the practicability is higher.

Foot Pedal & Automatic Mode
The button for switching the foot pedal mode and the automatic mode is arranged on the control box, the foot pedal can be controlled by the button, the operator can freely select the control modes to meet different demands, rotation of the workpieces can be flexibly controlled in the operating process, and the convenience and safety of welding operation are improved.

Maintenance
Users are responsible for the proper operation and maintenance of the equipment they use. Some equipment will quickly become damaged and unsafe if abused or subjected to improper demands. If the equipment is regularly maintained and not abused, you will get the maximum safety and service performance from your equipment.
Do not overload equipment.
Do not use overcharged voltage.
Do not use hands to stop the roller when the machine is working.

Application
The Welding Turning Roller Rack can assist the workers in pipeline welding and other operation, and can be well applied to the fields of engineering machinery, pressure vessel manufacturing, ocean engineering, automatic production, etc. It is suitable for plasma cutting, flame cutting, flange welding, surface polishing, surface spraying and other production processes and is an ideal device for industrial production.

Item Number (022817): 1 x Digital Display Welding Turning Roller 1T 110V

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
