Item number: 028371
-
Product Overview
The milling machine is driven by 12V safe direct current transformer, the body is free of plastic parts, and the stability and durability of the equipment are greatly improved. For the micro-drilling and milling machine, ‌compact and lightweight design increases portability and adjustability in order to adapt to different working environments and processing needs. ‌It is an ideal tool for DIY hobbyists and modelmaker to make various craft, extremely helpful for improving manual ability and independent thinking. Wide used in school general technical room, juvenile activity center, science and technology activity room equipment, DIY hobbyist, and so on.

Product Parameters
Input voltage: AC100V-240V
Output voltage: DC12V 2A
Motor rated power: 24W
Motor speed: 20000r/min±15% of high speed motor
Spindle speed: High speed motor 3000r/min±15%
Spindle jump: <0.1mm
Large slider stroke (X axis): 1.8"(45mm)
Small slider stroke (Y, Z axis): 1.4"(35mm)
Vise clamp size: 2"*2.4"(50mm*60mm)
Chuck specifications (diameter) : ф 1, ф 2, ф 2.5, 3, ф ф 3.5, ф 4, 5, ф ф 6
Handle scale: 0.05mm/division
Milling cutter size: Phi 3, Phi 4, Phi 5, Phi 6
Processing Materials: Wood, plastic, plexiglass, aluminum, copper and other soft metal. CAN'T processing alloy.
Package size: 13.39"*8.27"*9.84" (34cm*21cm*25cm)
Net weight/Gross weight: 7.76lbs(3.52kg)/8.84lbs(4.01kg)
Notes:
1. When processing harder materials, the feed rate should be smaller, which is slower than processing wood.
2. Wear goggles when using.
3. Children need to be guided by adults.

Product Features & Advantages
a. Milling Cutter
We provide different cutters that can bore the processed material, milling grooves, slots, steps and other three-dimensional shapes, with plane engraving function, can meet a variety of processing needs.

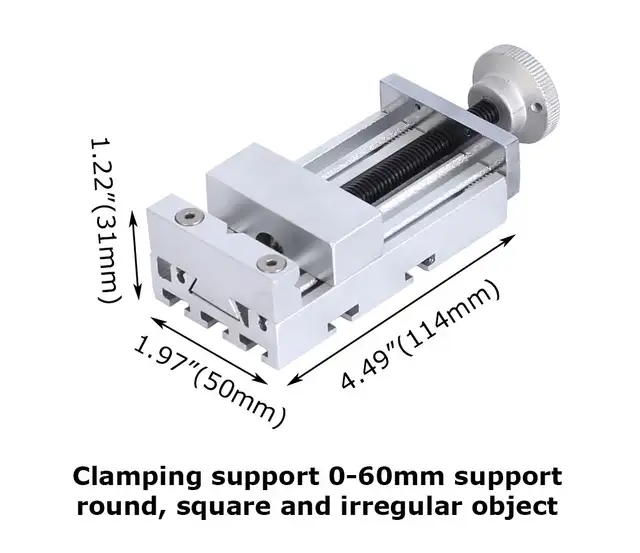

b. Vise
The bottom of the machine is equipped with well-made clamping pliers, which is easy to grip the work pieces of various sizes and specifications, and the clamping effect is good and will not be loosened to ensure good milling effect.

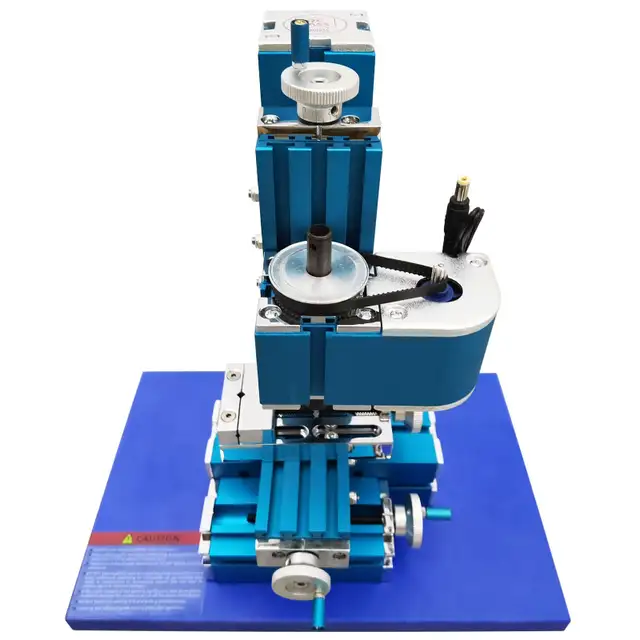

c. Belt Transfer
The belt drive has the characteristics of smooth transmission and no noise, good reliability, more wear-resistant and durable, easy maintenance and easy operation.

d. Fixed Plate
The base of the milling machine is one of the important components of the milling machine, which is located at the bottom of the entire equipment and plays the role of supporting the entire milling machine body. The base must be strong and solid enough to ensure the stability and accuracy of milling at work.

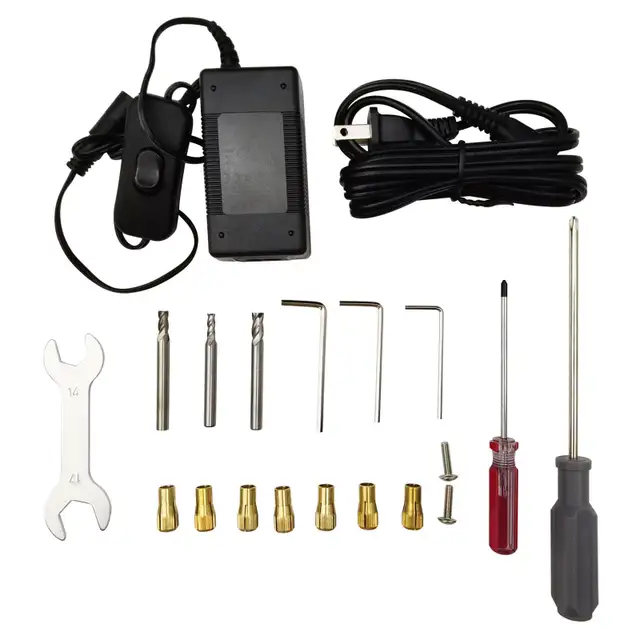

Item Included: 028371
Milling Machine *1
Accessories Package *1
