Item number: 056605
-
Product Overview

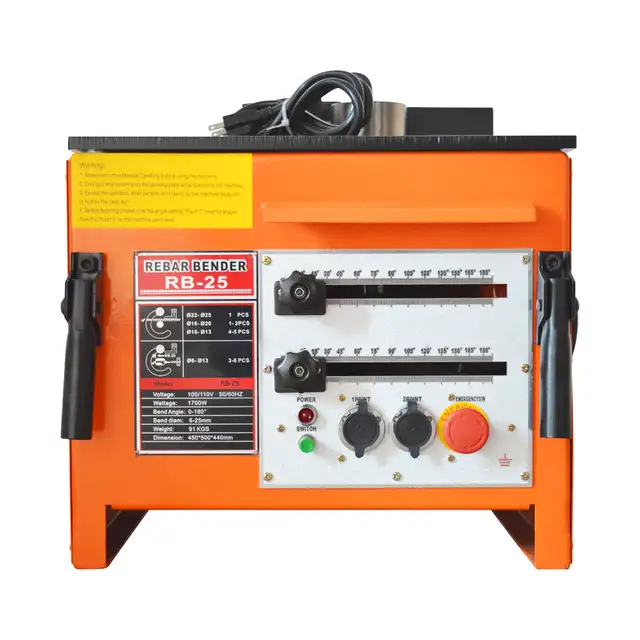

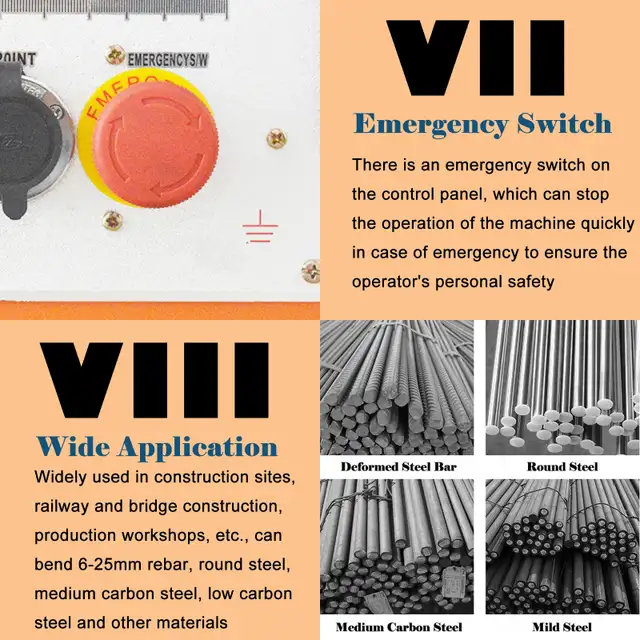

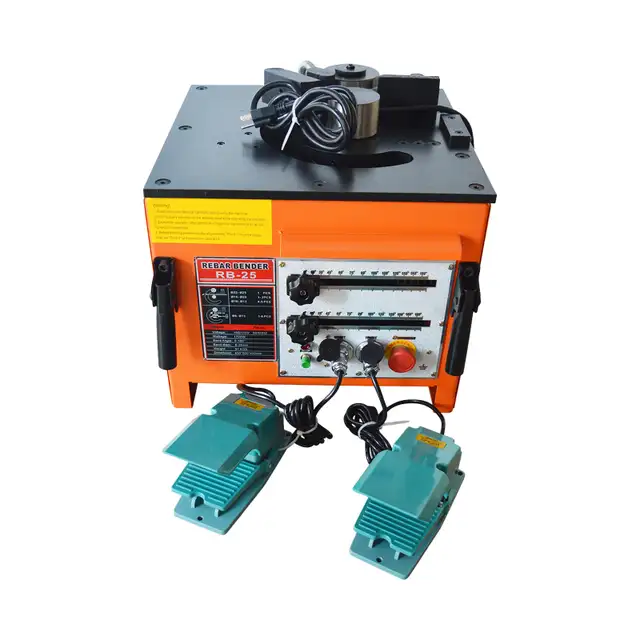

The rebar bender machine can bend 1/4''(#2) to 1"(#8) (6 to 25 mm) rebar to 0-180°in 6-7 seconds. Two standard foot pedal control switches for hands-free bending.It is widely used in construction engineering, used to bend round steel, rebar, screw and so on, the machine can be batch operation.Built-in safety device can stop operation immediately.
-
Product Parameters
Model: RB-25
Voltage: AC110V 50/60Hz
Power: 1700W
Bending Angle: 0-180°
Max.Rebar Diameter: 0.98"(25mm #8 Grade 60)
Min.Rebar Diameter: 0.24"(6mm #2 Grade 60)
Bending Speed: 6-7 Seconds
Max.Rebar Hardness: HRC30
Bending Radius: 1.53"(39mm)
Gyre idler wheel diameter: 3.70"(94mm)
Noise: 92db
Shell Material: Iron
Amps: 14A

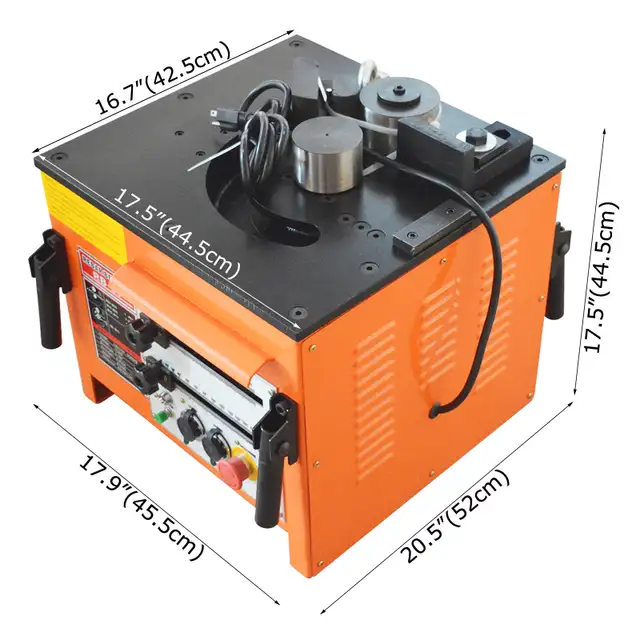

Product size: 17.9 * 20.5 * 17.5 "(45.5 cm * 52 cm * 44.5 cm)
Net weight: 200.6lb(91kg)
Gross weight: 284lb(129kg)
NOTE:When bending processing, the angle of point 1 must be bigger than point 2. Otherwise, the machine can not operate normally.
-
Product Features & Advantages
1700W high-power pure copper coil motor, smooth operation, low noise, long life, higher work efficiency.
Ultra-Fast bending speed, can complete a steel bar bending in 6-7 seconds, save time.

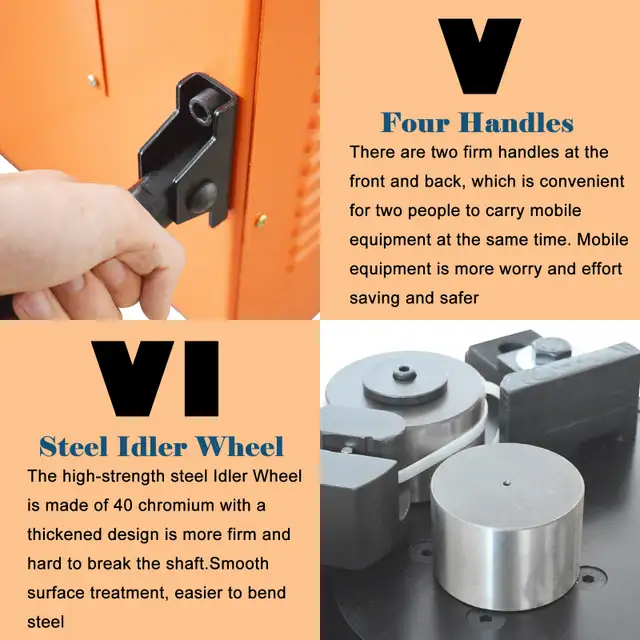

The bar bender machine adopts a sturdy iron machine body and durable Idler Wheel. Moreover, it can stand super-hard rebar with strong clamping force, which can help to reduce steel rebar waste.

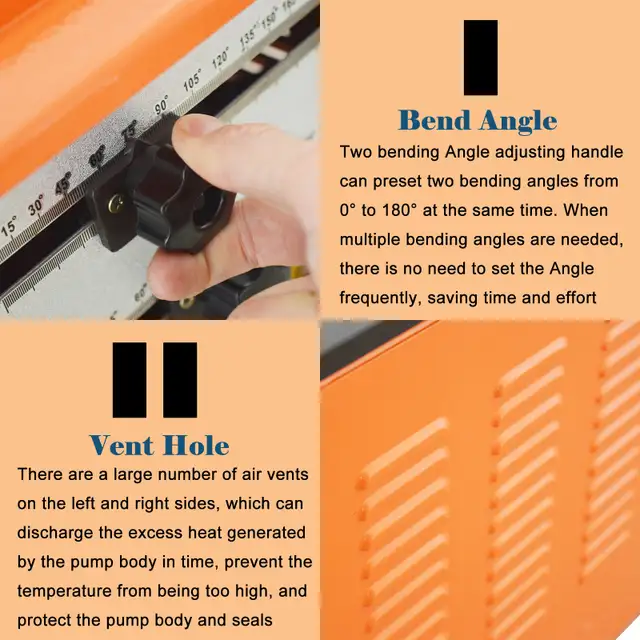

This rod bending machine has two slide-type angle selectors, which can help you accurately bend any angle from 0-180 degrees. Preset angle locks are designed for repeating the same angle bending.

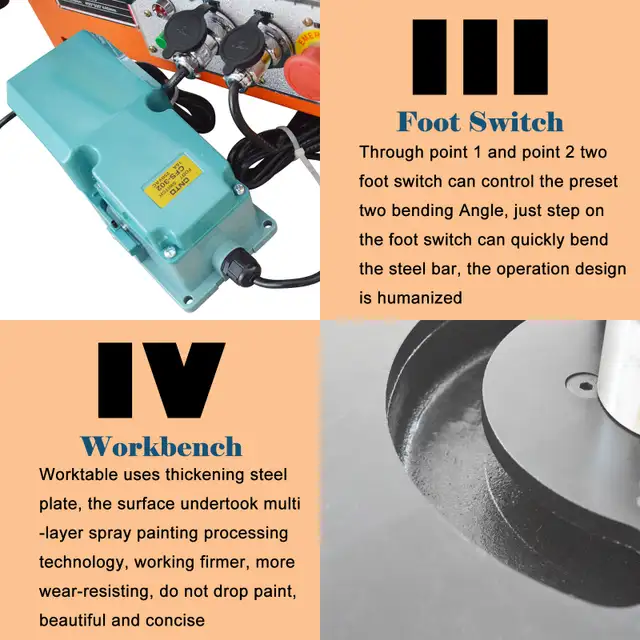

Foot switch design, convenient and efficient bending. With four handles on the corner for you to transport and operate effortlessly.
-
Item Included(056605)

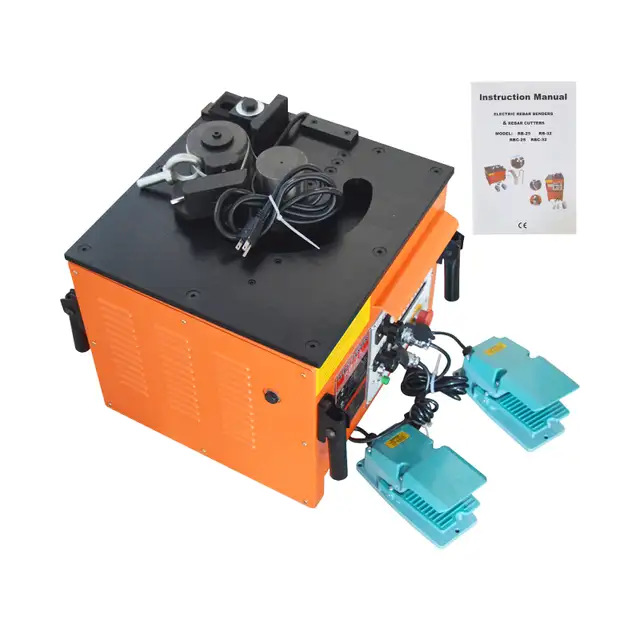

Rebar bending machine *1 Foot switch *2 English instruction manual *1
-
