Item number: 230170
-

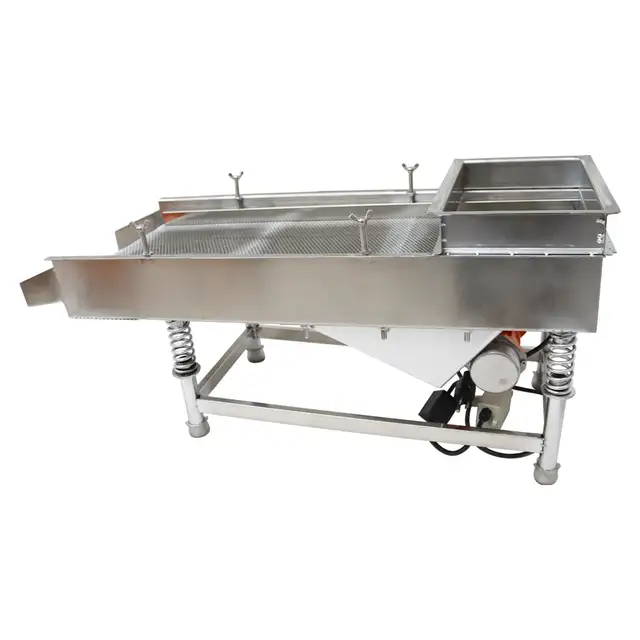

The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight. This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance. It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials.

Product advantages
◆The linear vibrating screen has the advantages of small volume, light weight, simple structure, convenient installation, easy operation and maintenance.
◆The linear vibrating screen has low energy consumption and high efficiency.
◆The screening accuracy of linear vibrating screen is high.
◆Linear vibrating screen parameters reasonable, stable performance.

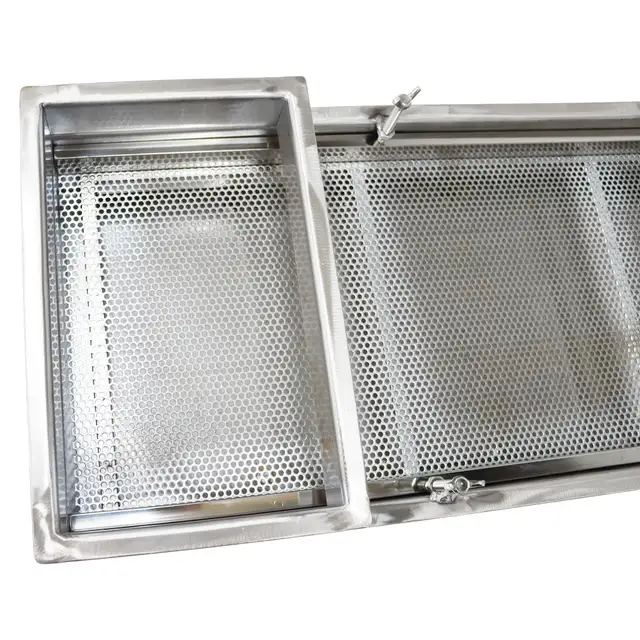

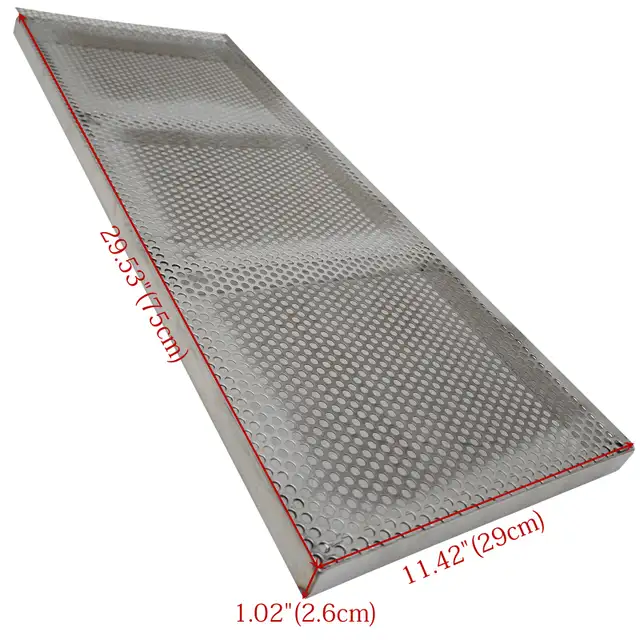

◆Vibrating screen with a sieve plate, with 6 mm round hole screen mesh. We also provide other sizes of screen, if you need to contact us.

Technical parameters
Input Voltage 110V
Power 80W

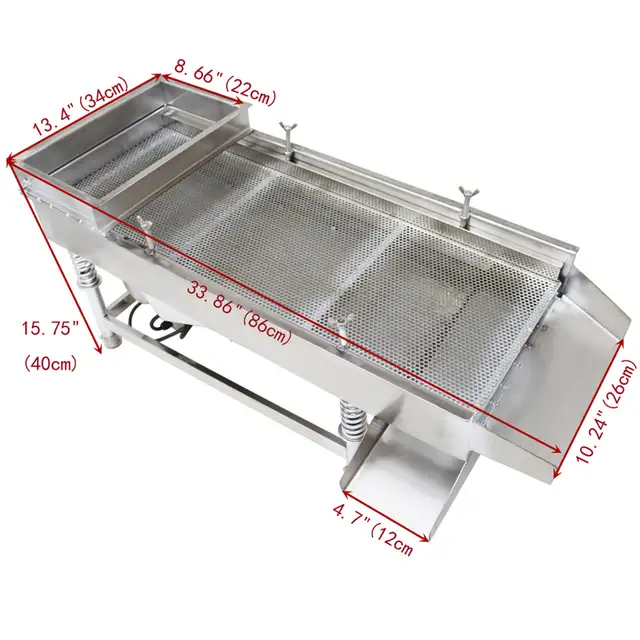

NET size of machine 33.86*13.4*15.75"
Size of first stage discharge port 4.7"

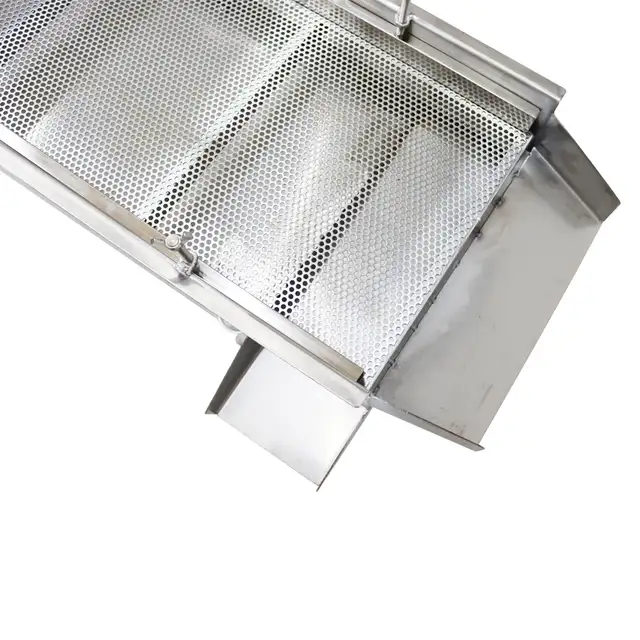

Size of secondary discharge port 10.24"
Mesh size 6mm
Mesh shape Round mesh


Working principle

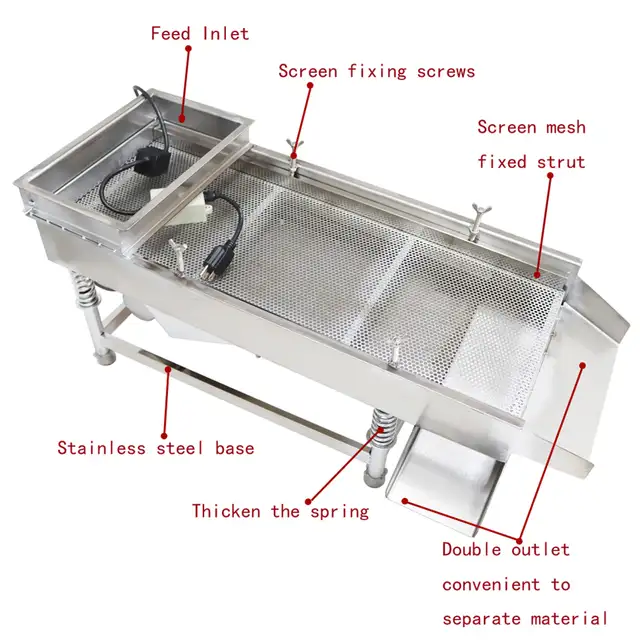

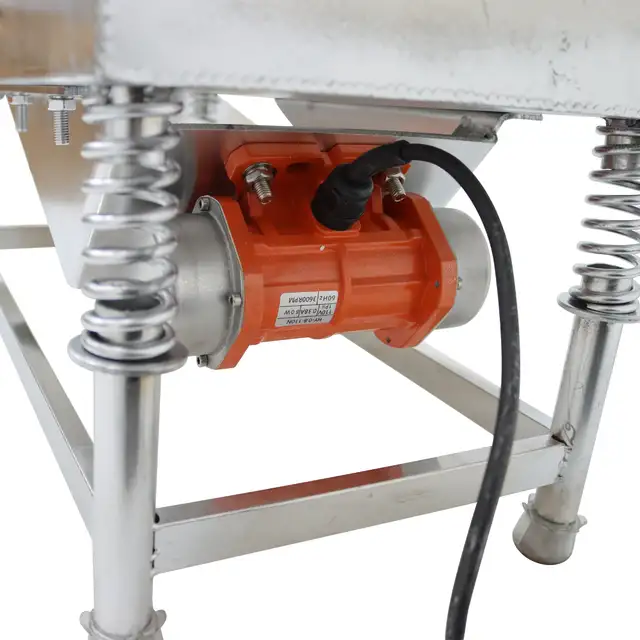

The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper vibrates in a straight line. After the material falls into the screen box from the feeding end, it quickly moves, loosens and sifts through the screen to complete the screening operation. This machine is composed of sieve box, vibration motor, vibration damping system and chassis. The sieve box is composed of a sieve frame, a sieve plate, a lining plate. This sieve machine adopts high-performance, high-life vibration motor. Adjusting the vibration force of the vibration motor, the vibration amplitude of the sieve machine and can be changed. The vibration damping system consists of a rubber spring and a clamp, a support base and the like. The chassis consists of a silo and a chassis.

Installation and use
◆Install screen, the stainless steel strip placed on the screen, with 4 fixed bolts to the screen fixed, tighten the bolts to prevent screen looseness caused by excessive noise.
◆Before using, check the damping spring and the screws of each part to prevent the loosening caused by transportation.

◆Check the power supply voltage before starting to ensure safe operation.

◆Start-up operation, adjust the speed governor, running smoothly after the input of materials.

◆After screening, cut off the power.

Maintenance
◆Maintenance regular inspection equipment: regular inspection of the various parts of the vibrating screen is normal, such as motor, body, screen, etc. .
◆Clean Screen: regularly clean screen and screen to avoid material accumulation and blocking, affect the screening effect.

◆Prevent overload: in the use of the process, to avoid exceeding the rated load vibrating screen, so as to avoid damage to equipment.

◆Pay attention to safe operation: in the operation process, pay attention to safety, prohibit the fingers and other objects into the sieve body inside, so as to avoid accidents.






Item Included: 230170

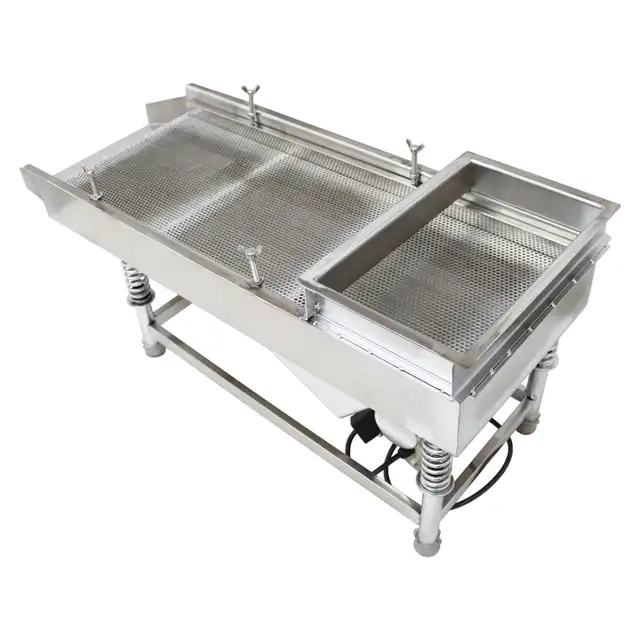

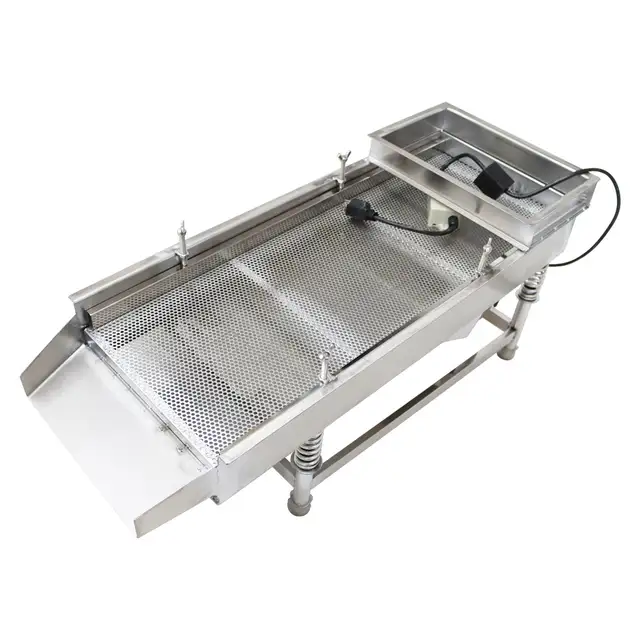

1*110V Stainless Steel Linear Vibrating Screen(6mm)
