Item number:230553
-
The mesh size is 6mm. If you need other sizes, please contact us directly.
The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight. This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance. It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials.

Working principle:
The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper vibrates in a straight line. After the material falls into the screen box from the feeding end, it quickly moves, loosens and sifts through the screen to complete the screening operation. This machine is composed of sieve box, vibration motor, vibration damping system and chassis. The sieve box is composed of a sieve frame, a sieve plate, a lining plate. This sieve machine adopts high-performance, high-life vibration motor. Adjusting the vibration force of the vibration motor, the vibration amplitude of the sieve machine and can be changed. The vibration damping system consists of a rubber spring and a clamp, a support base and the like. The chassis consists of a silo and a chassis.

Specifications:
Voltage: 220V
Power: 80W
Screen size: 30cm*75cm(11.8 "*29.5")
Dimensions: 80cm*36cm*38cm(31.5 "*14.2" *15 ")
Net Weight: 14.4KG

Features:
1. With One Layer of Screen: The mesh size of the screen is 0.23inch (6mm). The screen is screwed to the machine, which is very tight.

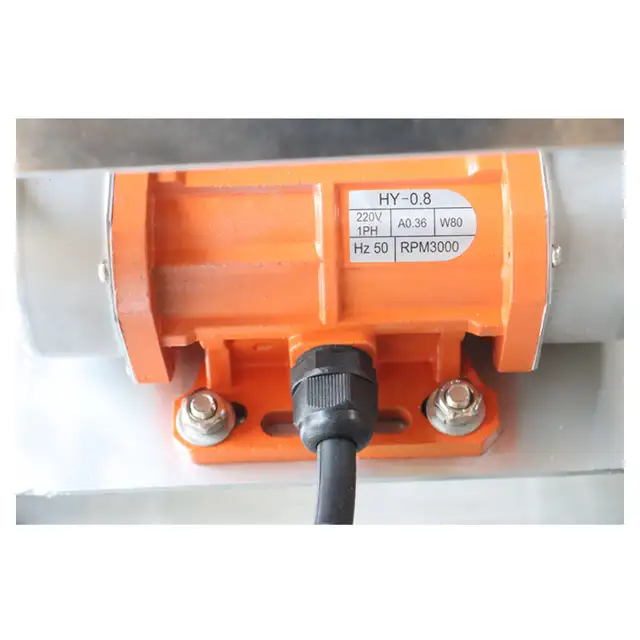

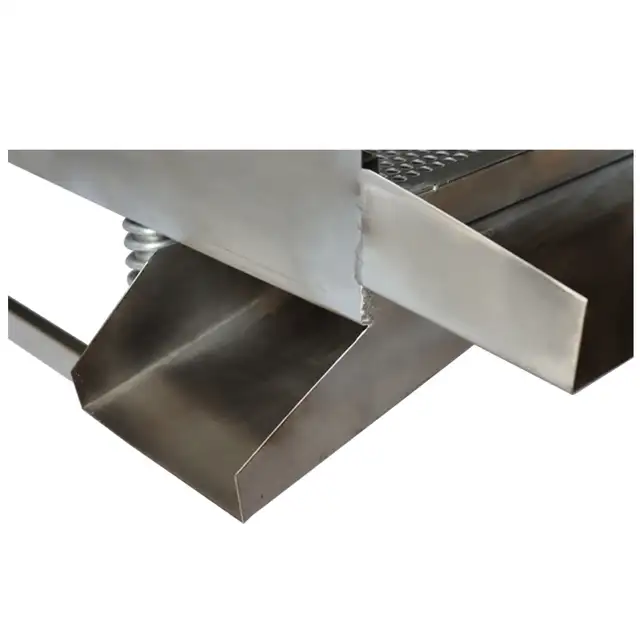

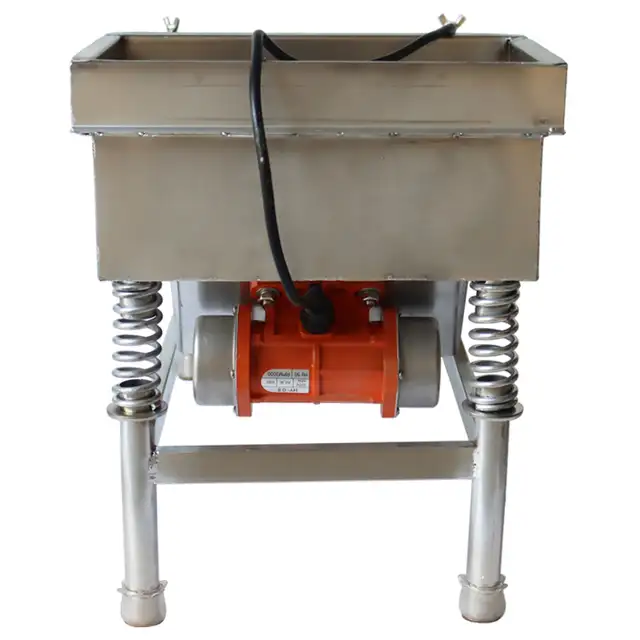

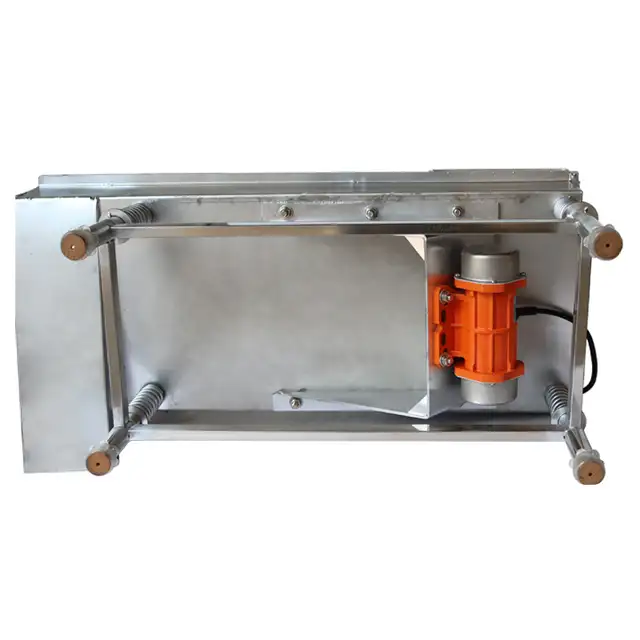

2. Fast and Stable Shaking: The Vibrating Sieve Machine has a powerful copper core motor. Four springs with good elasticity equipped to stably transmit vibration. One layer shaker has 2 discharge holes, with big size to improve efficiency.
3. Made of Stainless Steel: Made of Stainless Steel.
4. Adjustable Vibration Amplitude: The vibration amplitude of the sieve machine can be changed by adjusting the vibration force of the vibration motor.

Item Included: 230553

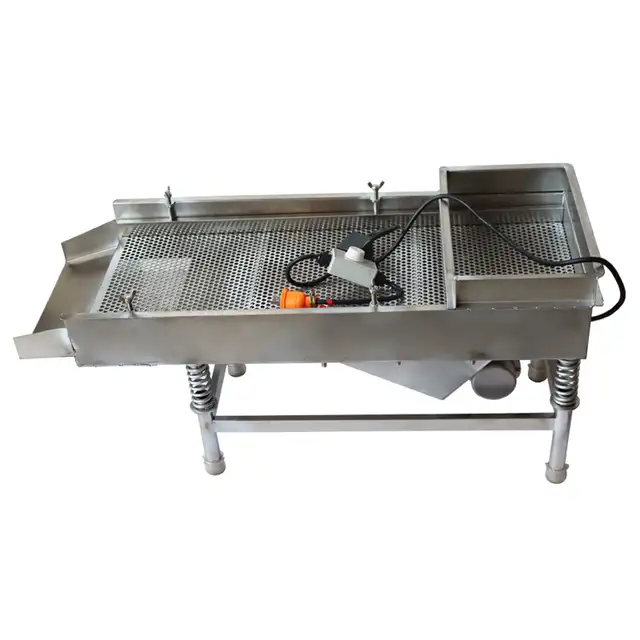

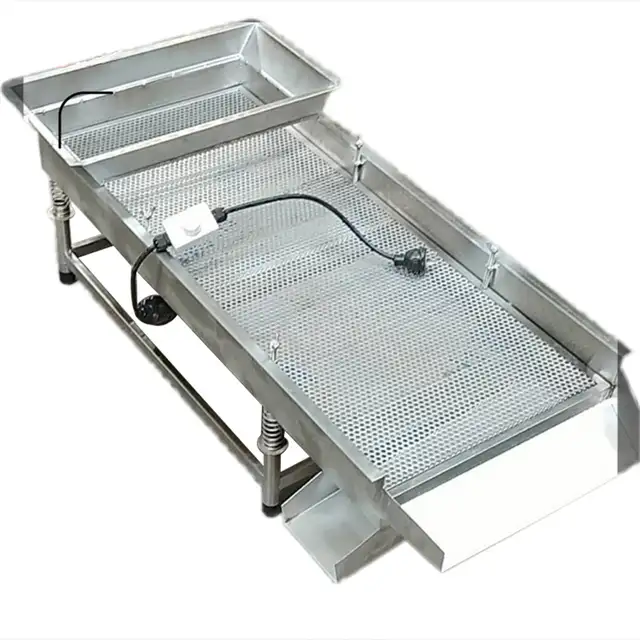

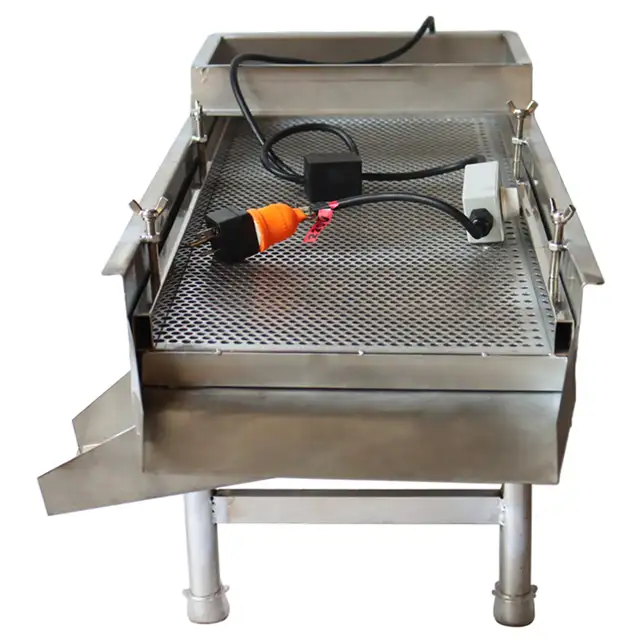

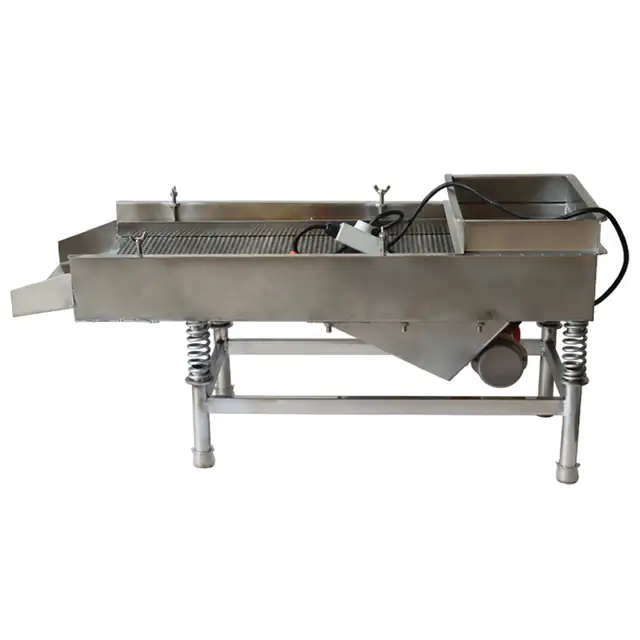

1 Set of 220V Small Stainless Steel Linear Vibrating Screen
