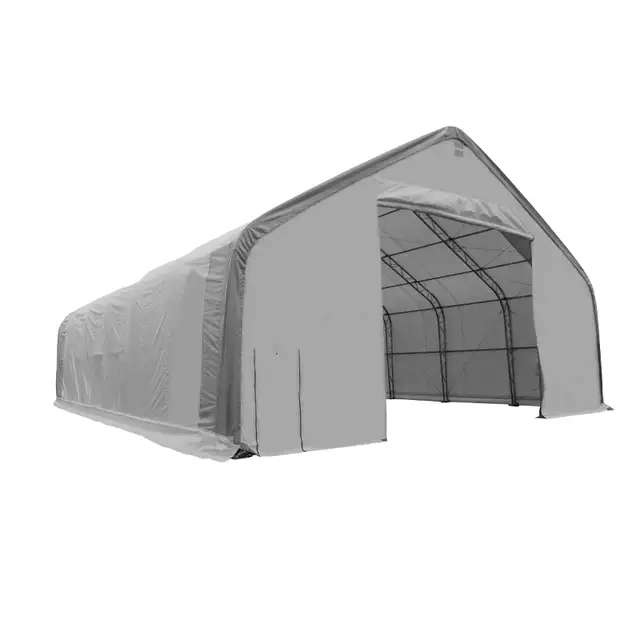

Model: SS4060024DP
Features

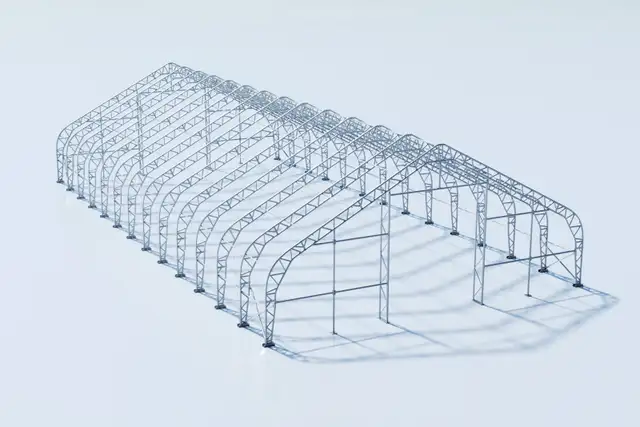

Frame Work: Straight Wall Peak Double Truss with hot dipped galvanized steel.
Fabric Cover: Fire retardant, Water-resistant, UV protection.

Specifications

Shelter Width: 40FT
Shelter Length: 60FT
Shelter Height: 24FT
Shape: Peak / Double Truss
Cover: 22oz(610GSM) PVC
2 Front & Back winch / man doors on both ends
​Winch Door opening dimension: W 4.6m x H 5.3m
Winch Door clearance dimension: W 4m x H 4.8m
Man Door dimension: W 1m x H 1.9m
​Eave height: 3.87m
​Number of trusses: 7
​Approximate truss spacing: 10FT (3.05m)
​Number of large anchor plates: 14
Ventilation windows on both ends​

Warranty

Warranty Terms and Conditions (EN)
Conditions de Garantie (FR)

Packing Size

Box 1: 107″(L)*43″(W)*22″(H)
Box 2: 107″(L)*43″(W)*49″(H)
Box 3: 124″(L)×43″(W)×49″(H)

Packing Weight

Box 1: 1311 lbs
Box 2: 1776 lbs
Box 3: 3196 lbs

Recommended Foundations​

Concrete spread footings/padding
Poured in place concrete walls
​Precast concrete walls
Lock blocks
Sea Containers
