Model: SS5010026DP
Features

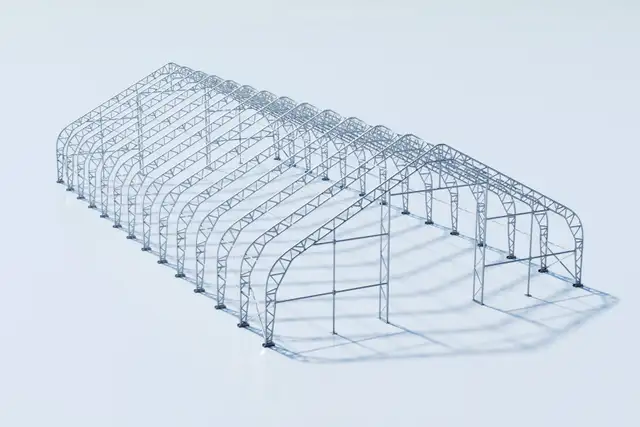

Frame Work: Straight Wall Peak Double Truss with hot dipped galvanized steel.
Fabric Cover: Fire retardant, Water-resistant, UV protection.

Specifications

Shelter Width: 50FT
Shelter Length: 100FT
Shelter Height: 26FT
Shape: Peak / Double Truss
Cover: 27oz(750GSM) PVC
2 Front & Back winch / man doors on both ends
​Winch Door opening dimension: W 5m x H 5.8m
Winch Door clearance dimension: W 5m x H 5.3m
Man Door dimension: W 1m x H 1.9m
​Eave height: 3.97m
​Number of trusses: 11
​Approximate truss spacing: 10FT (3.05m)
​Number of large anchor plates: 22
Ventilation windows on both ends​

Warranty

Warranty Terms and Conditions (EN)
Conditions de Garantie (FR)

Packing Size

Box 1: 110″(L)*43″(W)*49″(H)
Box 2: 110″(L)*43″(W)*49″(H)
Box 3: 115″(L)×43″(W)×49″(H)
Box 4: 124″(L)*43″(W)*49″(H)
Box 5: 124″(L)×43″(W)×20″(H)

Packing Weight

Box 1: 2625 lbs
Box 2: 1978 lbs
Box 3: 2262 lbs
Box 4: 3518 lbs
Box 5: 887 lbs
