Item number: 021362 021363 021364 021365 021366 021367 021368 021369 021370

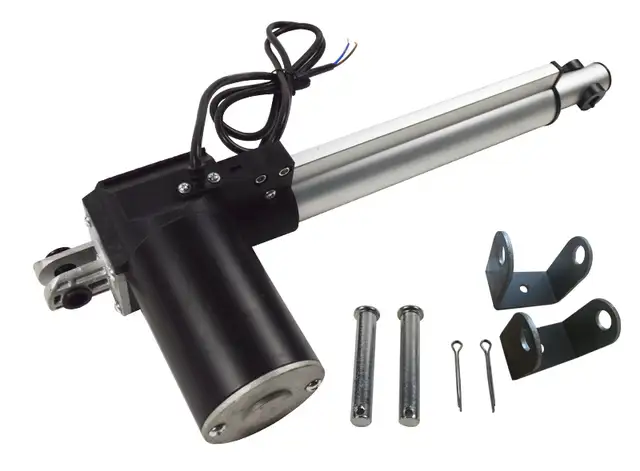

1320LBS Linear Actuator 12V DC 6000N Electric Push Rod DC Motor Industrial High-Thrust Small Lifter Push-Rod Motor
-
Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.
Please Note:
Because of  many models, different telescopic length. So actual item may look different from the one shown on the webpage. The web page shows: S = 200MM (8Inch).

Parameters:
Input Voltage: 12V DC
Stroke Length: S = 150mm (5.9inch)
Min Installation Dimension: L=S 175mm
Max Installation Dimension: A= 2S 175mm
Max Push Load: 6000N (1320lbs)
Max Pull Load: 4500N (990lbs)
Speed : 5~7mm/s
Operating frequency: Max 25%
Duty Cycle: 25%
Protective Class: IP54
Operation Temperature: -26~85 Degrees Centigrade
Control Mode: Positive & Negative

All models details
Item number: 021362
Price : C$ 45
Stroke Length: S = 50mm (1.97in)
Package size: 12.6*6.7*4.7inch (32*17*12cm)
Gross weight: 4.95lbs (2.25kg)


Item number: 021363
Price : C$ 50
Stroke Length: S = 100mm (3.94inch)
Package size: 13.8*6.7*4.7inch (35*17*12cm)
Gross weight: 5.28lbs (2.4kg)


Item number: 021364
Price : C$55
Stroke Length: S = 150mm (5.9inch)
Package size: 20.5*7.1*6.3inch (52*18*16cm)
Gross weight: 6.38lbs (2.9kg)

Item number 021365
Price : C$64
Stroke Length: S = 250mm (9.84inch)
Package size: 20.5*7.1*6.3inch (52*18*16cm)
Gross weight: 6.38lbs (2.9kg)

Item number 021366
Price : C$ 68
Stroke Length: S = 300mm (11.8inch)
Package size: 22.1*6.7*4.7inch (56*17*12cm)
Gross weight: 6.49lbs (2.95kg)

Item number 021367
Price : C$73
Stroke Length: S = 350mm (13.78inch)
Package size: 24*6.7*4.3inch (61*17*11cm)
Gross weight: 6.93lbs (3.15kg)

Item number 021368
Price : C$ 77
Stroke Length: S = 400mm (15.74Inch)
Package size: 25.6*6.7*4.3inch (65*17*11cm)
Gross weight: 6.93lbs (3.15kg)

Item number 021369
Price : C$ 80
Stroke Length: S = 450mm (17.7Inch)
Package size: 28*7.1*4.3inch (71*18*11cm)
Gross weight: 7.48lbs (3.4kg)

Item number 021370
Price : C$ 87
Stroke Length: S = 500mm (19.7Inch)
Package size: 22.1*6.7*4.7inch (56*17*12cm)
Gross weight: 6.49lbs (2.95kg)










Item Included: 021362 021363 021364 021365 021366 021367 021368 021369 021370
1 set of  Linear Actuator(6000N,50mm,12V DC) --021362
1 set of Linear Actuator(6000N,100mm,12V DC)--021363
1*Linear Actuator(6000N,150mm,12V DC) --021364
1 *Linear Actuator(6000N,250mm,12V DC)--021365
1 set of Linear Actuator(6000N,300mm,12V DC)--021366
1 set of Linear Actuator(6000N,350mm,12V DC)--021367
1 set of  Linear Actuator(6000N,400mm,12V DC)--021368
1 set of Linear Actuator(6000N,450mm,12V DC)--021369
1 set of Linear Actuator(6000N,500mm,12V DC)--021370
