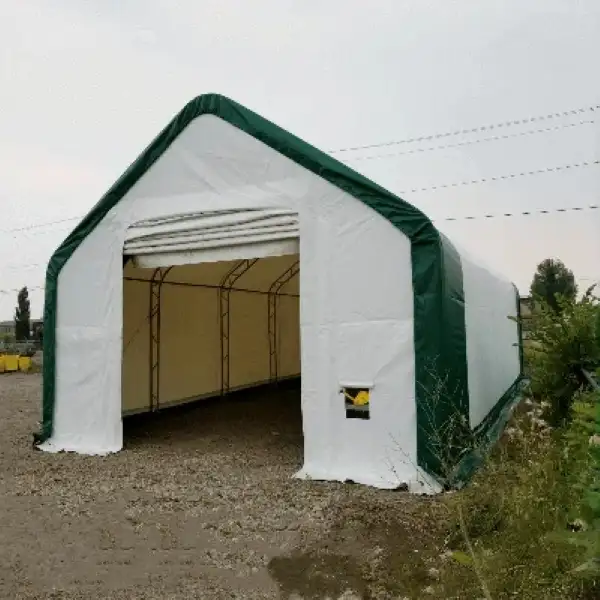

Model: SS308022DP
Features

Frame Work: Straight Wall Peak Double Truss with hot dipped galvanized steel.
Fabric Cover: Fire retardant, Water-resistant, UV protection.

Specifications

Shelter Width: 30FT
Shelter Length: 80FT
Shelter Height: 22FT
Shape: Peak / Double Truss
Cover: 22oz(610GSM) PVC
2 Front & Back winch / man doors on both ends
​Winch Door opening dimension: W 4m x H 4.8m
Winch Door clearance dimension: W 4m x H 4.3m
Man Door dimension: W 1m x H 1.9m
​Eave height: 3.77m
​Number of trusses: 9
​Approximate truss spacing: 10FT (3.05m)
​Number of large anchor plates: 18
Ventilation windows on both ends​

Warranty

Warranty Terms and Conditions (EN)
Conditions de Garantie (FR)

Packing Size

Box 1: 110″(L)×43″(W)×19″(H)
Box 2: 110″(L)×43″(W)×49″(H)
Box 3: 124″(L)×43″(W)×49″(H)

Packing Weight

Box 1: 1280 lbs
Box 2: 1722 lbs
Box 2: 2938 lbs

Recommended Foundations​

Concrete spread footings/padding
Poured in place concrete walls
​Precast concrete walls
Lock blocks
Sea Containers
