Item number: 006207
-

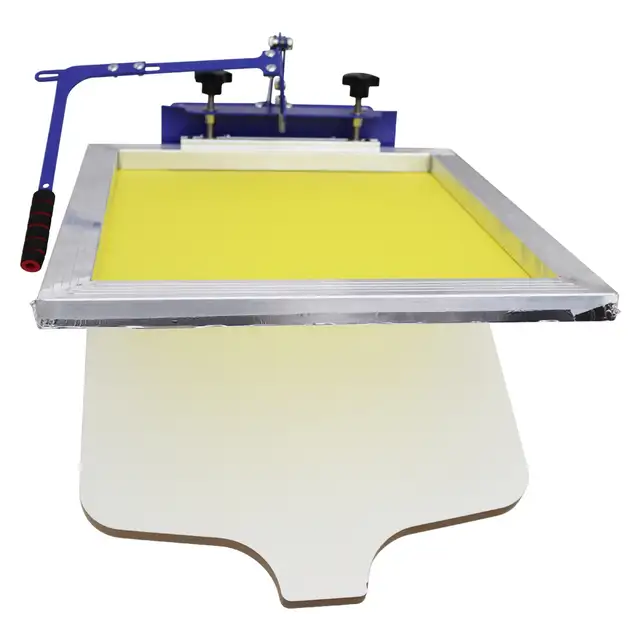

1 Color 1 Station Silk Screen Printing Machine Simple Screen Press for DIY T-Shirt Clothing Hats Adjustable 006207

Based on the needs of the consumers and market, our company R&D this new kind of 1 color simple screen press, which is easy operated but with very low cost and is especially suitable for single color T-shirt printing.
* If you are familiar with screen printing, you can print 120 pcs one color shirt per hour.
* Please note the screen frame shown in the picture are not included.

Main features & special functions:
It can also be applied to printing on substrates which need overprinting, such as pillowcase, bag, non-woven bags and so on. The user can only change the pallet according to the substrates to satisfy the needs of different kinds of printing and it is easy to dismantle the pallet.

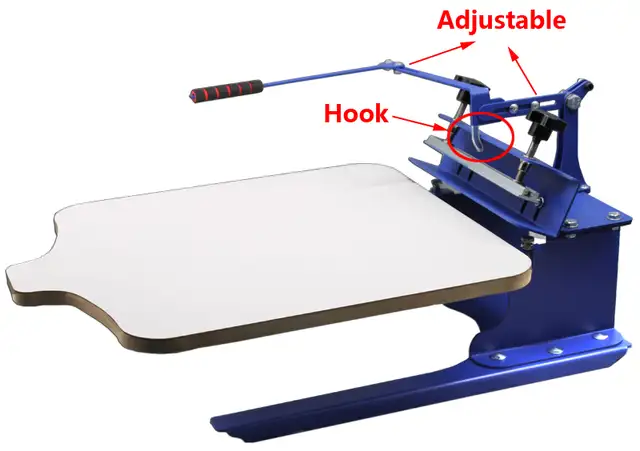

Using the lever principle to control the handgrip, lift up the screen frame and hook it.

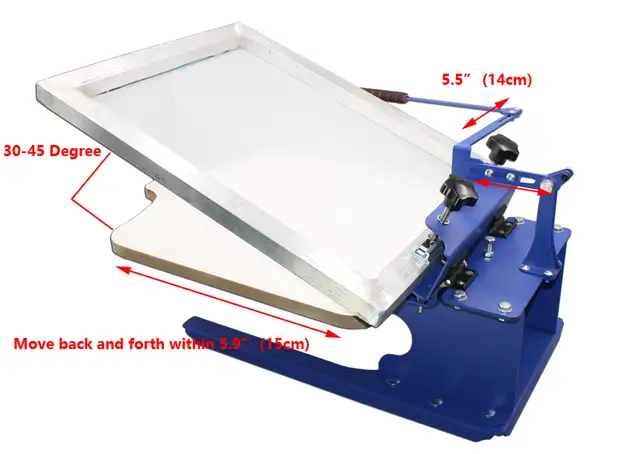

Adjusting the adapting piece to lift up the screen frame at an angle of 30-45 degree.
Put up the handgrip will lay down the screen frame.
The handgrip could be moved with 5.5" (14cm) in the horizontal direction, suitable for the screen frames which size is less than 23.6" (60cm).
Max thickness of screen frame clamp is 0.78 "(2cm), it could be adjusted according to the thickness of the substrates.
Has a metal pad under the screen frame clamp, it makes more easier to adjust the height.
Necessary hand tools are supplied.  necessary hand tools are supplied.

Parameters:
Pallet Size: 17.7"x21.7" (45x55cm)
Pallet thickness: 0.7" (1.8cm)
Net Weight: 26Lb (12kg)
Gross Weight: 30Lb (13.5kg)
Package Size: 24"x20"x11" (60x50x28cm)
Width of the screen frame clamp: 9.4" (24cm)

Item included: 006207
1 set of 1 Color Simple Screen Press
