Item number: 188002
-

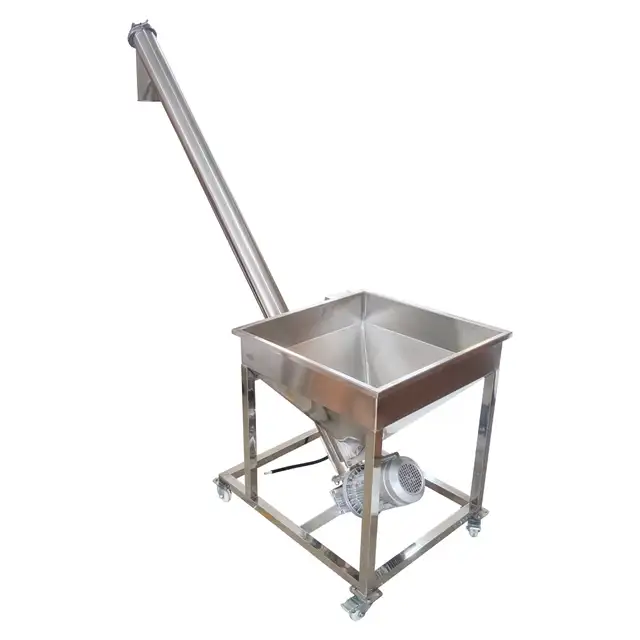

Spiral Powder Feeding Machine Electric Screw Type Conveyor Stainless Steel Spiral Powder Screw Conveyor with Hopper 67" Height 1100W 220V 188002

Product Overview
Screw Type Powder Automatic
Feeding Machine is widely used in food industry, suitable for conveying powder,granular, small pieces of materials.It can be divided into level, inclined and combined types according to configuration style.It can finish concentrated transportation, respectively conveying, mixing materials, dewatering, mixture,customized batching, discharging and stacking, being used with other conveying device together.The Auger Conveyor is suitable for transferring a range of powders from ground level to packaging or filling machines or various applications, the product-feed of the conveyor is controlled to retain the product level in the product-hopper.

Product Parameters
Capacity：3m³/h Tank size： 100L
Motor Power: 1.1KW 220v/60Hz Inner stainless steel pipe diameter and wall thickness: 32mm/2mm
Rated current: 7.11A Stainless steel spiral blade thickness: 2mm

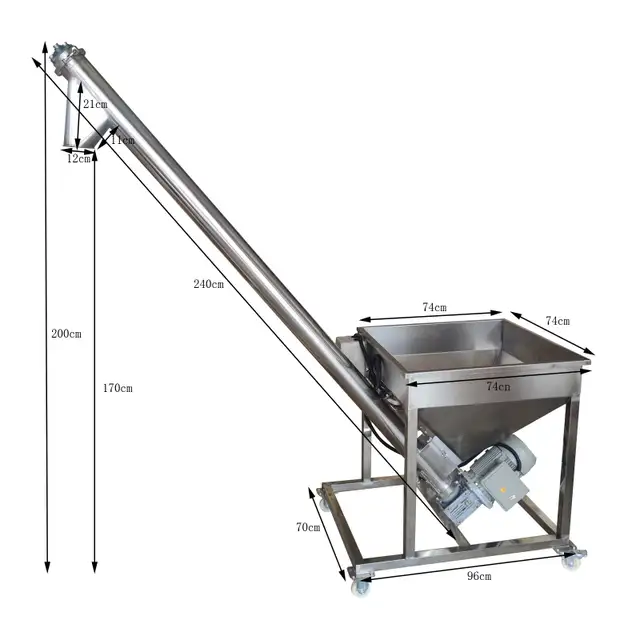

Conveyor Height 1.7m Stainless steel box size and wall thickness: 700*700*700mm/1.2mm
Motor speed: 1400r/min Stainless steel pipe diameter and wall thickness: 102mm/1.5mm
Application: Suitable for food, chemical, agriculture, mining, plastics and other industries, can handle powder, particles, food, medicine and so on

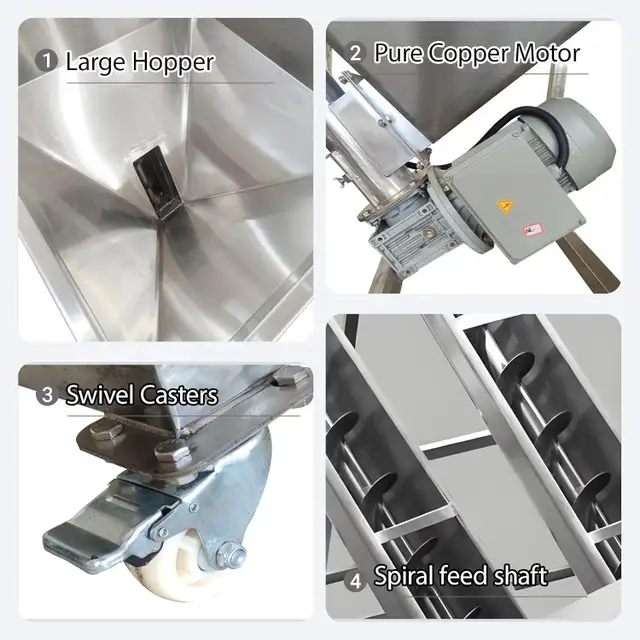

Product Features & Advantages
1. Metal material, beautiful and corrosion-resistant, large load-bearing capacity, safe and reliable.
2. Universal moving wheels, can move back and forth, safe and convenient, with brake function.
3. All parts of the roller and roller are made of stainless steel, which is not easy to rust, clean and easy to use
4. Small spiral blade gap, thickened blade, so that the material lifting fast, high output.
5. Good sealing, good rigidity.
6. The discharge port adopts oblique vertical, which is convenient for discharging material and better match with the equipment.


Item Included: 188002
1*1*Screw Type Powder Automatic Feeding Machine 220v
