Item number: 239844

8mm Wood Pellet Machine 60KG/H Wood Pelletizer Mill Machine for Sawdust/Corn/Stalks/Animal Feed 2 Head Rollers Pellet Mill Maker 220V/60Hz 7.5KW 239844
-
The small biomass processing pellet machine is extremely outstanding in terms of energy conservation and efficiency. It has unique effects and environmental benefits, and can turn straw and waste into treasure. It helps us solve the problem of storing or treating agricultural and forestry waste such as corn straw scales, cotton stalks, wood bran, wood powder, sawdust, peanut shells, rice husks, etc.

This machine uses waste wood to make fuel, which can replace gas and natural gas. Moreover, the fuel incineration displacement is lower, making it more environmentally friendly.

Note:

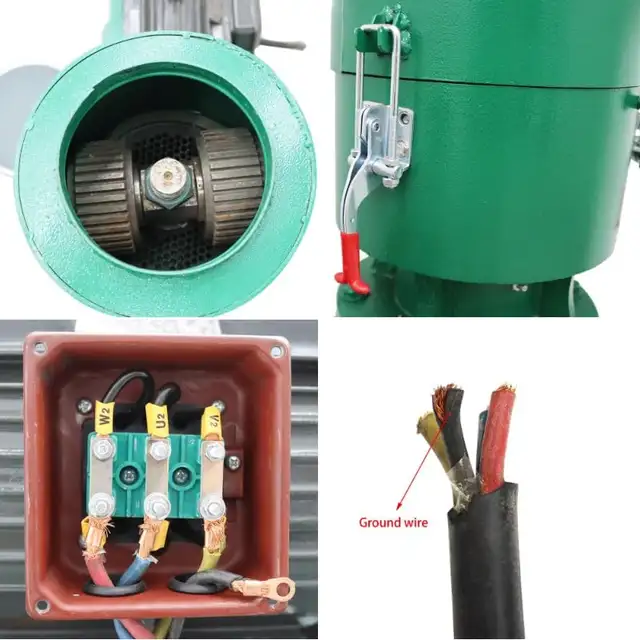

1. This machine is 220V three-phase, please pay attention to wiring issues when using it.

2. Before starting the machine,open the upper shell of the particle machine to determine if the nut above the pressure roller is secure. If there is any looseness, use a wrench to tighten it.

3. After connecting the power supply, turn on the machine to check if the rotation direction of the pressure roller is correct (counterclockwise direction).

4. Before starting the machine, please check whether the oil level inside the box meets the requirements and ensure that it is at the normal oil level (two-thirds of the oil mirror).

5. Check the oil temperature after 10 minutes of load operation, and the temperature rise should not exceed 50 ℃.

6. Please carry out daily maintenance and do not accumulate dust and oil stains on the outer frame of the gearbox to avoid affecting heat dissipation.

7.Remove the rubber ring from the brass vent nut before starting.

8.Replace the LCKC150#200# gear oil after 500 hours of use for the first oil change.

Product parameters
voltage: 220V three-phase electricity
Power: 7500W
Production: 60KG
Wood chip particle combustion value: 3000-4300 kcal/kg.

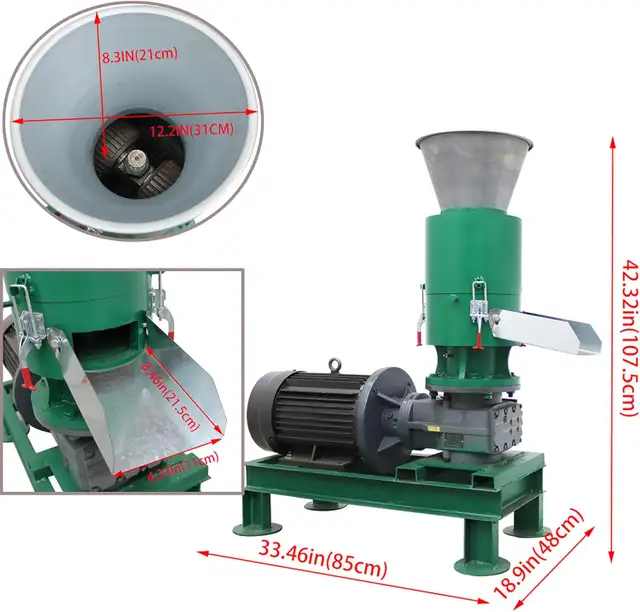

Feed hopper inside diameter: 11in(28cm)
Feed hopper outside diameter: 12.2in(31cm)
Depth of feeding hopper: 8.3in(21cm)
Outlet size: 8.46in*4.33in(21.5*11cm)

Feature
This machine is equipped with an enlarged and widened discharge port to prevent feed splashing and facilitate the collection of feed by customers.

Enlarge the feed inlet
The machine adopts the design of enlarged feed port, which makes it more convenient for you to feed and effectively improves work efficiency.

Gear oil needs to be added to the gearbox, and we have already added the oil. (LCKC150 # 200 # gear oil)


After using the machine for a period of time, the customer needs to add grease here to lubricate the grinding chamber (approximately 4-6 months of use) (the grease gun and grease need to be purchased by the customer themselves, we do not provide them).

The machine is equipped with air switch, which is safer to use.

This reducer has been lubricated before leaving the factory. Before use, please confirm that the lubricating oil is above the center point. After the first 85 hours of operation, the lubricating oil needs to be replaced. From now on, the lubricating oil should be changed every 2500 hours and the oil level should be checked regularly.

This machine is equipped with a high-quality motor, which is more durable.



Precaution
1.When using, it should be noted that there should be no foreign matter such as stones and ironblocks in the raw materials. After the pellet machine has been working continuously for morethan ten shifts, the pressure roller oil hole, the universal joint oil hole, and the linkage shaft oilhole need to be filled with high-temperature lubricating grease to make the pressure roller Goodworking performance and extended bearing life.
2.During granulation, it is strictly forbidden for the pressure roller to contact with the templateto run idly, and the continuous feeding can not be interrupted.At the same time, the pressureroller shaft nut is locked to avoid loosening and damaging the spindle keyway.
3.When granulating, there is no granulation, no discharge, the template should be removed, andafter opening one by one, some fiber feed can be added appropriately to restart the granulation.
4.Always check the tightness of the screws in each part of the machine.
5.When the pellet machine is working, do not reach into the feeding port with your hands. Ifnecessary, use wooden sticks to help feed the pellets.
6.Before turning on the machine, it is necessary to add less material before turning on the
machine. When shutting down, leave a small amount of feed in the machine to prevent the pressroller of the machine from contacting the template from idling.
7.If the machine is stuck in operation, stop it immediately, press the pressure roller until thebolt is flat,and then restart the machine.

Details
The particles made of wooden raw materials have varying calorific values depending on the type of wood used, mainly determined by the raw materials. At present, the main raw materials for wood particles on the market are poplar, pine, miscellaneous wood, elm, oak, apple wood, jujube wood, camphor pine, mahogany, and other wooden materials. Hardwood wood is hard and produces the highest calorific value of products, such as pine, camphor pine, mahogany, and other soft wood processed products such as poplar miscellaneous wood and tung wood are generally low in calorific value!



Item Included: 239844
1*1*Wood pellet machine 8MM 220V
