Item number: 056838

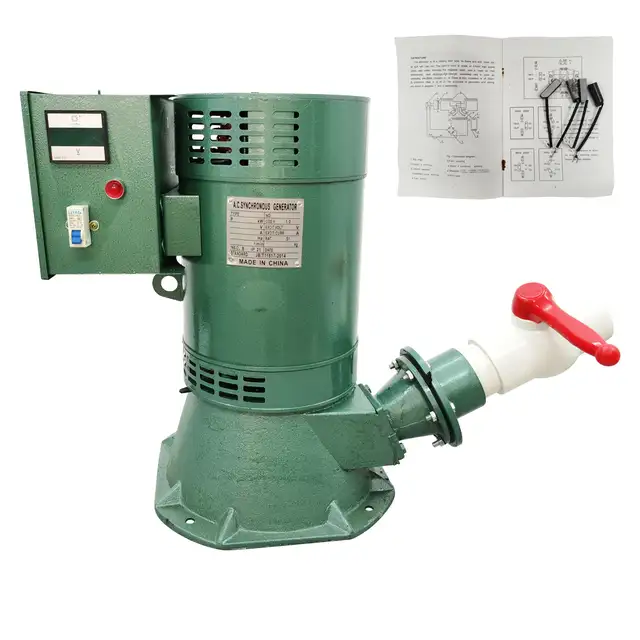

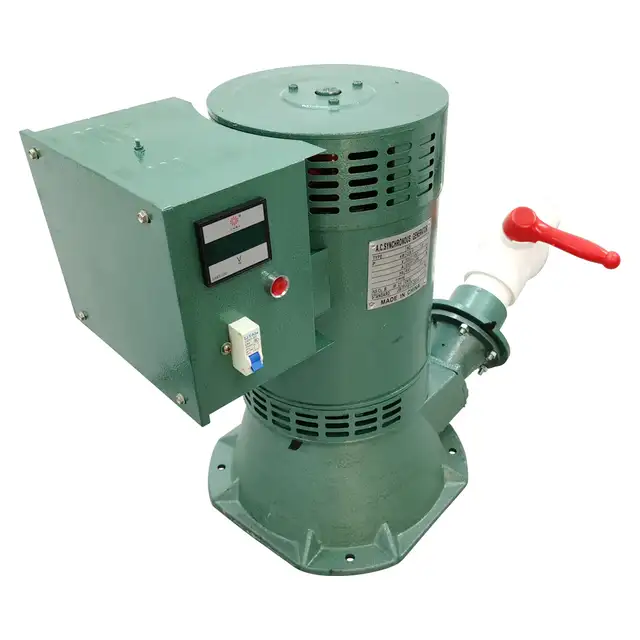

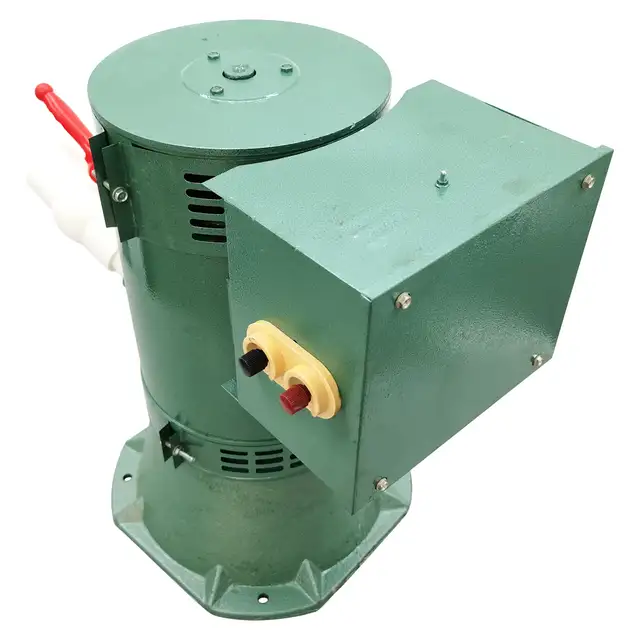

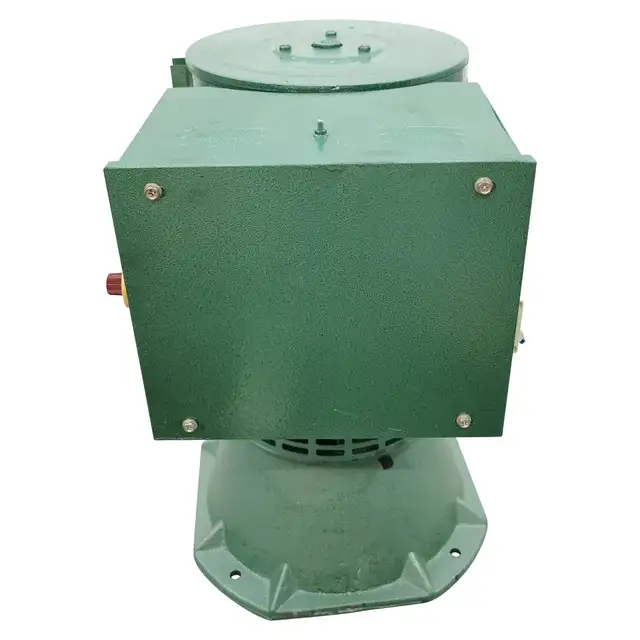

5KW 220V Hydroelectric Generator Set Automatic Regulated Excitation Water Pelton Turbine 0.035m³/s Flow Rate, 1500r/min 056838

-

Product Overview

The oblique impact hydroelectric generator uses a simple spoon shaped blade to form a hydraulic turbine, consisting of a casing, nozzle, impeller, and generator. Its design is extremely simple. When high-speed water flows from the nozzle to the blades, the blades rotate at high speed, thereby driving the generator to generate electricity. The oblique stroke water turbine generator set belongs to the high head and small flow generator set, and is generally applicable to a water head range of more than 15 meters. Due to its simple structure, small size, light weight, simple structure, automatic voltage regulation and protection, and convenient use, it can effectively solve power consumption problems.



Product Parameters

Voltage: 220V single-phase

Frequency: 60HZ

Power: 5KW

Water Head(drop height): ≥49FT(15m)

Current: 22.8A

Flow rate: 0.035m³/s

Speed: 1500r/min

Excit.Volt: 49V

Excit.Curr: 2.6A

RAT: S1

Inlet bore: 3"(7.5CM)

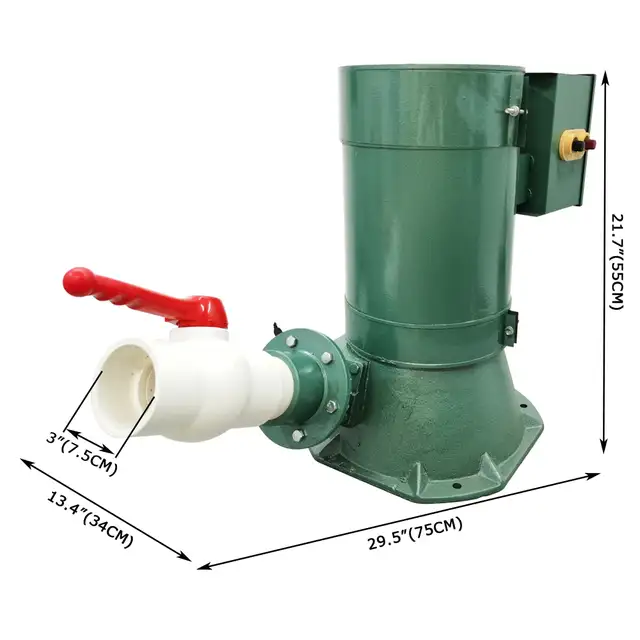

Product size: 29.5"*13.4"*21.7"(75CM*34CM*55CM)

Package size: 24.8"*17"*29"(63CM*43CM*74CM)

Net weight/Gross weight: 176lbs(80kg)/206lbs(93.5kg)



Product Features & Advantages

1. Automatic Voltage Regulation:

Automatic voltage regulation and leakage protection. It emits 220V electricity without the need for batteries and inverters, with low cost and stable voltage.



2. Convenient to Use:

The packaged unit composed of a direct connected permanent magnet synchronous single-phase AC generator with a diagonal turbine has the characteristics of small volume, light weight, simple structure, reliable operation, and convenient installation and use, which can effectively solve power consumption problems.

3. Stable Performance:

Both the water turbine and generator have undergone enhanced technical treatment, with reliable quality and stable performance, which can be operated by anyone. They are suitable for users to purchase, build, manage, and use themselves.



4. Heat Dissipation Design:

The body has a heat dissipation window, which allows for timely heat dissipation during motor operation, reduces motor temperature, prolongs working time, and ensures the normal operation of the machine.

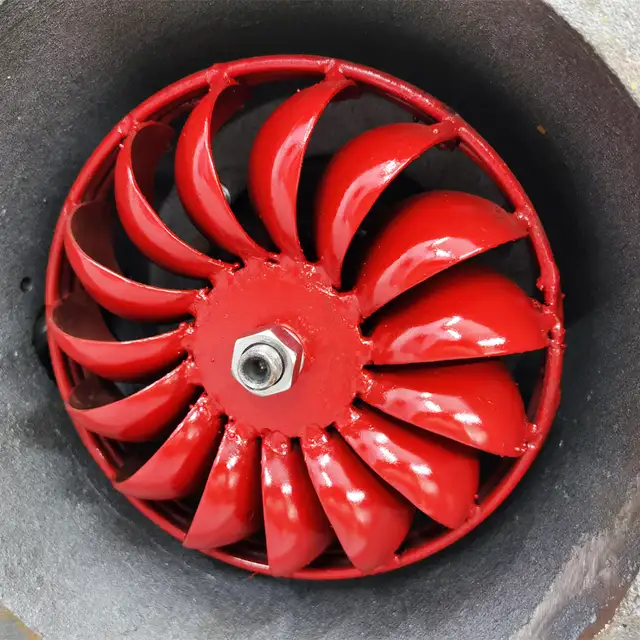

5. Simple Design:

The water turbine is composed of a simple spoon shaped blade, consisting of a casing, nozzle, impeller, and generator. Its design is extremely simple. When high-speed water flows from the nozzle to the blades, the blades rotate at high speed, driving the generator to generate electricity.



6. Durable and Sturdy:

The machine is made of 100% copper wire, with a sturdy turbine, generator casing, and turbine casing. It can also withstand impact and deformation under harsh conditions, and has a long service life.





Item Included: 056838

Hydroelectric generator *1

Carbon brush *4
