DURKOPP ADLER 867 CLASSIC INDUSTRIAL WALKING FOOT SEWING MACHINE
Subclass 867-190145 - Full Automatic Feature Set - Excellent Condition
Premium Kessler German Table - Efka Servo System
Asking $5,495 firm

Text message only: 416-880-8024 (no phone calls - text gets fastest response)

LOCATION

Sutton West / Georgina, Ontario (postal code L0E1R0)
Approximately 1 hour north of Toronto, just off Highway 404
FREE local pickup - inspection and demo welcome
Worldwide freight shipping available through licensed broker

OVERVIEW

Dürkopp Adler 867 industrial walking foot sewing machine in excellent working condition. Premium Kessler German-made table, full Efka servo motor system, all automatic functions working. Ready to sew the day you bring it home.

This is the 867-190145 CLASSIC configuration - a meaningful tier above the base ECO models - with the full automatic feature set that production shops rely on day to day.

TECHNICAL SPECIFICATIONS

- Brand: Dürkopp Adler
- Model: 867
- Subclass: 867-190145 (Classic)
- Type: Single-needle flat bed lockstitch
- Feed system: Triple feed (bottom needle walking foot)
- Hook: XXL vertical (70% larger bobbin capacity)
- Max stitch length: 12mm
- Max foot lift: 20mm
- Max speed: 3,800 SPM
- Needle system: 134-35
- Voltage: 230V single phase
- Power: 670W
- Motor: Efka DC1550 servo
- Control: Efka Variocontrol 810
- Year: 2008-2010 (approximate)
- Origin: Assembled in Czech Republic by Dürkopp Adler AG (Bielefeld, Germany)

KEY FEATURES

- Triple feed system: bottom feed needle feed alternating walking foot
- XXL vertical hook - 70% larger bobbin capacity than standard hooks (fewer bobbin changes during long production runs)
- Short thread trimmer leaves only approximately 5mm thread tail for clean seam ends
- Electro-pneumatic automatic back-tacking, programmable start and end
- Electro-pneumatic automatic sewing foot lift via knee switch
- Thread clamping device for neat seam beginnings
- 12mm max stitch length with two switchable lengths
- 20mm max presser foot lift
- Up to 3,800 stitches per minute
- Safety clutch protects the hook from jam damage
- Suitable for thread sizes up to Nm 10/3

WHAT IS INCLUDED

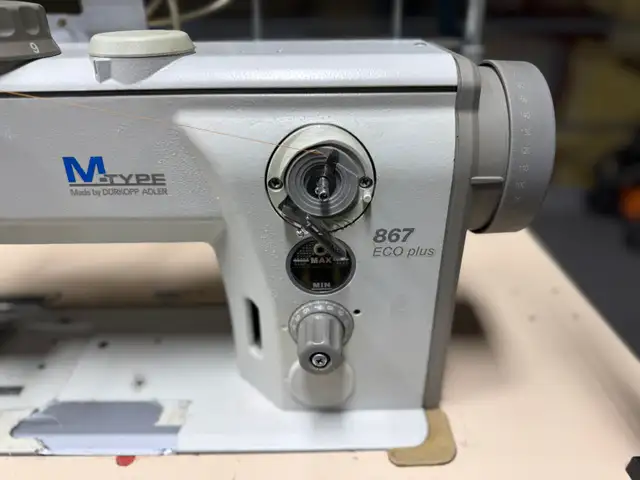

- Dürkopp Adler 867-190145 M-Type sewing head (serial 867980044)
- Kessler premium German-made table and stand
- Efka DC1550 servo motor (230V, 670W)
- Efka N208 control box

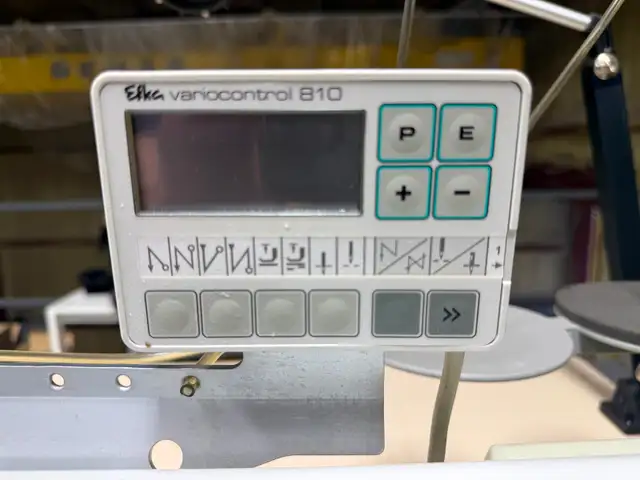

- Efka Variocontrol 810 operator panel with programmable parameters
- Parker pneumatic air filter and regulator
- ColorConnex pneumatic quick-disconnect coupling
- All cabling, foot pedal, knee lever, and pneumatic lines connected and tested

CONDITION

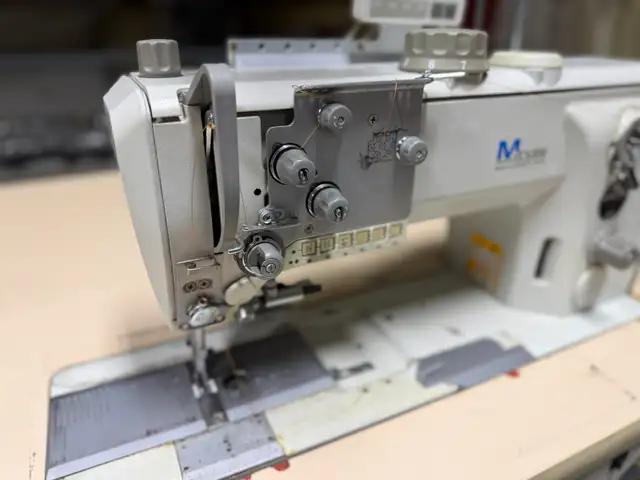

- Machine head: excellent condition, no rust, no impact damage, all dials and adjustments function correctly
- All automatic functions tested and confirmed working: thread trim, back-tack, foot lift, knee switch
- Sews cleanly through multiple layers of leather, vinyl, and heavy fabric
- Cosmetic: machine head paint is bright with minimal wear; table and electrical components show light cosmetic use consistent with a well-maintained professional setup
- All original components, no missing parts
- Pneumatic lines, electrical, and motor all functional

IDEAL FOR

- Upholstery shops (residential furniture, commercial seating, restaurant booths)
- Automotive upholstery and interior trim work
- Marine canvas, boat upholstery, and dodger fabrication
- Leather goods, saddlery, tack, and equestrian work
- Heavy bags, luggage, and outdoor equipment manufacturing
- Anyone upgrading from a Juki LU-2810 or Consew 206RB to premium German engineering

REQUIREMENTS

- 230V single-phase electrical (standard industrial outlet)
- Compressed air supply (regulator included) - required for pneumatic foot lift and back-tack functions
- Approximately 4ft x 2.5ft floor footprint

PROVENANCE

Originally purchased through Simard's of Cambridge, Ontario (dealer tag #20239), an authorized Dürkopp Adler dealer since 1971.

PRICE AND PAYMENT

Asking $5,495 firm. Acquired with other equipment during a business asset purchase. Not part of our current operations. The machine has been kept clean, lightly used, and fully operational since.

Payment methods accepted:
- Local: cash or e-transfer on pickup
- Shipped: e-transfer or wire transfer in advance, before freight is booked

Full payment required before pickup or shipping. No holds without deposit.

SHIPPING

- FREE local pickup in Sutton West / Georgina, Ontario
- Complete setup weighs approximately 330 lbs / 150 kg
- Bring a pickup truck or cargo van and one helper; loading assistance provided on this end
- Worldwide freight shipping available - buyer pays actual freight cost through licensed broker (Freightera, ICC Logistics, etc.)
- Message with full delivery address for a firm freight quote within 24 hours

INSPECTION

Happy to demo the machine running before you commit. Bring leather or vinyl scraps to test on your material. Local inspection welcome by appointment. Additional photos and video available on request.

CONTACT

Text message only: 416-880-8024 (no phone calls please - text gets fastest response)
Reply through OKz.ca messaging also accepted.

When you message, please include your shop name and intended use case. Serious inquiries only. No tire-kickers. No lowball offers.

ALSO LISTED ON

This item is also listed on eBay.ca and Facebook Marketplace. First serious buyer with deposit gets it. Prices held consistent across all platforms.

OTHER LISTINGS

I source and resell premium-condition industrial and automotive equipment. See my other OKz.ca ads for additional industrial sewing machines, including a Dürkopp Adler 867 Premium (with programmable DAC control and USB seam storage), a Juki DNU-1541, and a Pfaff 1245.
