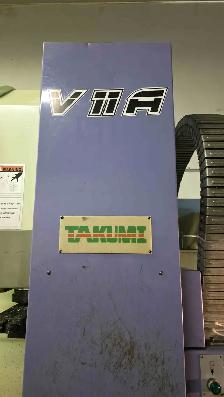

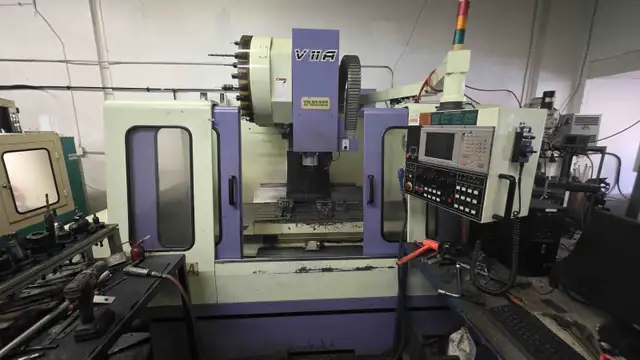

Here Is A Takumi V11A Vertical Machining Center We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - V11A
Year - 02/1998
Table Size - 53” x 20”
X Axis Travel - 43”
Y Axis Travel - 22”
Z Axis Travel - 25.6”
ATC (Side Mounted) - 24
Max Spindle Speed - 6000 RPM
Spindle Taper - BT-40
Max Load On Table - 1,760 LBS
Control - Mitsubishi
Spindle Motor - 10 HP
Power Capacity - 20 KVA
Electrics - 220V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 17,600 LBS
Approximate Overall Dimension - 146”L x 99”W x 109”H

Equipped With:

Mitsubishi 500M CNC Control
24 Side Mount ATC
Habor Spindle Chiller
Hand Pendant
Coolant System
Work Lamp
Fully Enclosed
