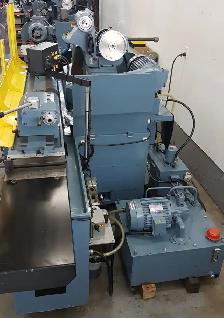

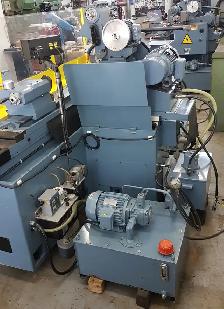

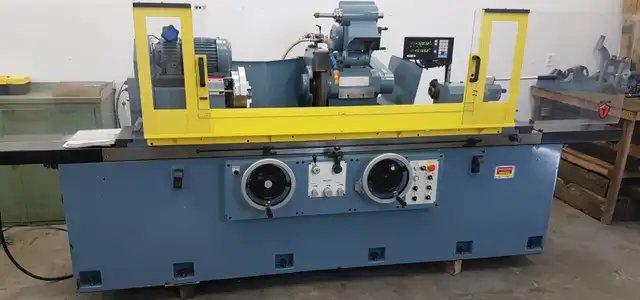

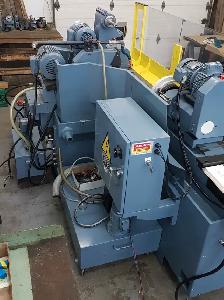

Universal Cylindrical Grinding Machine External Internal ENM (Willis) "LIKE NEW"
It was in a maintenance workshop, almost never used hence its condition.
This machine has been meticulously cleaned and fully serviced, despite never having been used. The original grinding wheel is still on the machine.
I can send you photos by email, as they are larger than the ones in the ad, and you'll be able to see its condition more easily.
Capacity:
Swing Over Table: (300mm) 11.8"
Distance Between Centers: (1200mm) 47.25”
Max. workpiece weight (kg):
Between center: 150Kg
Workead only: 40Kg

Table:
Table Swivel: 4° -9°
Table Taverse Speed 2 - 100 IPM
Table speed: 5-300cm/min 2”-118”/min

Wheelhead:
Grinding Wheel (Diameter x Width) 16" x 1.5"
Grinding Wheel Swivel: - 15° (Grad stop at)
Grinding Wheel Spindle Speed 1650/1850 RPM
Wheelhead stroke: 250mm (10”)

Work Head (Live/dead):
Speeds (two ranges infinitely variable) 30 - 600 RPM
Work Head Swivel: 30° -90°
RPM variable: 30~150/60~300

Motors:
Wheel: 5HP
Work Drive Motor: 1 HP
Hydraulic: 2Hp
Coolant Pump 1/4Hp
Internal: 1 Hp

Dimensions: Floor Space approx: 4600mm (17’) x 2040(80”) to be verified
Weight (approx) 8400lbs

Equipped With:
- Variable Speed Work Head
- Front safety splash guard with sliding doors and electrical interlock
- DRO (Fagor)
- 3 jaws chuck
- 4 Jaws chuck
- 3 points work rest
- 2 points work rest
- V work rest (2)
- 3 different diamond dressers
- Balancing stand with balancing arbor (Shaft) and bearings
- Wheel hubs extractor
- Internal spindle with several quill
- Driving dogs
- Carbide centers
- Grinding wheel spacer
- Technical manual

Dimensions (Floor Space): " L x " W x " H
Approx. Weight: 8400 Lbs

I Also have one identical make but smaller
