Quincy Compressor QT series @ NRG Management
Sales & Service
Installations also available to meet all codes.

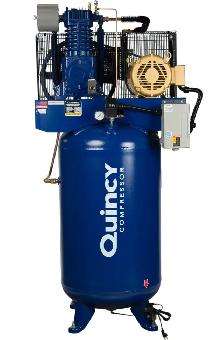

Model QT 5
Motor: 5HP
Power Supply :200,230 voltage 1/PH
Power Supply : 230/575 voltage 3/PH
Tank Size: 80 - Gallon Vertical Tank
Capacity : 17 CFM @ 175 PSI
Open Drip Motor
Starter included
Dimensions : 35Length x 28Width x 77 Height

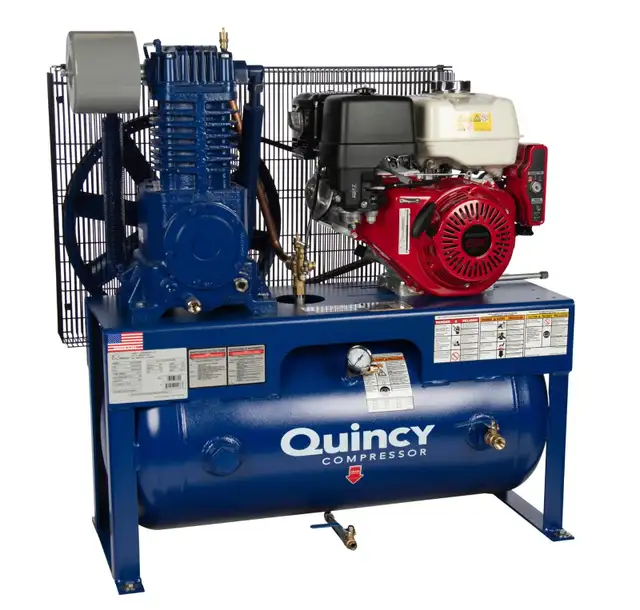

*** Gas Driven Units unit for your service truck application's.***

Warranty
3- Year Pump Warranty
2- Year Package Warranty
Product Description:
The Quincy QT series is designed for maximum productivity and efficiency; it is the reliable choice for light industrial and commercial applications. The QT-5 heavy-duty cast-iron construction and quality components make it more than a match for tough working conditions. The aluminum head dissipates heat to ensure the compressor is running as cool as possible while the Quincy valve design provides the highest volumetric efficiency available. Leading the industry with the most CFM per brake horsepower, the Quincy QT-5 delivers more air and consumes less energy.

Key Features & Benefits:
-Splash lubrication system to distribute oil. -Standard features for tank and base mount units - EISA 3-phase 60hz motors, OSHA style belt guard, pressure sensor for start/stop control. -Standard features for tank mount units - ASME coded tank & pressure relief valve, manual tank drain, and pressure gauge in receiver. -Optional NO BULL Warranty 3-Year Pump/ 2-Year Package Warranty -All Duplex configured PRO/MAX units ship with a single power supply control panel.

***Quincy has been around since 1920 and proven compared to others imported.***

Call for details or site inspections. (204) 399-1500

Leasing available to meet your budget.
