Item number: 145021

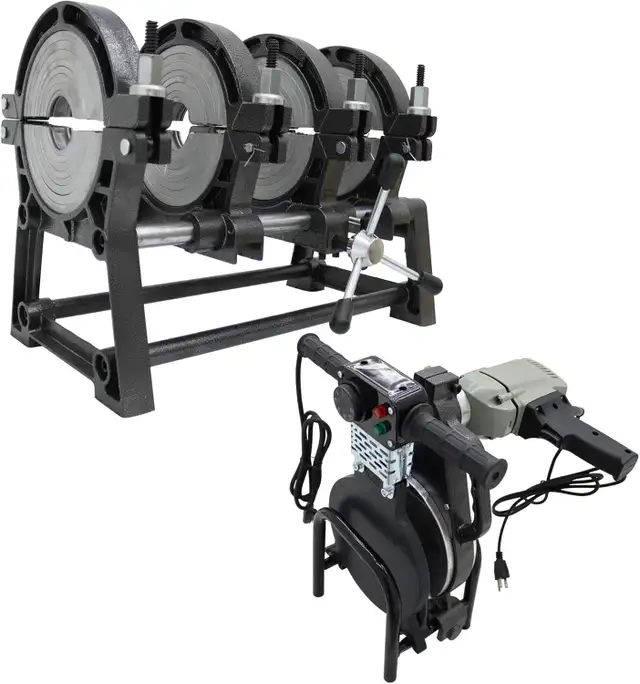

Pipe Butt Fusion Welding Machine Manually Operated Pipe Welder Tube Butt Fusion Welder for PE PB PPR PVDF Pipe 4 Rings 2.48-7.87" 145021
-
Description:
Manually operated butt fusion welding machine is suitable for PE and PB pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.

Advantage:
1.Widen and thickened clamp, more stable during welding.
2.Lengthened and thickened frame, better bearing and more stable.
3.Rotate the hand wheel to adjust the clamping distance, quickly and conveniently.
4.The support of heating plate and milling cutter is provided as a bonus. After use, the heating plate can be placed to prevent burns.
5.With automatic pressure maintaining device, welding is more convenient without holding hands.
6.Milling cutter adopts high power motor, cutting more smoothly.Thickened anti sticking heating plate, durable.

Specifications:
Model No. 2.48-7.87 "(63-200MM) four rings manual
Materials Aluminum alloy casting, 45# steel
Welding level(Φ, mm)
Outer dia

63mm(2.48 "), 75mm(2.48 "), 90mm (3.54 "), 110mm (4.33 "), 125mm (4.92 "), 140mm (5.51 "), 160mm (6.30 "), 180 mm (7.09 "), 200mm(7.87 ")
Docking deviation ≤0.3mm
Power of Heater 2.5KW/110V
Power of Milling Cutter 1.1KW/110V
Working temperature 300℃
Temperature deviation ±5℃
Environment temperature -5℃-40℃
Time required to reach soldering temperature <20min
Materials can be welded PE PPR PB PVDF
Weight: 88.7LB(40.3kg)
Package Size: 24*15.5*18"(61*39*46cm)


Details:
01 Widen and thickened clap, more stable during welding.
02 Lengthened and thickened frame, better bearing and more stable.
03 Hand wheel, easy to adjust the distance between clamps.
04 The support of the heating plate and milling cutter can be placed after use to prevent scalding.
05 Carbon steel bolts are more tightly connected.
06 With automatic pressure maining device, welding is more convenient without holding hands.
07 Thickened anti sticking heating plate, durable.
08 With high-power motor,the cutting is more smooth and the welding is more convenient.

Item Included: 145021
1*Butt Fushion Welding Machine
