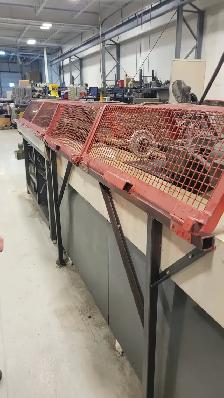

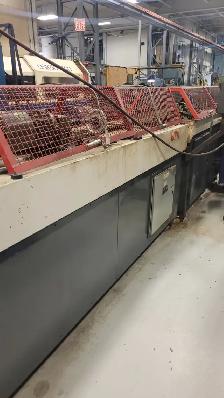

Horizontal Power Assist Tube Honing Machine

make Sunnen Guspro

model Path-6

year 2007

8 foot capacity

6" diameter

equipped with large quantity of sunnen tooling and holders

Spindle Power (all models):

 3 HP standard

 Higher horsepower available

Inside Diameter Range:

 25 mm to 482.6 mm (1.0 in to 19 in)*

*contingent on application

Stroker Motor: 1.5 HP gear motor

Stroke Speeds: Up to 120 fpm

Work piece Fixturing: (1.2 in – 12 in) range

 Special fixturing up to 22” range

Control System: Joystick control

Honing Fluid System:

37,9 liters/min (10gal/min) flow rate

Open impeller 0,187 kW (1/4hp) supply pump

Manual flow adjustment valves

Manual start of coolant

Filtration System:

Optional magnetic separator

Optional cartridge type filter

Optional paper bed filtration

Other systems available upon request

Power Requirements:

208/230 3ph, 60hz

Other voltages require transformer

Optional Equipment:

Order the following components separately based upon your applications:

Hone Head Modules

Adapter Sets

Drive & Feed Extensions

Stone Holders

mark ross 514-944-6048
