Item number: 057041

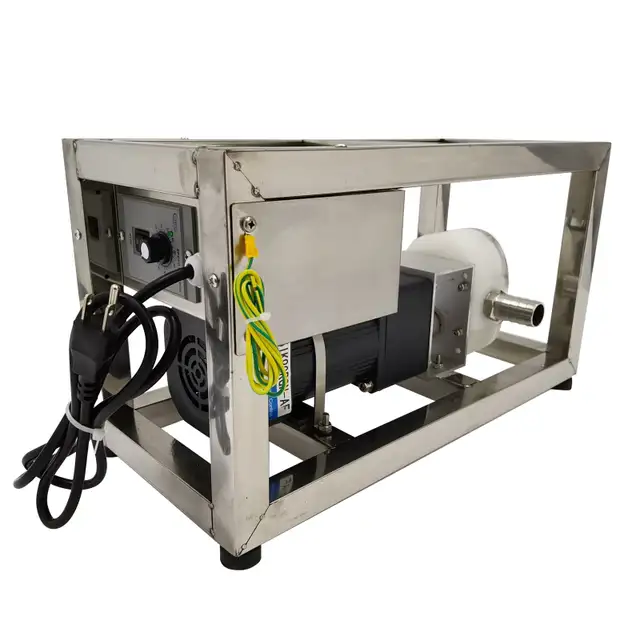

Electric Viscous Liquid Transfer Pump Multi-Functional Liquid Cam Rotor Pump Honey Oil Gear Pump for High Viscosity Fluids 110V 90W 057041

Product Overview
This pump is a low-speed and low-pressure gear pump for filling or conveying, suitable for conveying viscous liquids without particles from 1000-4000 centipoise; This product is not suitable for organic solvent transportation.
Actual test: using honey, 60 revolutions per minute speed, flow rate: 8 kilograms per minute; This series of pumps requires material filling before use, and it is not recommended to use them at speeds below 75%.

Product Parameters
Voltage: AC110V
Power: 90W
Speed: 60 RPM
Flow rate: 5.7 LMp
Suction lift: 9.8ft(3m)
Head: 16.4ft(5m)
Import and Export: 3/4"(1.9cm)
Displacement: 96mL/rev
Inner diameter of input pipe: 0.8"(21mm)
Inner diameter of ouput pipe: 0.8"(21mm)
Applicable product: Viscous, grainless liquid, such as honey, peanut butter, sesame paste, juice concentrate, etc
Package size: 17.7"*9.8"*9.8" (45cm*25cm*25cm)
Net weight/Gross weight: 19.8lbs(9kg)/22lbs(10kg)
Please note:
1. Pump stops completely before switching forward and reverse;
2. The rotation speed should not be lower than 70%.

Product Features & Advantages
a. Supporting Leg
Four rubber supporting legs at the bottom, which are non-slip, wear-resistant, good silence, can ensure the stability of the machine, and can prevent water from entering the machine from the bottom.

b. Pure Copper Motor
Adopts pure copper motor, strong power, high efficiency; Simple structure, can work stably for a long time, high reliability, low maintenance cost.
Besides, the speed can be adjusted according to the actual situation, which helps you transfer liquid more conveniently.

c. Forward & Reverse Bidirectional
The pump head adopts non-stick plastic, acid and alkali resistance, swelling resistance, suitable for all kinds of viscous food liquids. Whether in forward or reverse rotation, cam-rotor pumps maintain consistent performance and efficient delivery, ensuring accurate flow and pressure control.

d. Coupling
The coupling can effectively reduce the vibration and noise generated by the pump in the working process, thus improving the smoothness of the equipment, extending the service life of the pump and reducing maintenance costs.

- 10L/Min honey transfer pump
- Food grade pump, with 3 meters pipe
- Adjustable speed motor
- Made of stainless steel, easy to clean

Item Included: 057041
Viscous Liquid Pump *1
3m Hose *1
