Item number: 134025

Product Overview

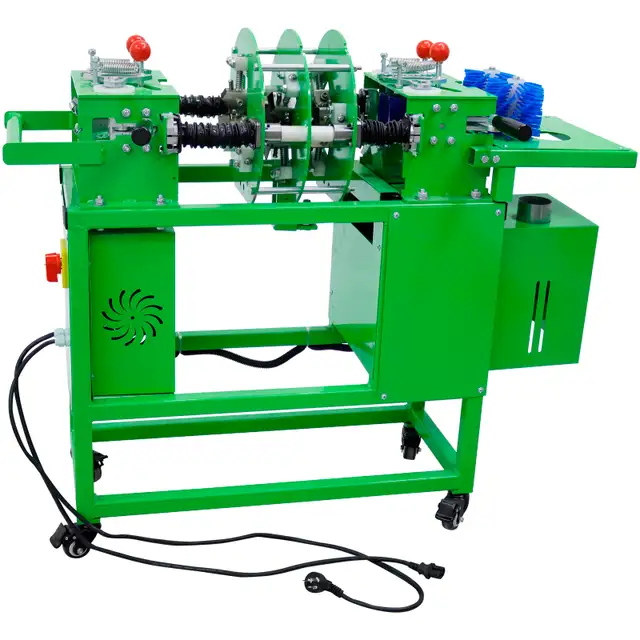

This fully automatic sugarcane peeling machine can adapt to sugarcane stalks of varying thicknesses, delivering uniform and controllable peeling thickness. It efficiently removes the tough outer skin and hard root sections while preserving the edible flesh intact. During operation, it is less prone to breakage or jamming caused by debris or fiber accumulation. Designed specifically for sugarcane processing, this high‑efficiency automatic equipment is widely suitable for fresh fruit stores, sugarcane juice workshops, agricultural wholesale markets, and other similar settings. It can quickly complete automatic peeling, replacing traditional manual peeling methods, significantly reducing labor costs and lowering the operational skill requirements.

Product Parameters
Voltage: 110V/220V/48V 50/60Hz
Power: 500W
Maximum cutting diameter: 5.5cm (2.17in)
Minimum cutting diameter: 3cm (1.18in)
Production speed: 3M/10S
Blade Material: High‑Speed Steel
Machine Material: Stainless steel
Net Weight: 70kg (154.32LBs)

Precautions
-Please connect the machine to the correct power supply according to the instructions!
-Read carefully and understand all INSTRUCTIONS before operating the machine. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
-Always keep children away from this machine, PROHIBIT children from operating the machine.
-Never touch the RUNNNING Parts or insert hardware into the machine.
-Always unplug the machine when assembling or disassembling the unit.
-Never insert hands inside the inlet, and use a food pusher when the cane is rolled into the feed inlet if necessary.
-Press the On/Off switch once to turn on or turn off the machine. Pressing the buttons for multiple times may damage the machine.
-Don't insert anything except the cane, and failure to follow this rule will damage the machine.
-Moisture of the machine during transportation may cause some internal parts to rust, which will not affect the use.

Please Note:
The automatic sugarcane peeling machine can peel the sugarcane cleanly at one time, no matter the thickness, curvature, size, length, thickness of the sugarcane.
The machine blade is made of high speed steel, which ensures that it can work continuously for a long time.
It can be used by plugging in electricity, making it convenient and fast.
Each machine is tested for sugar cane peeling.
Pay attention to safety when using the machine.
Do not extend your hand while the machine is working.
When the machine starts peeling, the cane needs to be pushed through the inlet.
When the cane is halfway through peeling, the outlet part of the cane needs tension to assist the cane in peeling smoothly.

It takes about 10 seconds to process a cane.

Dual Cleaning Brushes
Equipped with two sets of blue nylon brush rollers, which quickly remove residual debris and fiber from the sugarcane surface after peeling. The bristles are flexible and wear‑resistant, ensuring effective cleaning without damaging the cane flesh, improving both the appearance and taste of the finished product.
Peeling Mechanism
Adopts a spring‑tensioned transmission structure with multiple blade sets and rollers, which automatically adapts to different sugarcane thicknesses, closely conforming to the cane surface for peeling. The green protective cover isolates moving parts for safer operation.
Cooling Vents
Spiral cooling vents on the side of the body efficiently dissipate heat generated by the motor during operation, preventing overheating during prolonged use, ensuring stable performance, and extending the machine's service life.
Sugarcane Feed Clamp
Features a spring‑tensioned adjustable structure with a red adjustment handle, which automatically adapts to different thicknesses of sugarcane, closely conforming to the cane surface to ensure stable feeding without slipping.
Power Transformer
Includes a 110V to 220V power transformer, supporting dual‑voltage adaptation to meet power supply requirements in different regions. Equipped with dual protection features for stable power supply and overload protection, ensuring safe equipment operation.
220V/24V One‑Touch Switching
This is a 220V/24V voltage selector switch that allows quick switching of the power supply voltage during equipment operation, adapting to the power requirements of different working modules.
Swivel Casters
Lockable swivel casters provide 360° flexible steering. The brake function locks the body in place during operation for improved stability, while also allowing quick movement of the equipment between workshops or stalls.

Operating Instructions
1. Turn on the power switch and confirm that the blade is operating normally (without abnormal noise).
2. Hold the sugarcane with one hand, align one end with the feeding inlet, and gently feed it into inlet. (There is no need to push the crane hard, and the electric roller will automatically drive the sugarcane to move forward.)
3. Observe the discharge outlet. Once the head of the sugarcane has emerged, catch it with the other hand at the discharge outlet to prevent the sugarcane from falling off.
4. After the sugarcane has completely passed through the machine, turn off the power switch and take out the peeled sugarcane.

Item Included (134025)
Electric Sugar Cane Peeler Auto Sugarcane Peeling Machine *1
